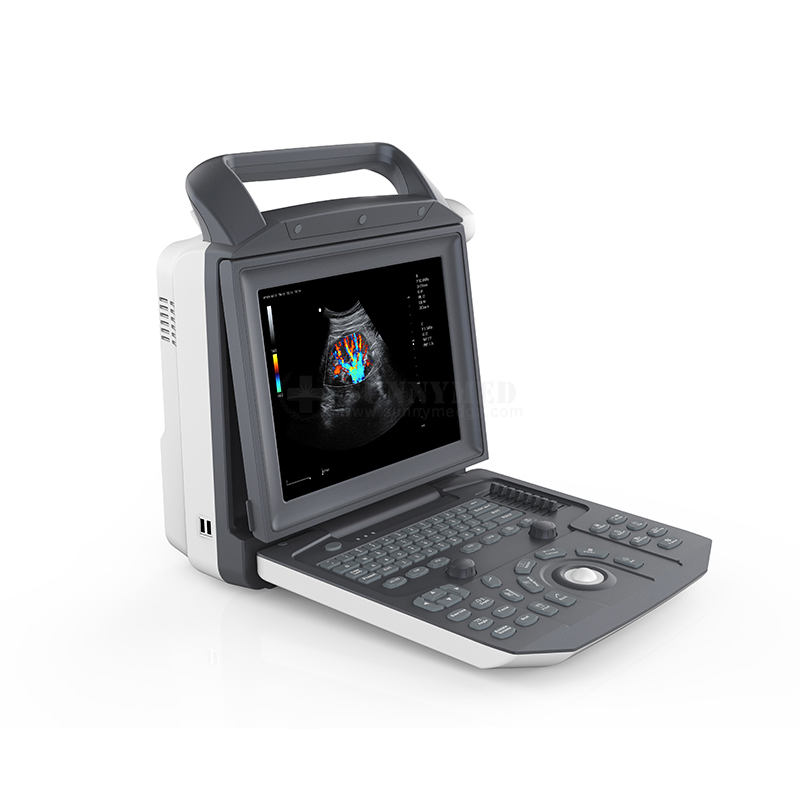

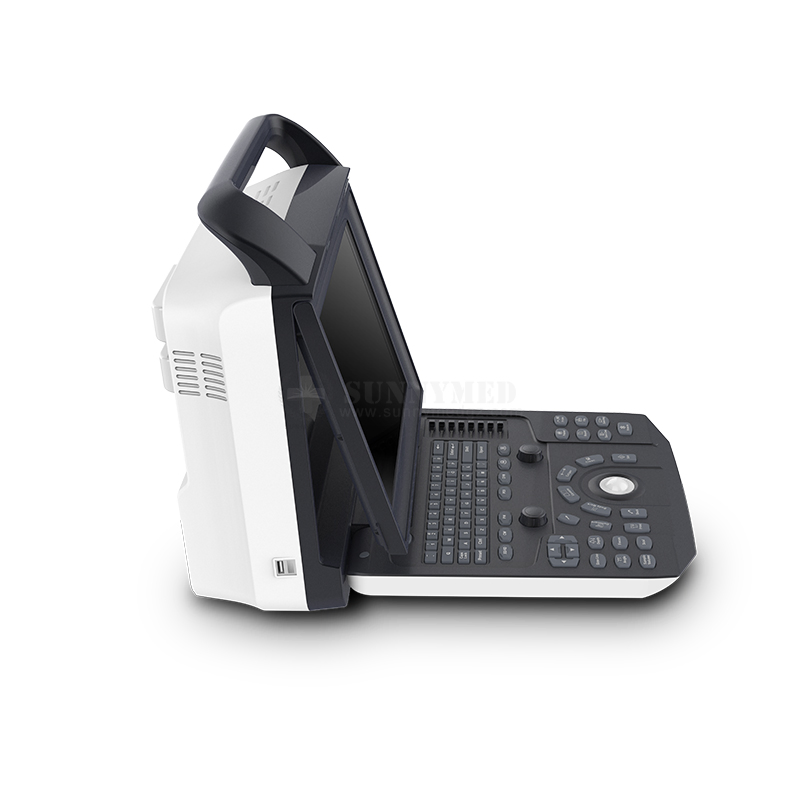

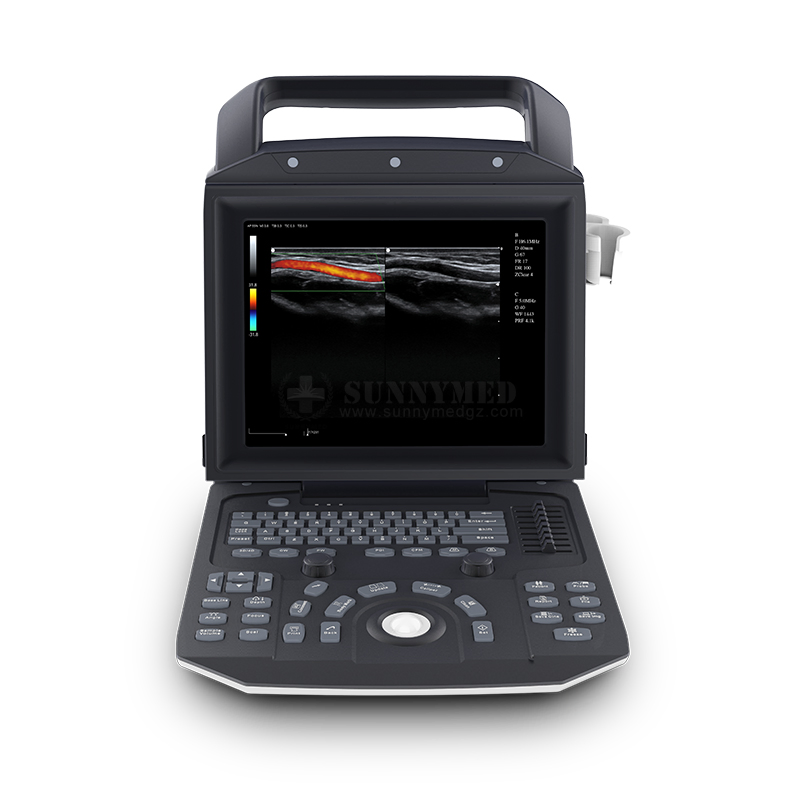

Sya-M5 3D 4D Color Doppler Laptop Cardiac Ultrasound System

1 / 5

Sya-M5 3D 4D Color Doppler Laptop Cardiac Ultrasound System

Customization:	Available
Certification:	CE
Warranty:	1 Year

Send Inquiry

Product Description

SYA-M5 3D 4D Color Doppler Laptop Cardiac Ultrasound System

Basic Specifications

Model NO.

SYA-M5

Material

Metal

Product Name

Ultrasonography Machine

TGC

8 Segment Adjustable

Monitor

12 Inches, High Definition LED

Gain

0-100, Step 2 Visible Adjustable

Pseudo Color

36 Kinds, Visible and Adjustable

Data Interface

Video, VGA, Dicom3.0, USB, Printer Port

Storage Capacity

500GB

Package

Carton Box

Production Capacity

200 Set/Month

Product Performance

M5 provides remarkable performance in Abdomen, Gynecology, Obstetric, Cardiology, Small parts (Breast, Testes, Thyroid, etc.), Urology, Musculoskeletal and Peripheral vascular. A variety of imaging modes brings a comprehensive clinical application.

Imaging Modes: B Steer, CW, EFOV, PDI, DPDI
Advanced Functions: Auto IMT, TSI, THI, SRI, SCI, FCI, Biopsy function
Display: 12.1″ High definition LED monitor, 0-90 degree adjustable angle
Support local and global amplification
Support PW auto trace and auto calculation
Preposed USB ports, supporting multi-data transmission
Dual Live and Multi-synchronization technologies
Q Save - parameter saving/presetting

System Configuration & Specifications
Monitor	12.1″ High definition LED monitor, 0-90 degree adjustable
Storage	500GB large storage capacity
Image Mode	B, B Steer, 2B/4B, M, B/M, CDFI, PDI, CM, PW, AMM, CW, TDI (TVI, TVD, TVM, TEI), Panoramic, Color Panoramic, Trapezoidal, 3D/4D.
Clinical Applications	Abdomen, Cardiac, Obstetrics, Gynecology, Urology, Pediatric, Small Parts, Vascular, Superficial, Orthopedics, MSK, Nerve
Imaging Technology	Extended Imaging (EFov), Tissue Specific Imaging (TSI), Tissue Harmonic Imaging (THI), Speckle Reduction Imaging (SRI), Spatial Composite Imaging (SCI), Frequency Composite Imaging (FCI), B/C/D Chromatic Imaging
Standard Configuration	Main unit M5, Convex transducer 3C5PB, Lithium Battery 2600mAh
Optional Transducers	Linear (7L4PB), Transvaginal (6E1PD), Phased array (3P2PA), 4D Volume (4V4PD)

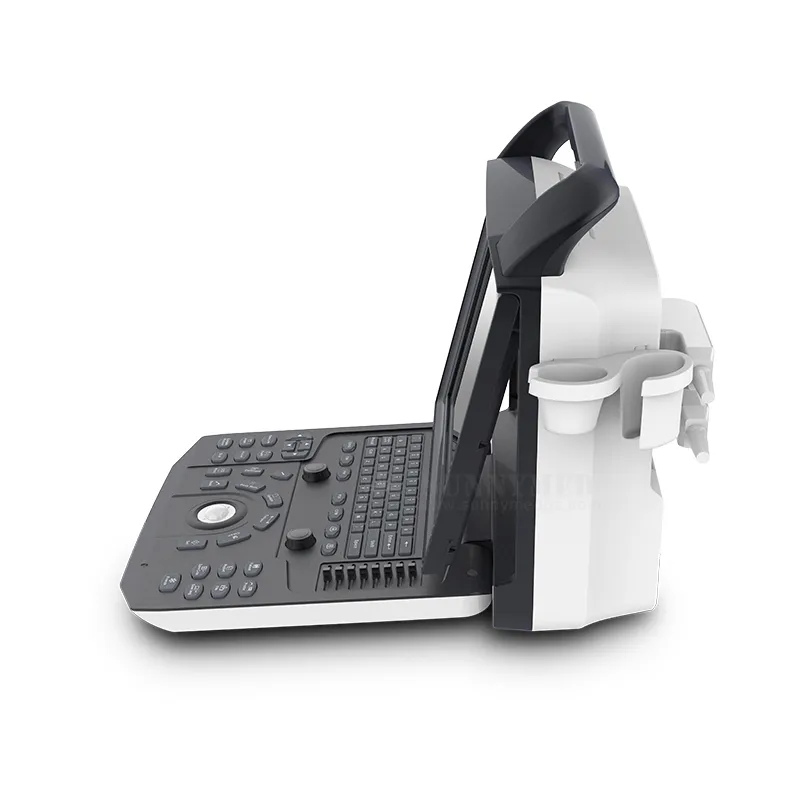

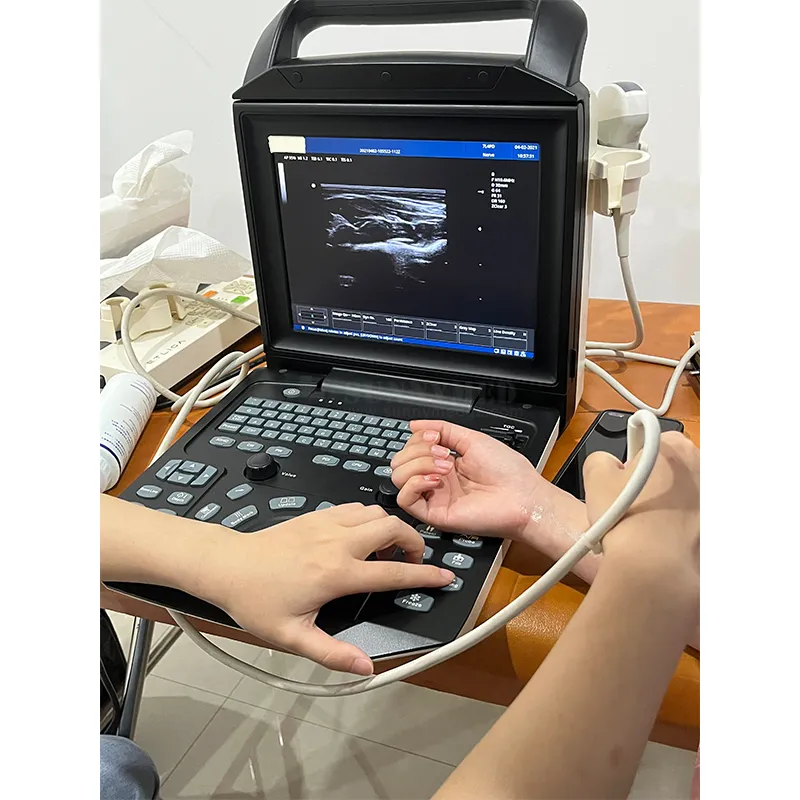

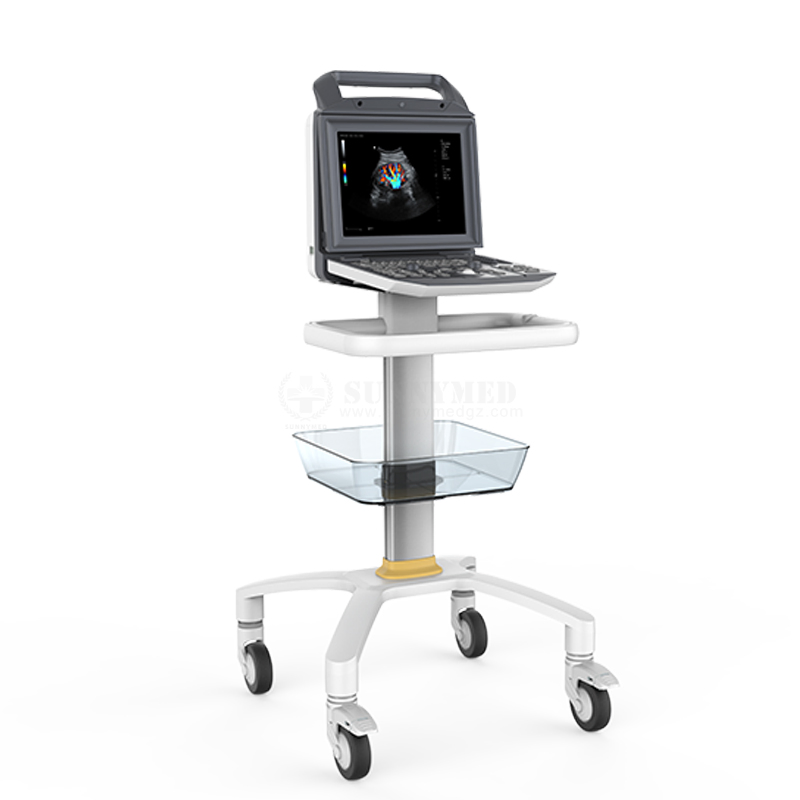

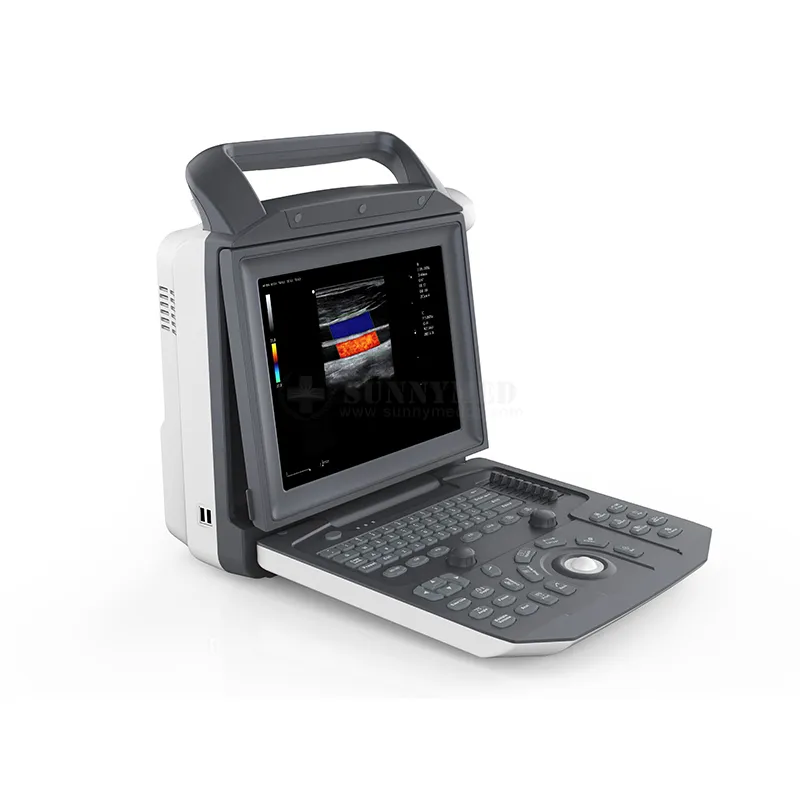

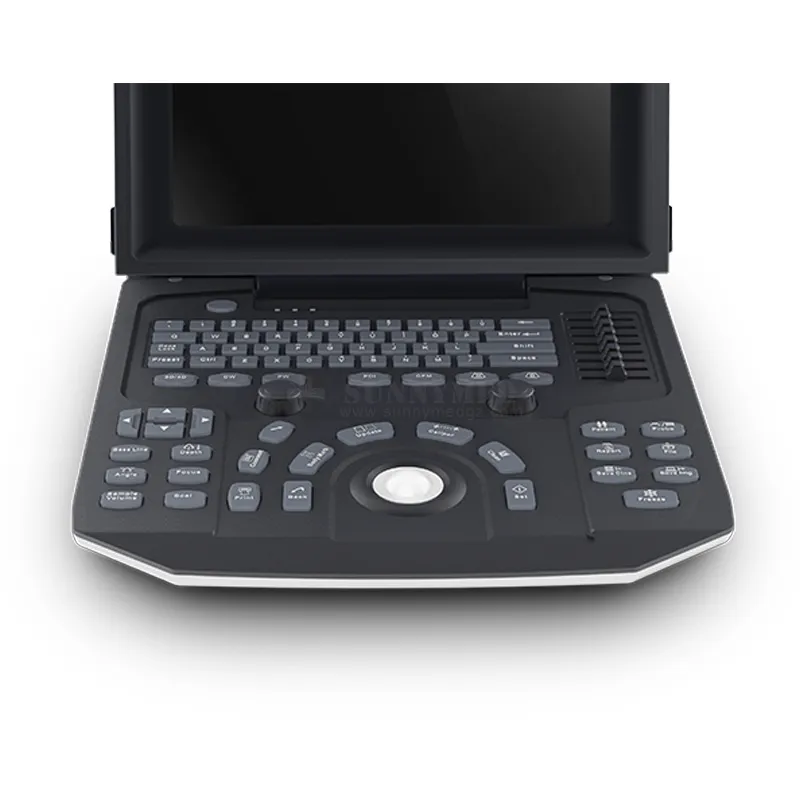

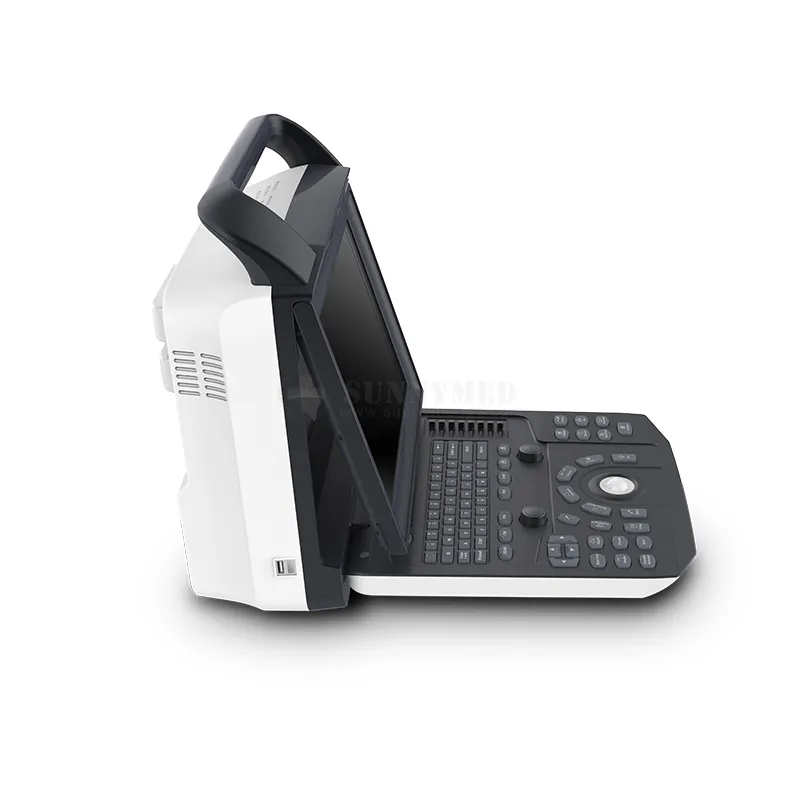

Detailed Photos

Professional Production

Frequently Asked Questions

What are the primary clinical applications for the M5 system?

The M5 is a versatile cardiac ultrasound system suitable for Abdomen, Gynecology, Obstetrics, Cardiology, Small Parts, Urology, Musculoskeletal (MSK), and Vascular imaging.

Does this laptop ultrasound support 3D and 4D imaging?

Yes, the system supports advanced imaging modes including 3D/4D, as well as CDFI, PDI, PW, and CW for comprehensive diagnostic capabilities.

How much data can be stored on the device?

The system comes equipped with a large 500GB internal storage capacity, allowing for extensive patient data and image archiving.

What is the display quality of the M5 monitor?

It features a 12.1-inch high-definition LED monitor that is adjustable from 0 to 90 degrees to provide the best viewing angle for the operator.

What transducers are included in the standard package?

The standard configuration includes the main M5 unit, one 3C5PB convex transducer, and a 2600mAh lithium battery for portable use.

Can the system be connected to medical networks?

Yes, the device supports DICOM 3.0, VGA, and USB interfaces, making it easy to transfer data to hospital management systems or print directly via the printer port.
