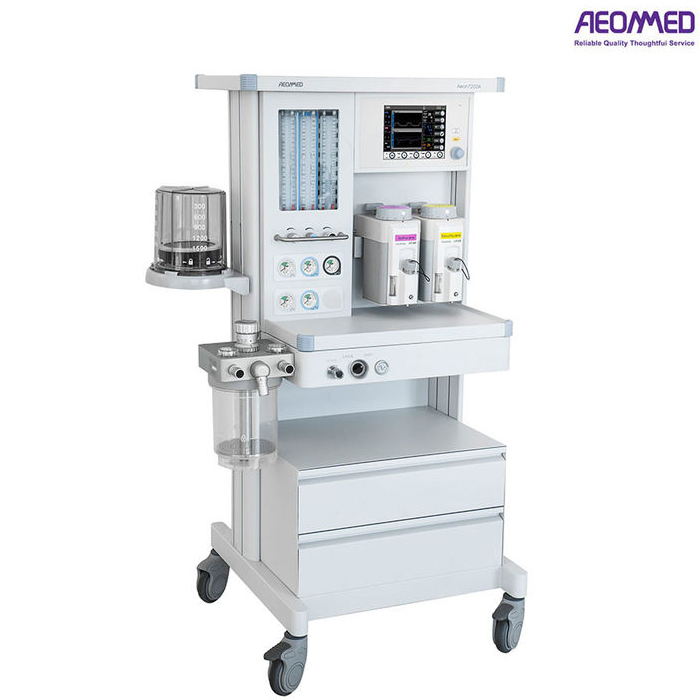

Medical Adult Pediatric Anaesthesia Systems Apparatus Anasthesia Workstation Aeon7200A

1 / 5

Medical Adult Pediatric Anaesthesia Systems Apparatus Anasthesia Workstation Aeon7200A

Type:	Anesthesia Machine
Application:	Orthopedic, Abdominal, Ent, Neurosurgery, Microsurgery, Anorectal, Urology, Burns
Material:	Plastic

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.:Aeon7200A

Feature:Reusable

Certification:ISO13485

Group:Adult

Warranty:1 Year

Transport Package:Standard Export Package

Origin:China

Production Capacity:500

🏥

Product Description

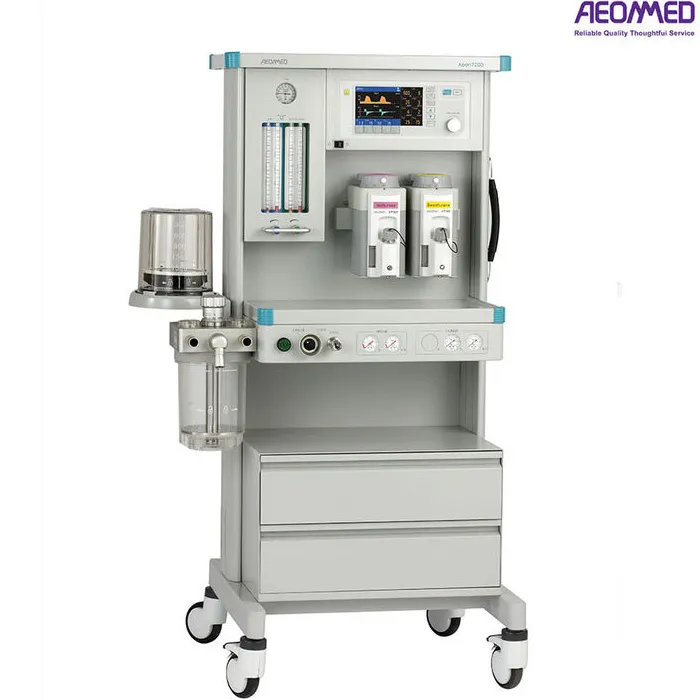

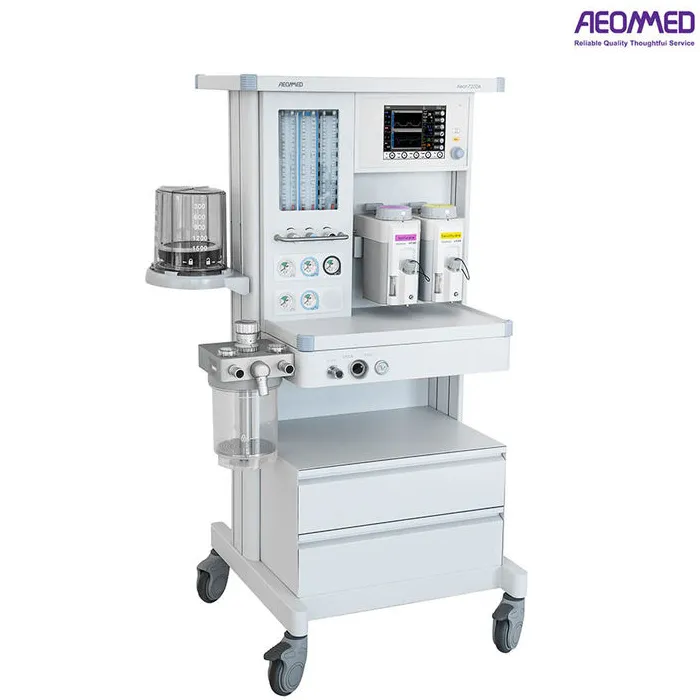

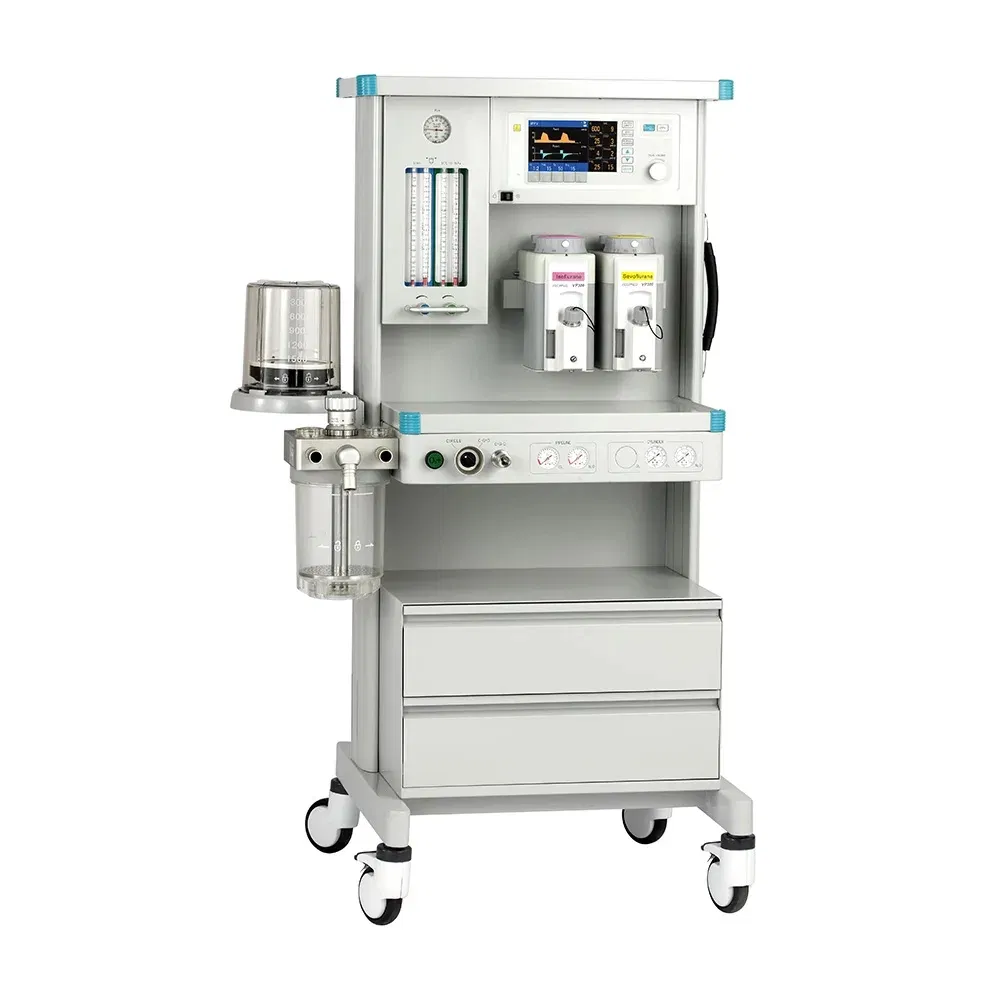

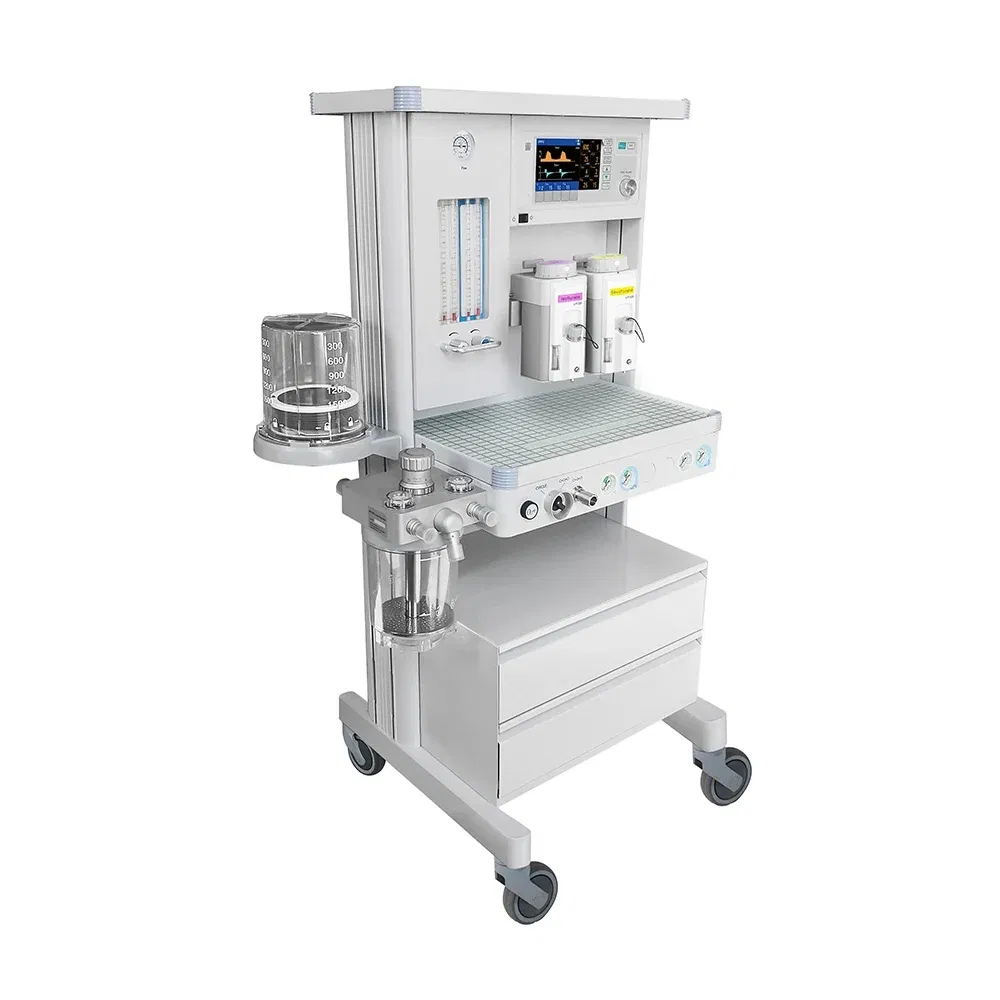

Medical Adult Pediatric Anaesthesia Systems Apparatus Workstation Aeon7200A

CE marked, meets EU clinical safety requirement
Large LCD screen, various monitoring waveform and parameters in different colors
IPPV, Pressure mode, SIMV modes can easily meet the ventilation requirement
Integrated CO2 absorption system equipped with NO WATER VAPOR COAGULATION sensor and fast-release APL valve
6-tube of flow meters for 3-gas sources meet long operation requirement
Optional AGSS provides more protection
Optional multi-gas monitoring
Optional CO2 bypass function
Spirometry loops

Aeon7200 Touch Screen Version

8.4" touch screen, various monitoring waveform and parameters in different colors
Dynamic compensation system for tidal volume
Advanced electromagnetic valve ensures accurate tidal volume and compensation
Waveforms displayed include: P-T, F-T and V-T
Solid coating and anti-dust smooth surface

⚙️

Technical Specifications

Physical & Environmental
Dimensions (WxHxD)	824x1382x680mm
Weight	110kg (including two vaporizers)
Working Temperature	+10~+40℃
Electrical Specification
Mains	100-240VA C, 50-60Hz
Battery	24VDC, minimum 90min
Power consumption	≤50W
Pneumatic Specification
Gas supply	O2, N2O: 0.28-0.6Mpa
Flowmeters	O2: 0-10L/min; N2O: 0-10L/min
O2 flush	35-75L/min
Working mode	Closed, Semi-closed, Semi-open
Ventilator Settings
Patient type	Adult, pediatric
Ventilation modes	IPPV, PCV, SIMV(flow-trigger), Manual
Tidal volume	0-1600ml
Ventilation frequency	4-100bmp
I:E ratio	2:1-1:8

🔔

Alarm & Vaporizer System

Alarms: Pressure (Paw high/low), Volumes (MV high/low, Vt high), Low O2 supply, Apnea, Power failure
Vaporizer: Support 2 vaporizers (Selectatec compatible)
Agent types: Halothane, Sevoflulrane available

📋

Available Hospital Medical Equipment

Department	Available Equipment
X-Ray Room	X-ray machine, Processor, X-ray film, Cassette, Lead clothing (gloves, glasses, apron)
Ultrasound	B/W 2D ultrasound, 2/3/4D color ultrasound
Laboratory	Chemistry analyzer, Hematology analyzer, ELISA reader, Centrifuge, Urine analyzer
Operation Room	Anesthesia machine, Ventilator, Operating lamp, Table, Patient monitor, Defibrillator, Infusion pump

❓

Frequently Asked Questions

Q: What is the tidal volume range of the Aeon7200A? A: The Aeon7200A offers a wide tidal volume range from 0 to 1600ml, making it suitable for various clinical needs.

Q: Which patient groups can use this anesthesia system? A: It is designed for both adult and pediatric patients, ensuring versatile hospital application.

Q: Does the workstation include battery backup for power failures? A: Yes, it is equipped with a 24VDC battery that provides a minimum of 90 minutes of operation during power interruptions.

Q: What ventilation modes are supported? A: The system supports multiple modes including IPPV, PCV, SIMV (flow-trigger), and Manual ventilation.

Q: Is the Aeon7200A CE certified? A: Yes, it is CE marked and meets both EU and domestic clinical safety requirements.

Q: Can the system monitor gas concentrations? A: Yes, it features optional multi-gas monitoring and an integrated CO2 absorption system with a specialized sensor.
