Oxygen Concentrator Stephan Staxel 3.5 O2 Air Supply System for Hospital Physical Therapy Equipment Self-Contained Solution for Global B2B Buyers

Type:	Oxygen Concentrator
Application:	Orthopedic, Abdominal, Ent, Neurosurgery, Microsurgery, Anorectal, Urology, Burns
Material:	Steel

Basic Information

Model NO.

CCO-Y2A

Feature

Reusable

Certification

ISO13485

Warranty

1 Year

Oxygen Flow Rate

1-10lpm

Origin

China

Production Capacity

1000units/Month

Product Description

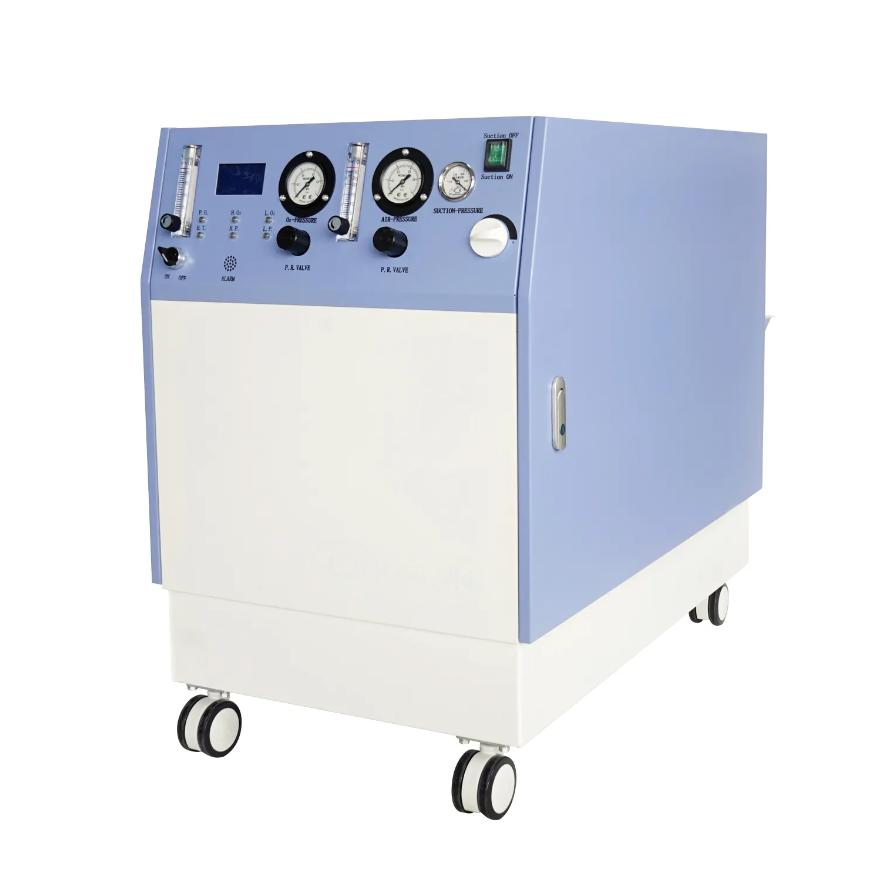

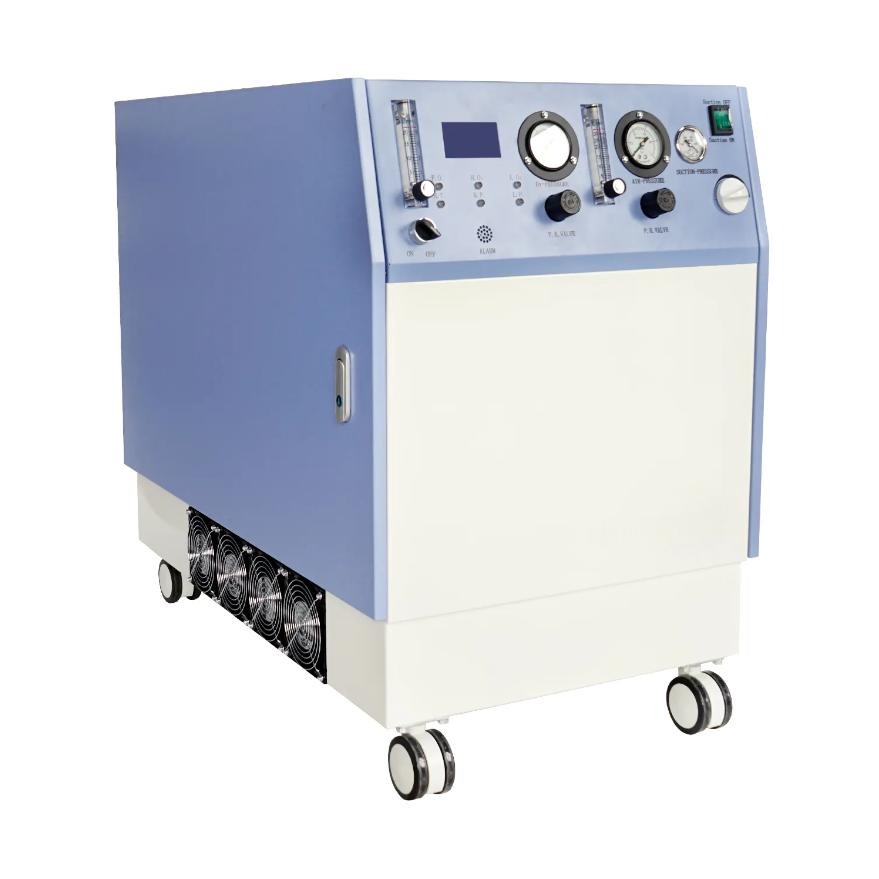

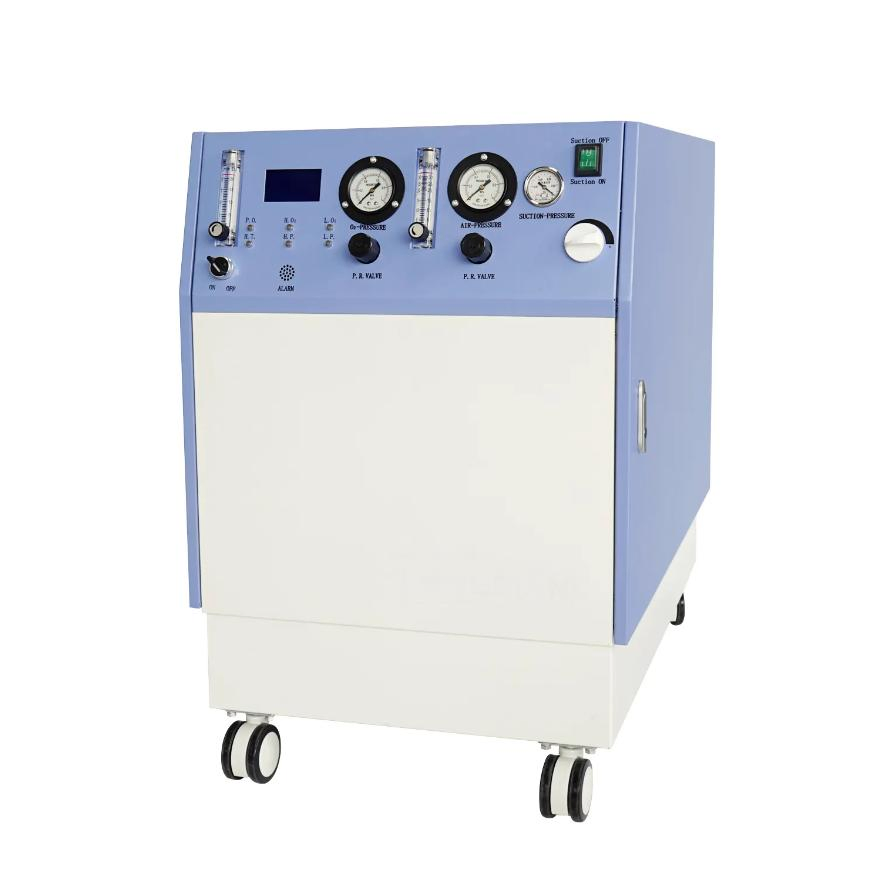

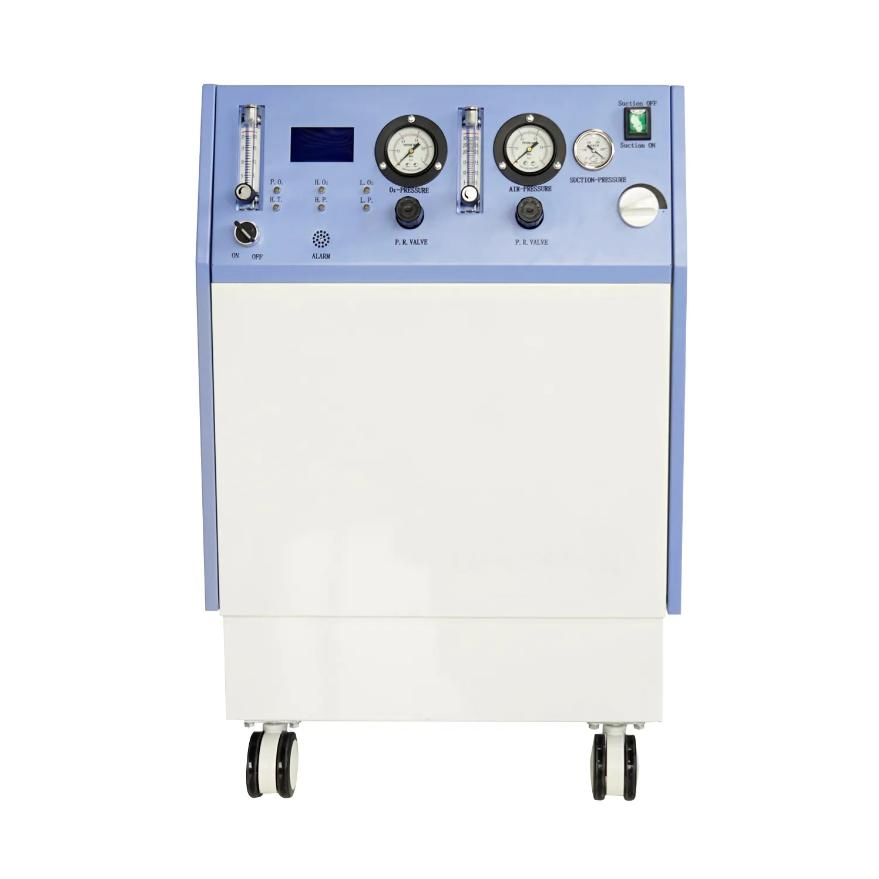

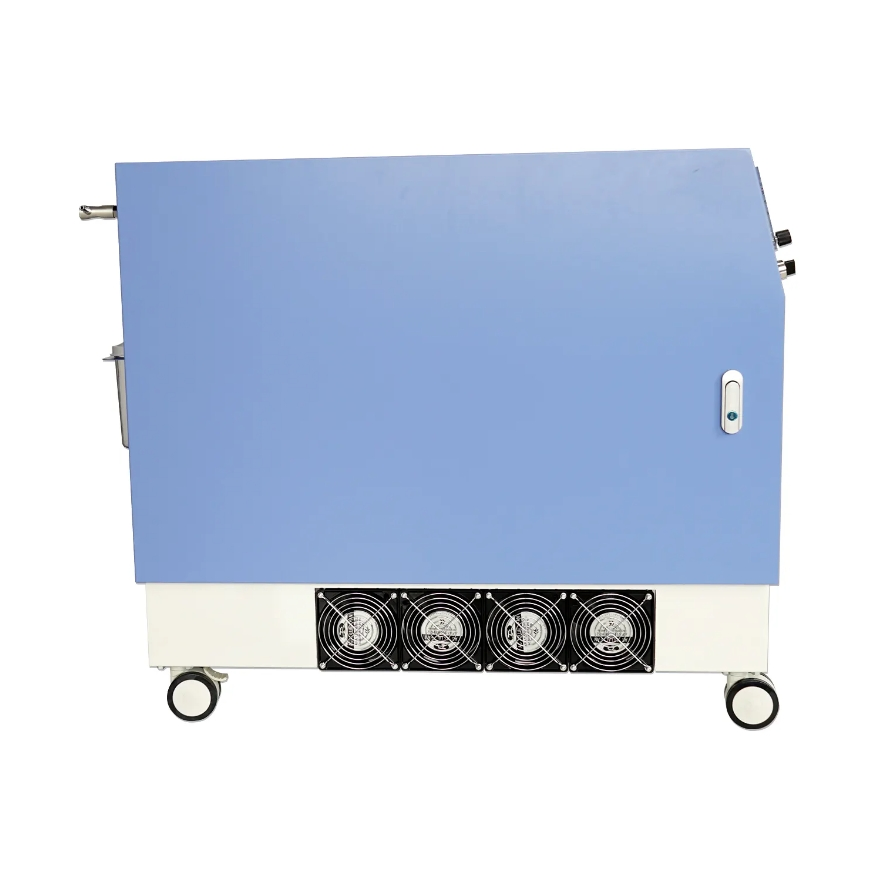

Hospital Physical Therapy Equipment Stephan Staxel 3.5 O2 Air Supply System Self-Contained Oxygen Concentrator

Model: CCO-Y2A

The self-contained oxygen concentrator offers a more advantageous alternative compared to the delivery of gas containers and centralized gas supply. It produces compressed air with a decrease in condensation temperature, featuring a roller fan and a condensed water separator with a fine filter.

Using state-of-the-art medical device technology, it guarantees a continuous supply of oxygen and compressed air thanks to its extreme reliability and the highest quality standards.

Technical Specifications

Oxygen Flow rate	1-10LPM
Oxygen purity	93±3%
Outlet pressure	0.35MPA (3.5 bar)
Air flow	1-30LPM
Vacuum	0-0.7bar
Noise level	≤60dB
Power consumption	≤1200W

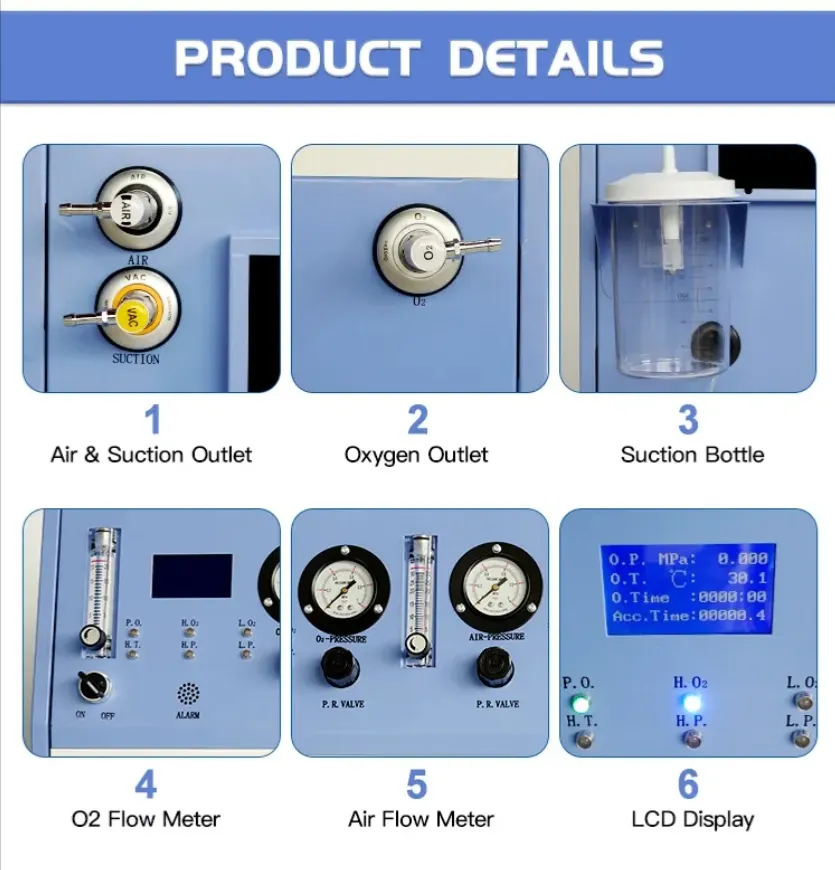

Pressure gauge	Air, Oxygen, VAC
Alarm System	Low purity, High/Low pressure, High temperature, Power failure
Dimensions (H×W×D)	800x440x660mm
Net weight	110kgs

Key Features

High oxygen performance and reliability
Low noise level operation (≤60dB)
Minimal care and maintenance, significantly reducing operating costs
Self-contained system including integrated air compressors
Advanced engineering with time-proven reliability
Rugged double metal cased design for durability

Working Principle

The principle of oxygen production is based on the adsorption effect of the molecular lattice. Air from the environment is drawn in and filtered through a double filter system, compressed, treated in a drying chamber with coolant, and then fed into one of two adsorption tanks.

Due to the adsorption effect, nitrogen is retained, while oxygen, with a small amount of inert gases, passes into the tank for subsequent use. Reservoirs work alternately. While compressed air is flowing through one tank to produce oxygen, the cleaning process starts in the other tank by venting some of the gas. This alternating work ensures continuous production of oxygen controlled by an electronic system.

One-Stop Hospital Medical Equipment Solutions

Department	Equipment List
X-Ray Room	X-ray machine, Processor, X-ray film, Cassette, Intensifying screen, Lead clothing (gloves, glasses, cap, apron, collar)
Ultrasound	B/W 2D ultrasound, 2/3/4D color ultrasound
Laboratory Room	Chemistry analyzer, Hematology analyzer, Microplate ELISA reader/washer, Centrifuge, Pipette, Water bath, Urine analyzer
Operation Room	Anesthesia machine, Ventilator, Operating lamp, Operation table, Pendant, Medical drill/saw, ECG, Patient monitor, Defibrillator, Infusion pump, Electrocoagulation, Oxygen generator, Suction device, Autoclave sterilizer

Product Gallery

Frequently Asked Questions

Q1: What is the oxygen purity level of the CCO-Y2A model? The device provides medical-grade oxygen with a purity concentration of 93±3%.

Q2: Does this system require an external central gas supply? No, it is a self-contained system that includes its own air compressors, making it ideal for facilities without centralized gas infrastructure.

Q3: What safety alarms are integrated into the device? The system includes a low purity alarm, high & low pressure alarms, a high temperature alarm, and a power failure alarm.

Q4: Can this equipment be used with anesthesia systems? Yes, it is specifically designed to supply both compressed air and oxygen to anesthesia and ventilation systems.

Q5: What is the noise level during operation? The device operates at a low noise level of ≤60dB, ensuring a quieter environment for hospital settings.

Q6: How long does it take to reach maximum oxygen concentration? The maximum oxygen concentration of 95% is typically reached within a few minutes after the device is turned on.
