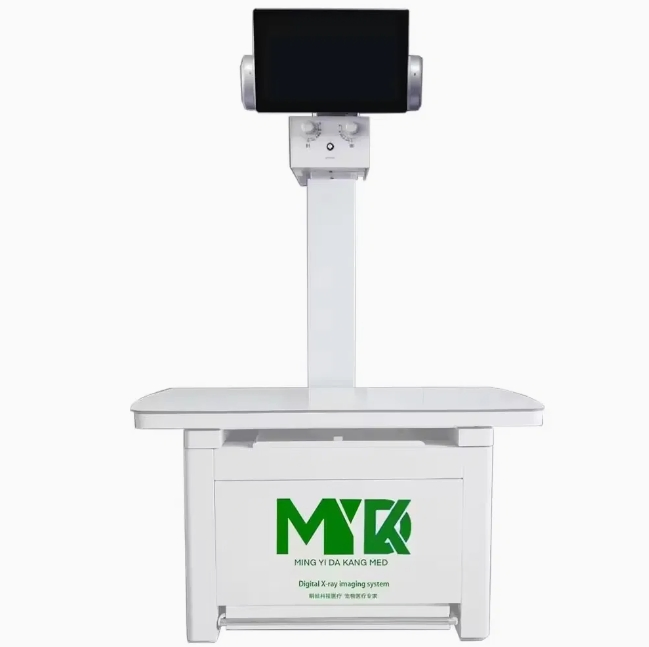

Reliable Advanced Imaging X-ray System for Enhanced Patient Care Digital X-ray

Customization:	Available
Type:	Dr Motion Imaging Veterinary Instrument New Animal
Syringe:	Dr Motion Imaging Veterinary Instrument New Animal

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.	model-3
Blood Sampling Needle	Imaging Veterinary Instrument New Animal
Breathing Pattern	Imaging Veterinary Instrument New Animal
Anesthesia Machine Control Method	Imaging Veterinary Instrument New Animal
Power Supply Voltage	Single-Phase Three Wire System 220V
Power Frequency	50Hz
Power	32kw
Maximum Output Current	400mA
Working Frequency	>300kHz
Transport Package	Wooden Box
Specification	800(W)X5000(D)X450(H)
HS Code	90221910
Production Capacity	9999

📷 Product Visualization

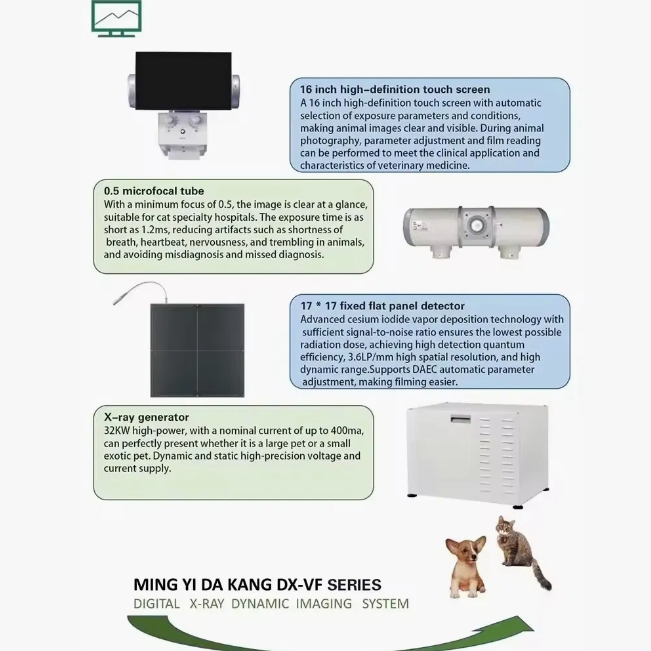

🛠️ Standard Configuration

Diagnostic X-ray high-frequency high-voltage generator (32KW)	1 unit
X-ray tube	1 unit
Beam limiter	1 unit
Photography bed	1 unit
High voltage cable	1 piece

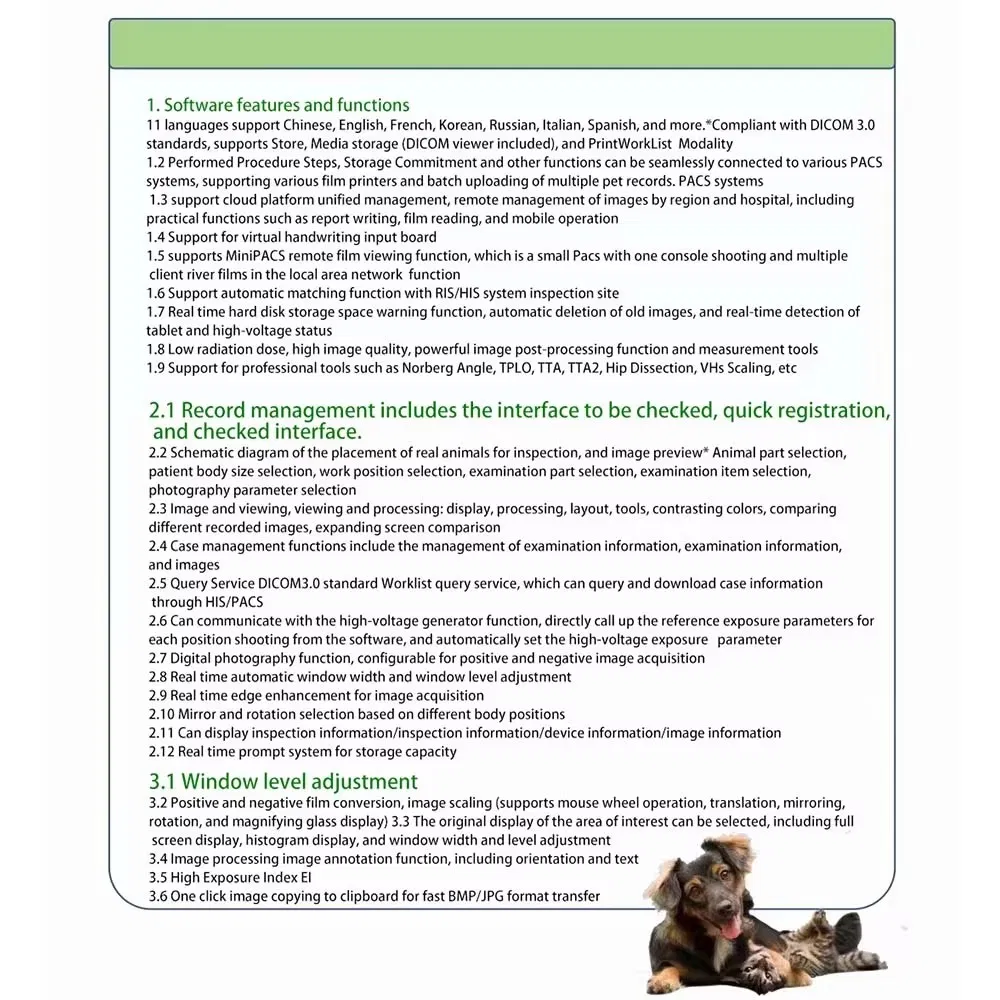

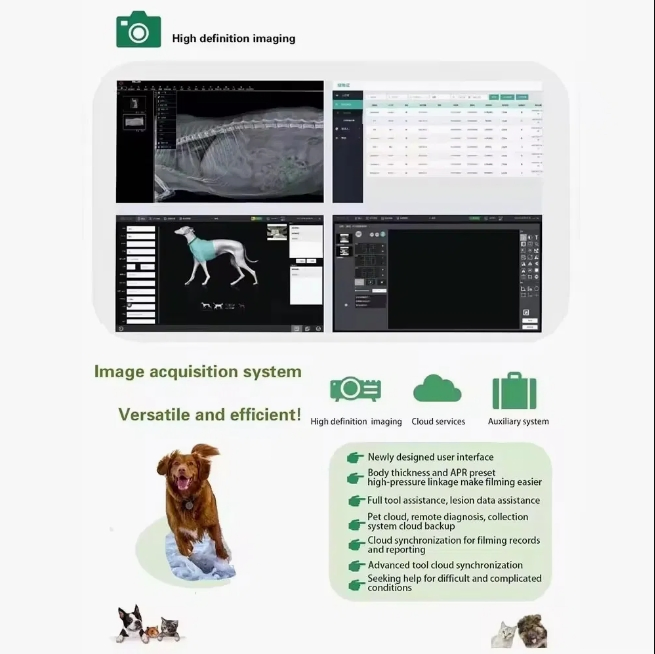

Professional Animal Collection Software	1 set
Flat panel detector	1 piece
Computer host with display	1 set
Touch screen (optional)	1 piece

🏥 Applied Range

✔

This large-field digital medical X-ray system is mainly used in orthopedics, trauma, spinal orthodontics, and radiological intervention. It supports large field of vision clinical applications such as total spine photography, double lower extremity photography, myelography, complex trauma, artificial joint replacement, and joint injury repair/reconstruction.

⚡ Performance Features

🔹

Multi-purpose Imaging: Supports conventional still photography, dynamic perspective, and point film functions. Visual dynamic imaging combined with point film effectively captures key frames and reduces repeated radiation exposure.

🔹

High Capacity: High power and high heat capacity ensure long standby times for continuous operation without the need for appointments.

🔹

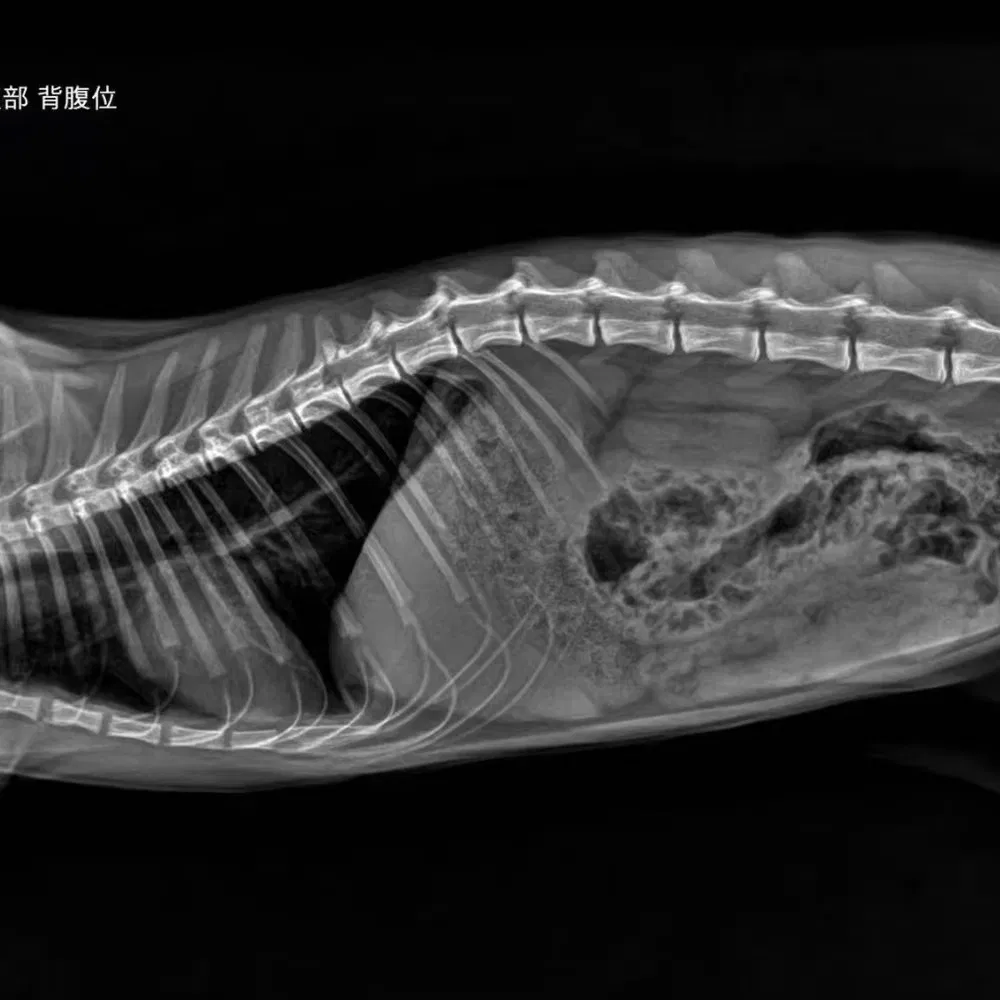

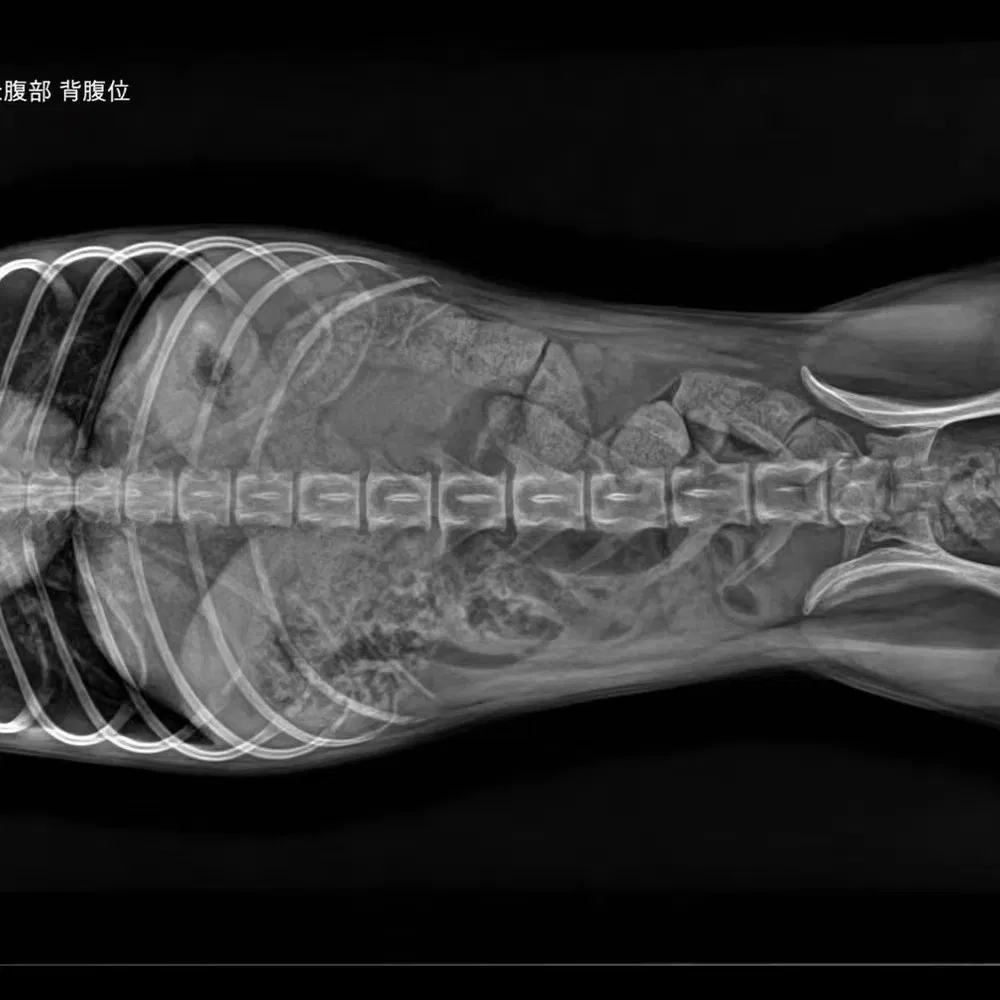

Superior Image Quality: Features a high frame rate dynamic tablet with spatial resolution up to 3.6lp/mm.

🔹

Dynamic Acquisition: High-quality dynamic flat detector acquisition at 30 frames/second to avoid missed or misdiagnosis.

🔹

Smart Control: Efficient and practical touch control system with synchronous linkage to the operation desk.

🔹

High-Frequency Inverter: 500KHZ ultra-high inverter frequency ensures high ray quality and stable image source protection.

❓ Frequently Asked Questions

Q1: What is the maximum power output of this X-ray system?

The system features a 32KW diagnostic high-frequency high-voltage generator with a maximum output current of 400mA.

Q2: Does the equipment support dynamic imaging?

Yes, it supports dynamic perspective and point film functions, allowing for visual dynamic observation of complex lesions.

Q3: What are the primary clinical applications?

It is ideal for orthopedics, spinal orthodontics, total spine photography, joint replacement, and complex trauma assessment.

Q4: What is the spatial resolution of the images?

The high frame rate dynamic tablet provides a spatial resolution of up to 3.6lp/mm for high-quality diagnostic images.

Q5: How does the system prevent misdiagnosis?

By utilizing a dynamic flat detector with 30 frames per second acquisition, the system captures smooth motion and key details to avoid missed diagnoses.

Q6: Is the system compatible with standard power supplies?

Yes, it operates on a single-phase three-wire system at 220V with a 50Hz frequency.
