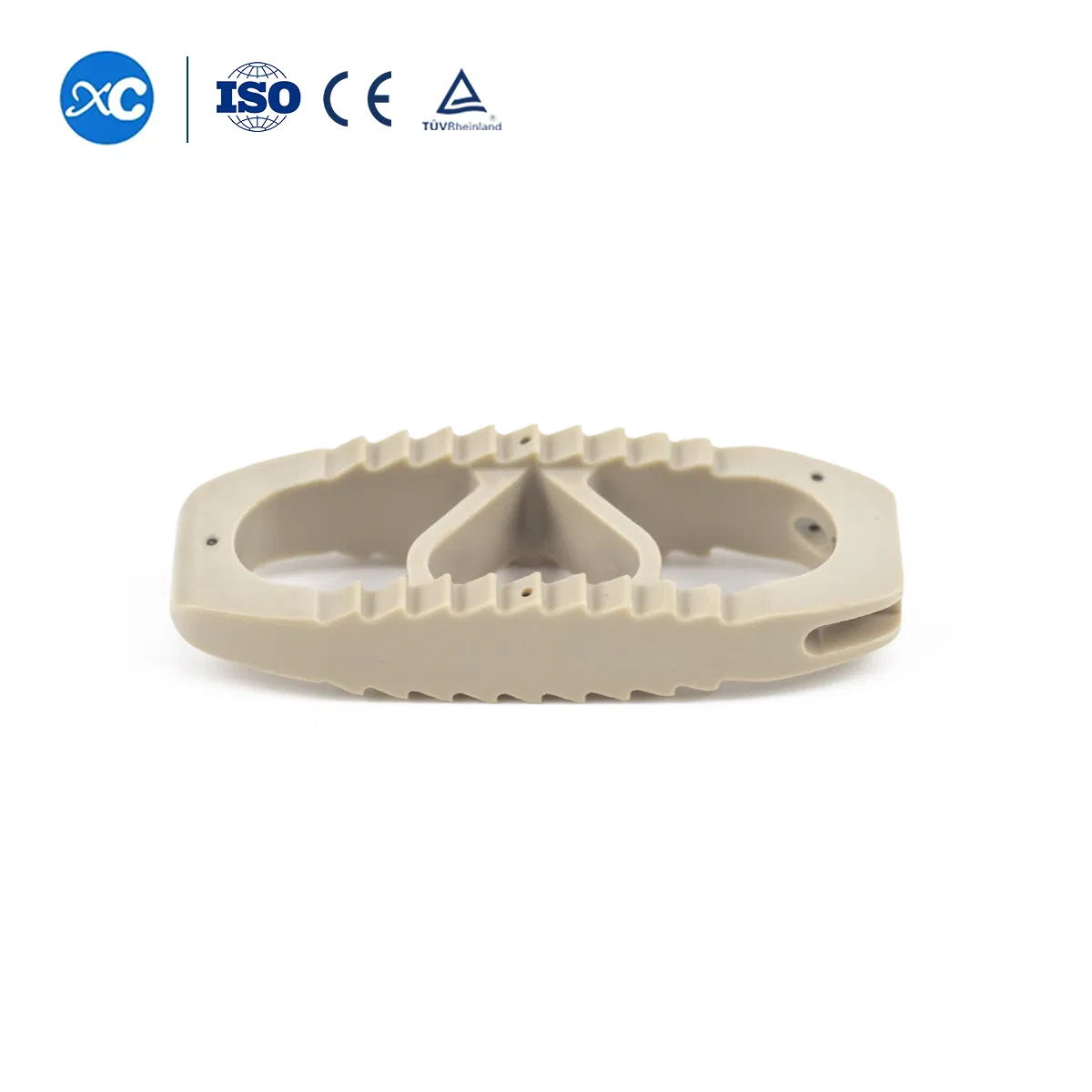

Cervical Cage Used for Cervical Fusion Spine System

1 / 5

Cervical Cage Used for Cervical Fusion Spine System

Certification:	FDA, ISO
Disinfection:	Disinfection
Color:	Yellow

Send Inquiry

Product Description

💠 Basic Information

Model NO.

Titanium Mesh Cage S06type

Application

Spine

Material

Peek

Height

9-13mm

Wide

18-26mm

Length

40-60mm

Degree

0-6°

Transport Package

Carton

Specification

14*10*26

Origin

China

Capacity

100000PCS

📝 Product Description

PEEK Cage System

The material of these Cages is biocompatible radiolucent polymer—PEEK (Polyetheretherketone), which allows clear assessment of bone fusion. This system includes cervical PEEK cage, PLIF PEEK cage, and TLIF PEEK cage.

🔹 Cervical PEEK Cage

Designed to meet different demands of anterior cervical interbody fusion procedures. The implant features a large central canal and multiple heights to suit various patient anatomies.

Anatomic shapes: Multiple variations to suit individual anatomical conditions.
Lateral windows: Designed to allow for optimized fusion.
Large central canal: Allows fusion to occur directly through the implant.
Pyramidal teeth: Provide superior resistance to implant migration.

Indications: Degenerative disc diseases, instabilities, ruptured/herniated discs, and pseudarthrosis.

🔹 PLIF (Posterior Lumbar Interbody Fusion)

Radiolucent: Features two radiographic marker pins for clear visualization.
Anatomic shape: Convex surfaces to resemble natural patient anatomy.
Multiple specifications: Offered in various sizes to accommodate individual needs.
Axial canal: Receives filling material to facilitate fusion through the cage.

🔹 TLIF (Transforaminal Lumbar Interbody Fusion)

Rails on the surface: Guide and turn the implant into the correct position.
Self-distracting nose: Allows for easy insertion into the disc space.
Radiographic marker pins: Allow visualization of the anterior and tip position.

Lumbar Pathologies: Spinal instabilities, post-discectomy syndrome, degenerative and isthmic spondylolisthesis.

📊 Technical Specifications

Product Name	Specification / Size Details
Cervical Peek Cage	4mm to 10mm heights
Cervical Peek Cage-II	4mm to 8mm heights
PLIF Peek Cage	8/10/12/14mm Heights; Lengths 22/26/32mm; Width 10mm
TLIF Peek Cage	9mm / 11mm / 13mm / 15mm Height
TLIF Peek Cage-II	Heights 7-17mm; Lengths 28/30mm; Width 10mm
Titanium Lumbar Cage	8x10x20mm to 12x10x26mm

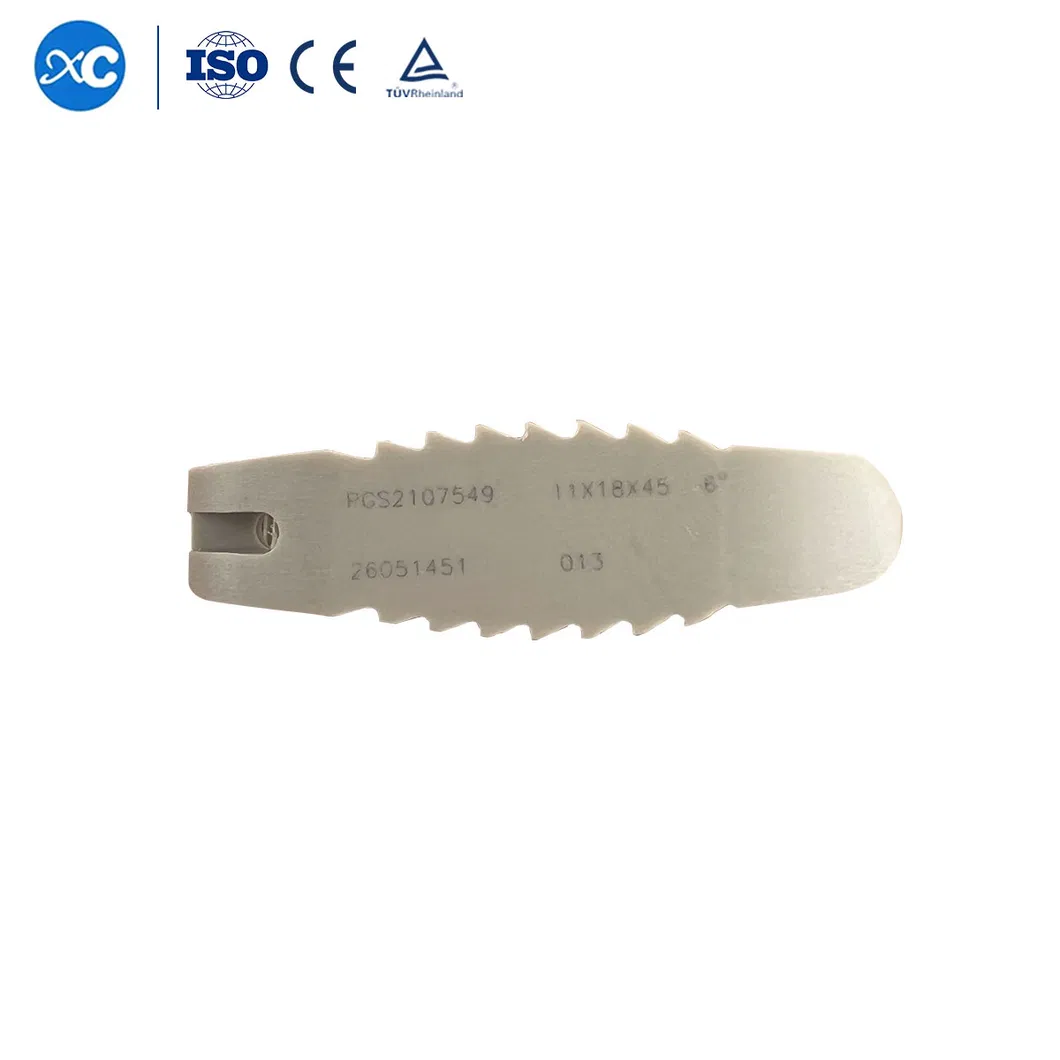

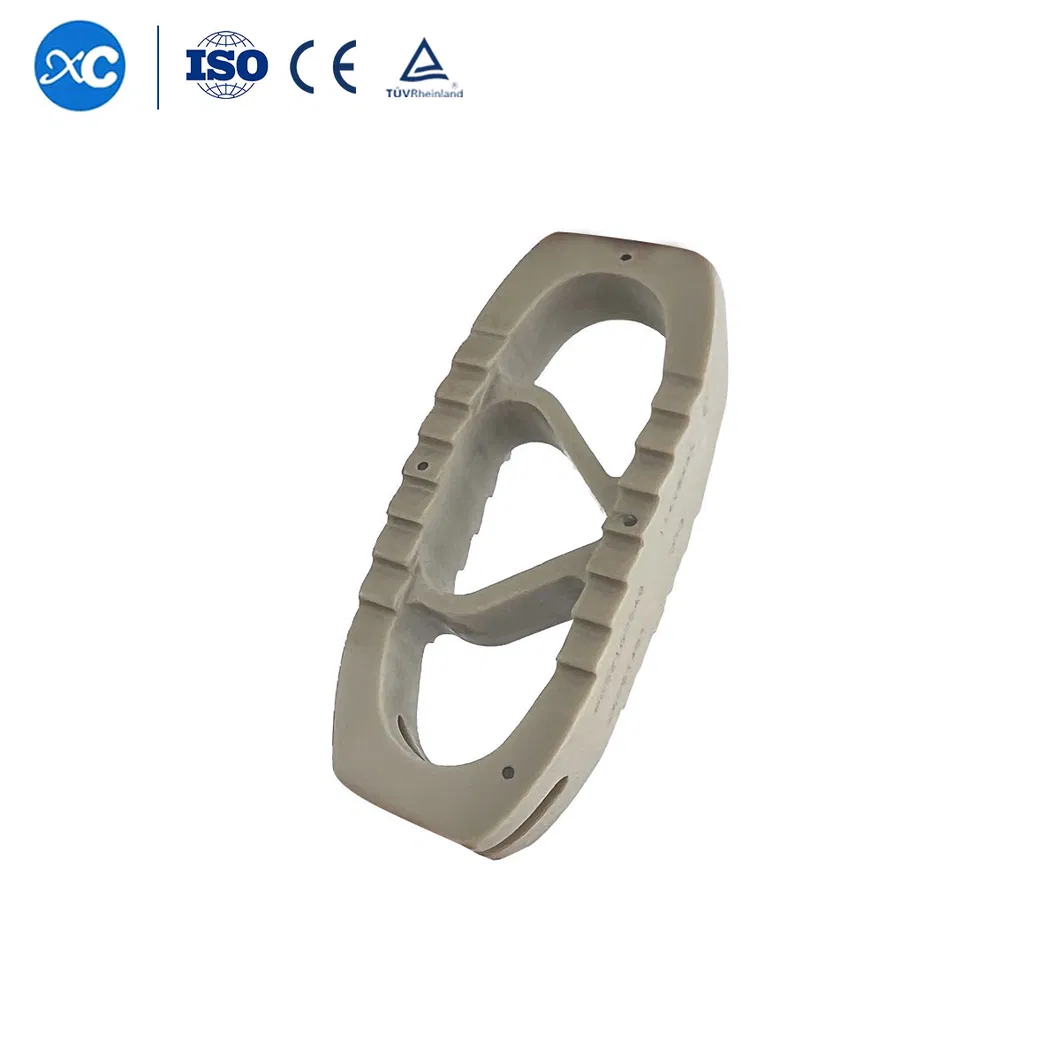

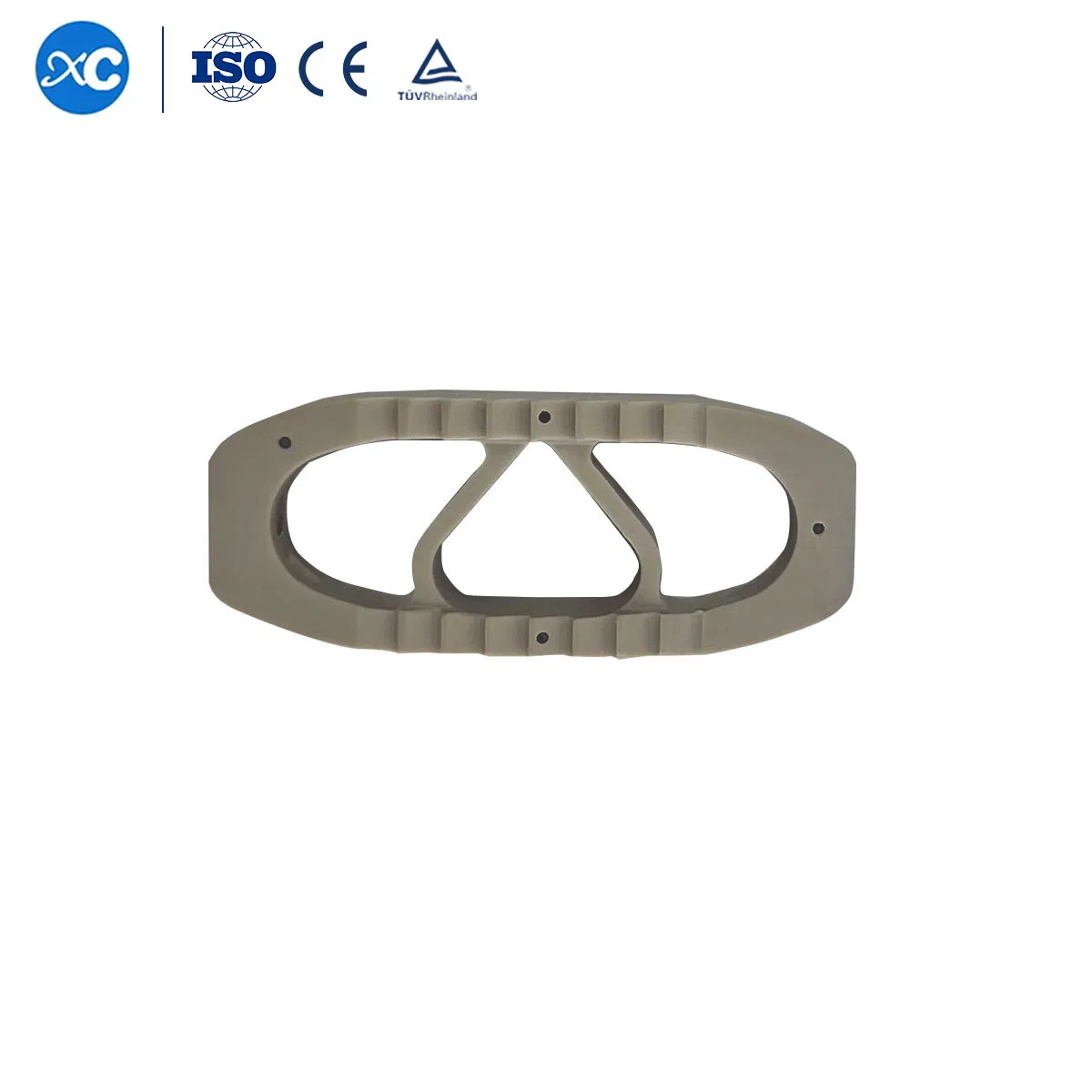

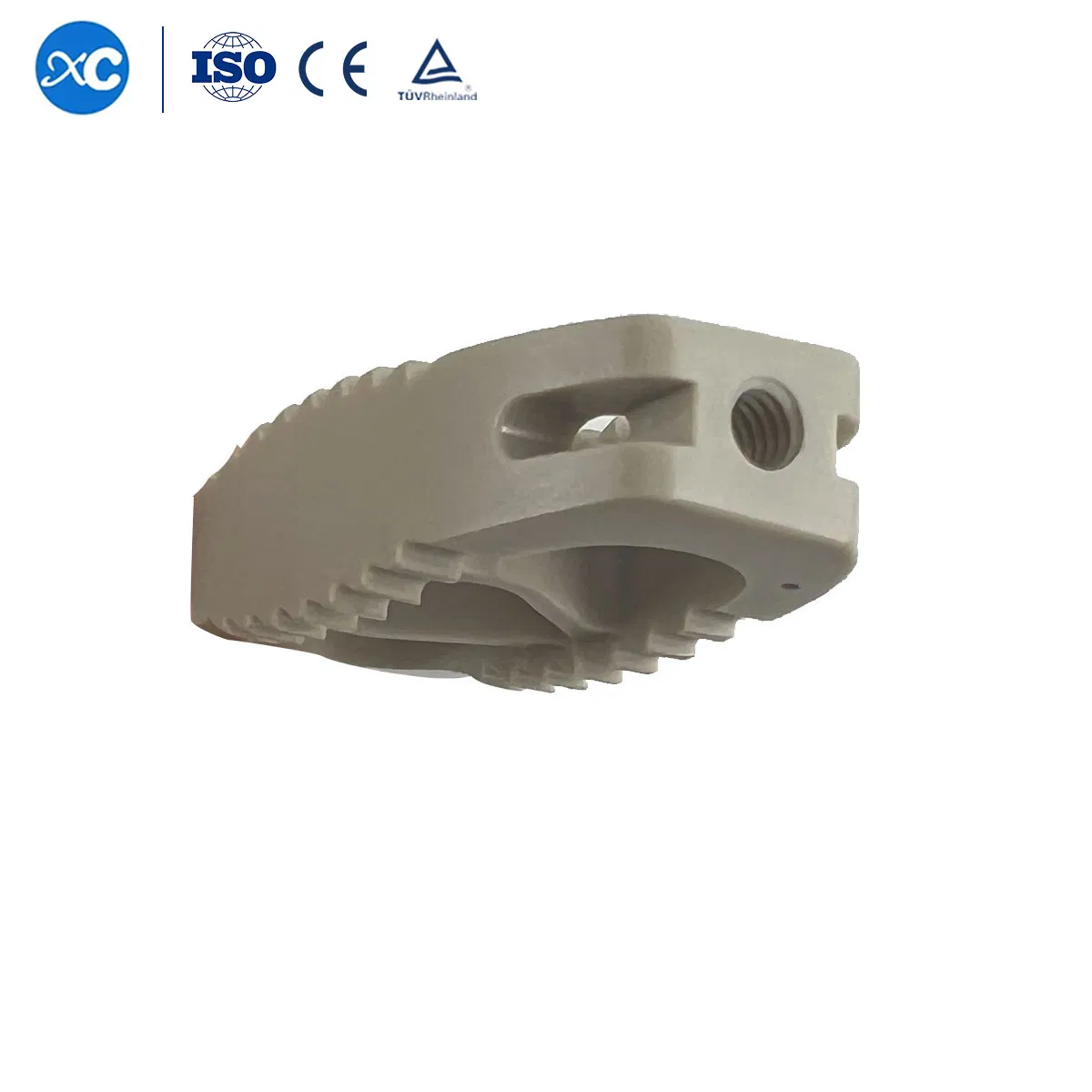

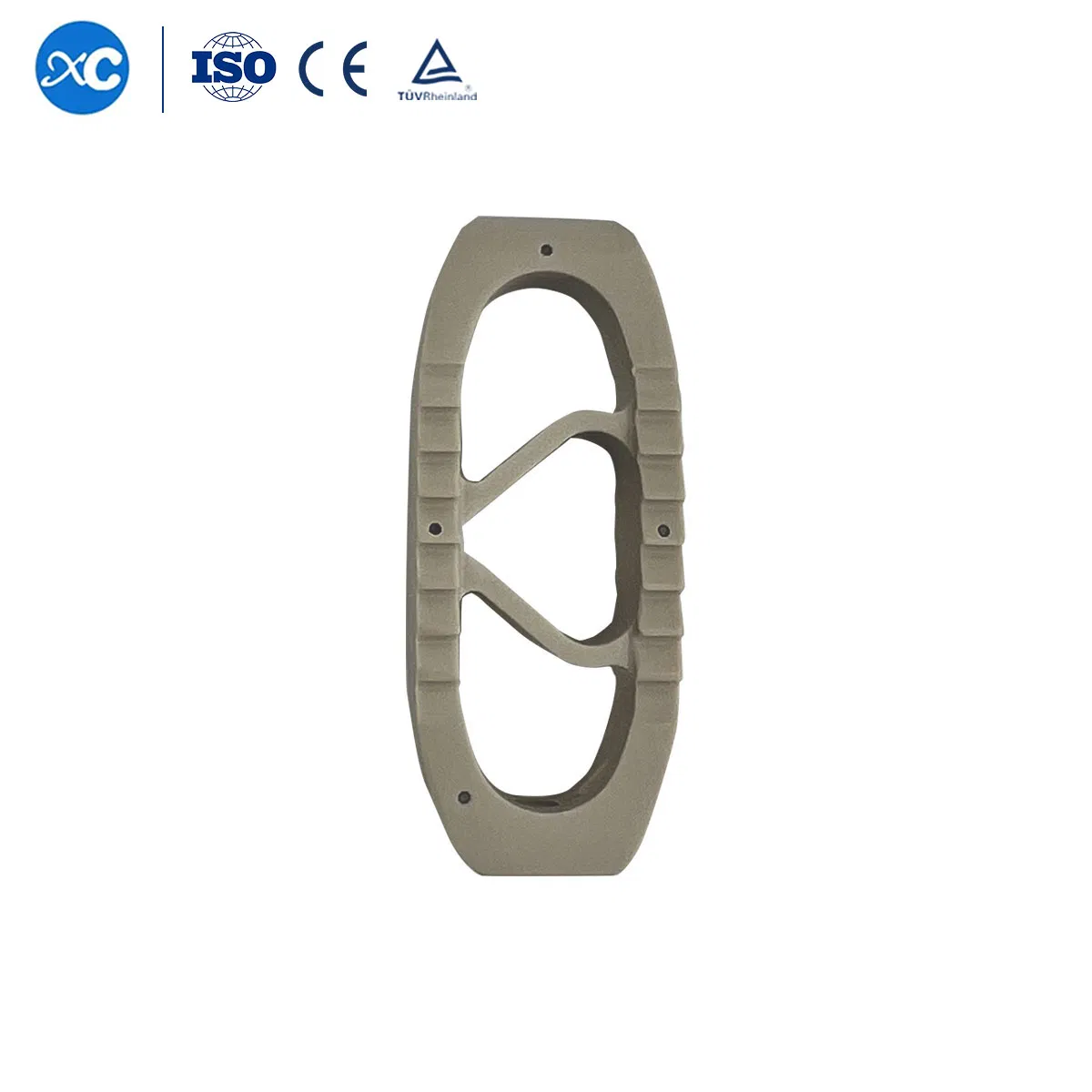

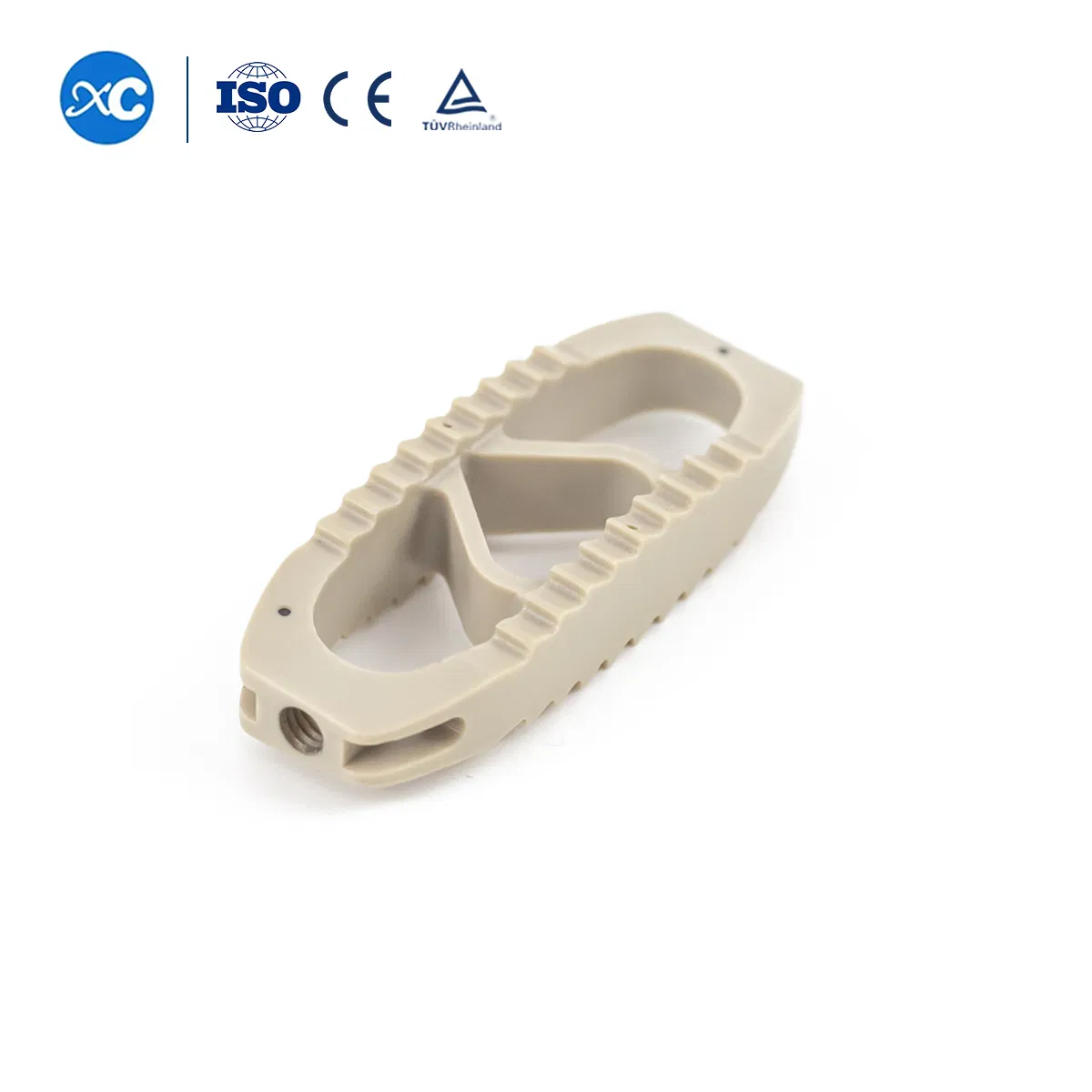

🖼️ Product Gallery

📜 Certifications

Frequently Asked Questions

What is the advantage of PEEK material in spinal cages?

PEEK is a biocompatible radiolucent polymer, which allows surgeons to clearly assess bone fusion through X-rays and imaging without the interference often caused by metal implants.

How does the cage design prevent movement after surgery?

The cages feature integrated pyramidal teeth on the surfaces, which provide strong resistance to implant migration, ensuring stable placement during the fusion process.

Are there different types of cages for different spinal procedures?

Yes, the system includes specialized designs for Cervical (anterior), PLIF (posterior lumbar), and TLIF (transforaminal lumbar) fusion procedures.

How is the correct placement verified during surgery?

Our PEEK cages are equipped with radiographic marker pins that allow precise visualization of the implant's position and orientation under fluoroscopy.

What indications are suitable for these interbody fusion cages?

Common indications include degenerative disc disease, spinal instabilities, ruptured or herniated discs, and various forms of spondylolisthesis.

What size ranges are available for these implants?

We offer a wide range of heights (from 4mm to 17mm) and various lengths and widths to accommodate different patient anatomical requirements.
