Basic Information
Model NO.XYD-SMC-10
TypeA2o Process Water Purification
MethodBiological Treatment
UsageIndustrial, Home, Agriculture, Hospital
Productivity10t/D
Weight780kg
Size442*201*200cm
ControlElectric Auto Control (PLC Siemens)
Core ComponentsPressure Vessel, Pump, Motor, PLC
Footprint33m2

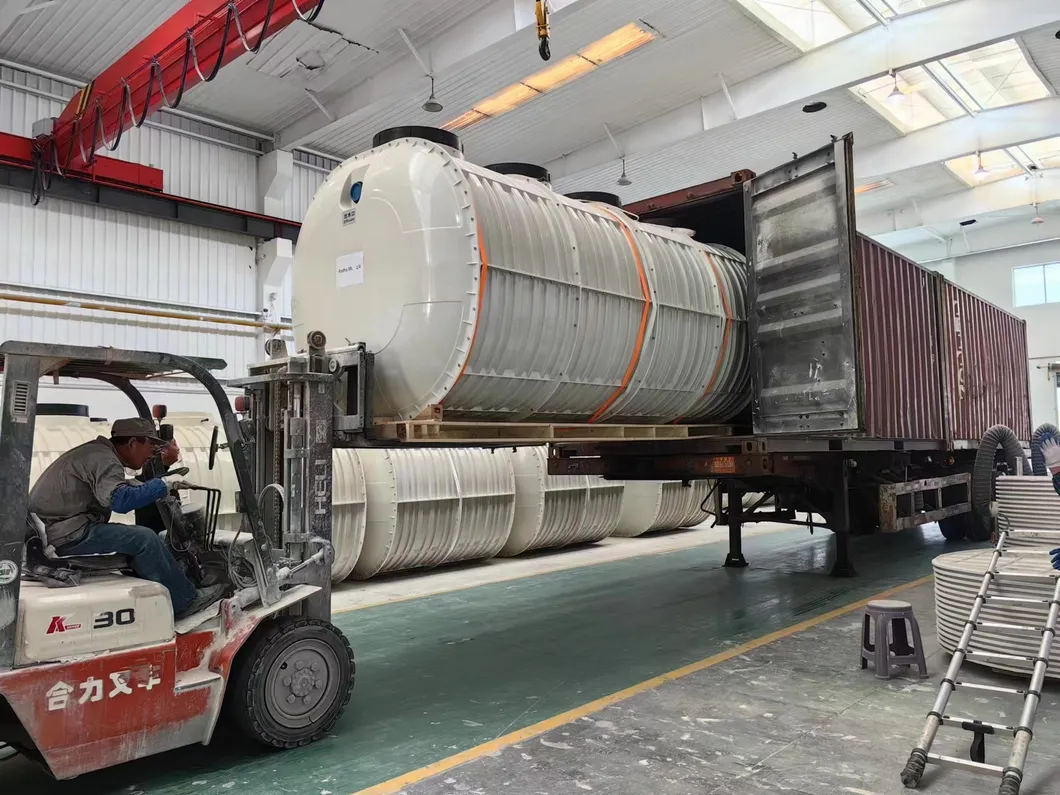

Transport PackageWooden Box
TechnologyA2o Process
Product Description
High-Efficiency Wastewater Treatment Solution

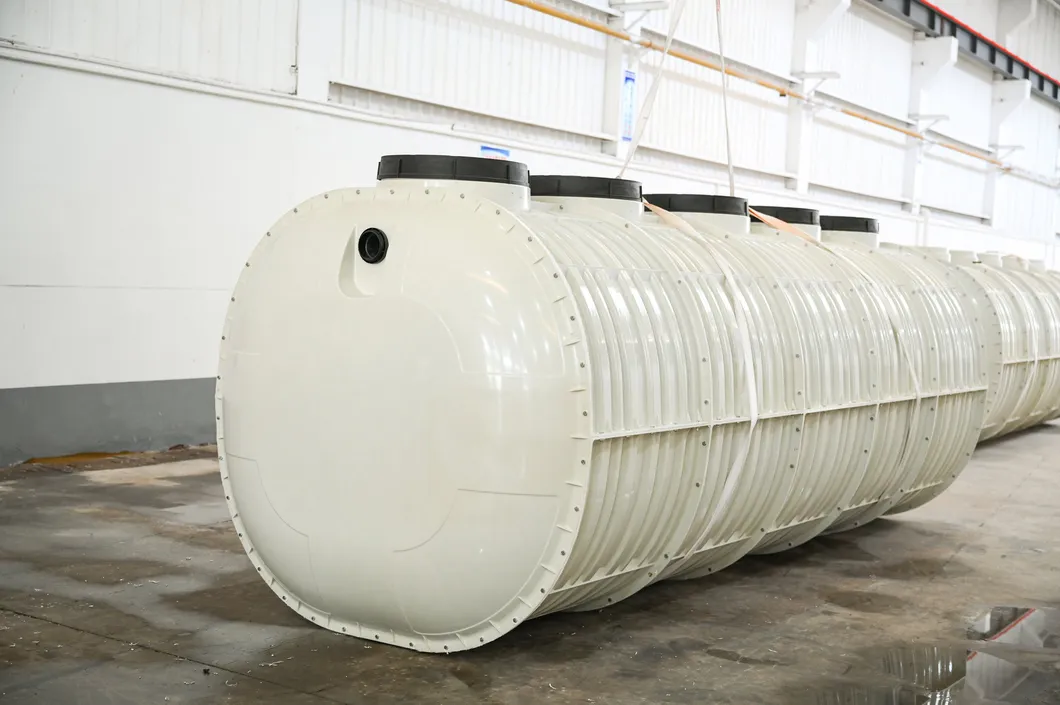

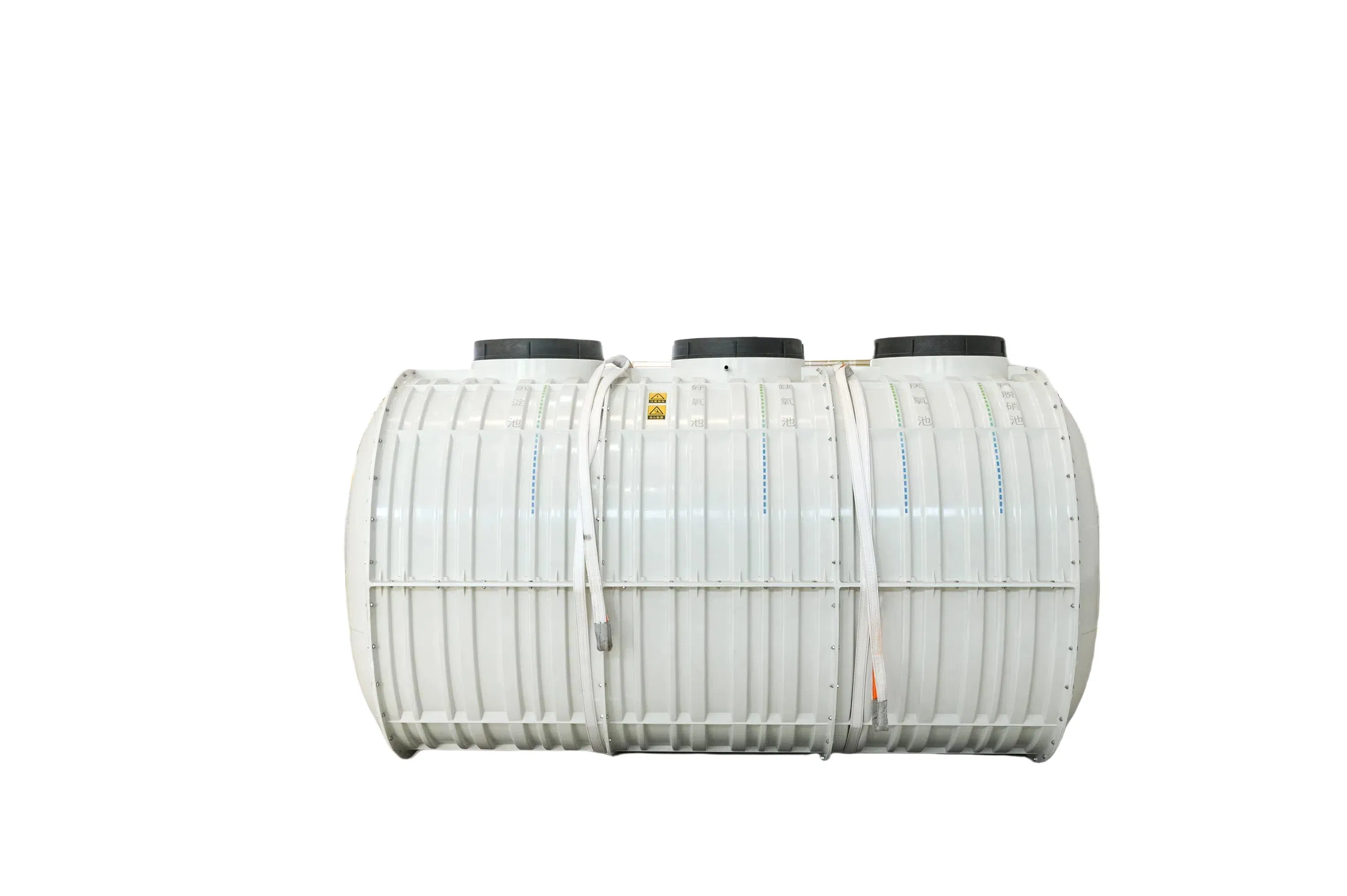

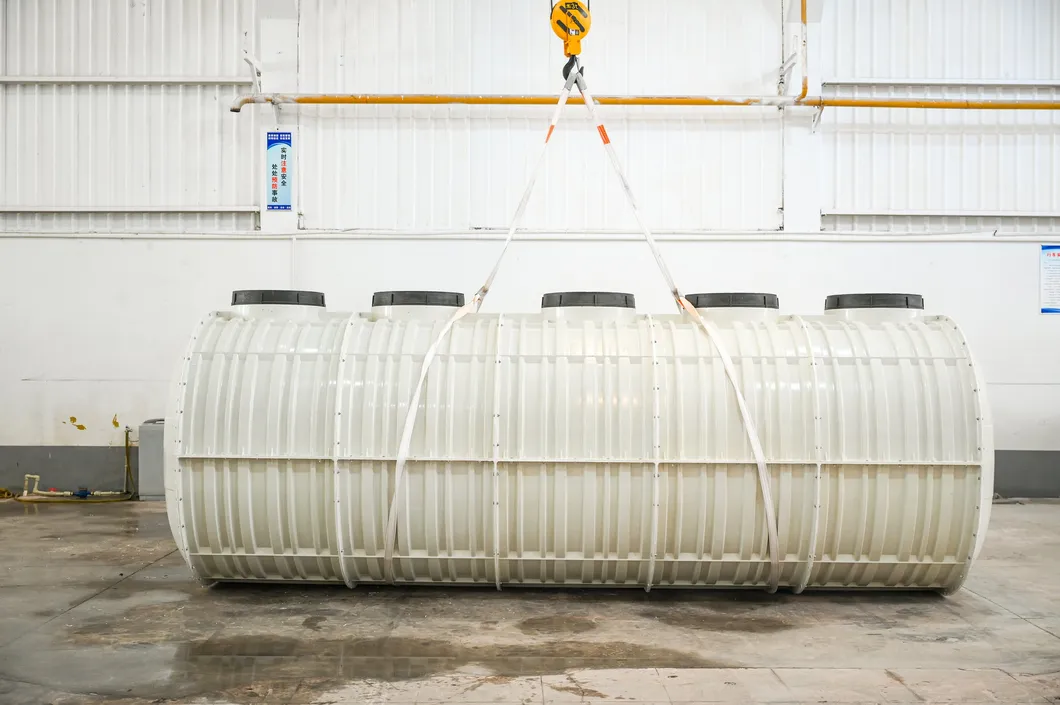

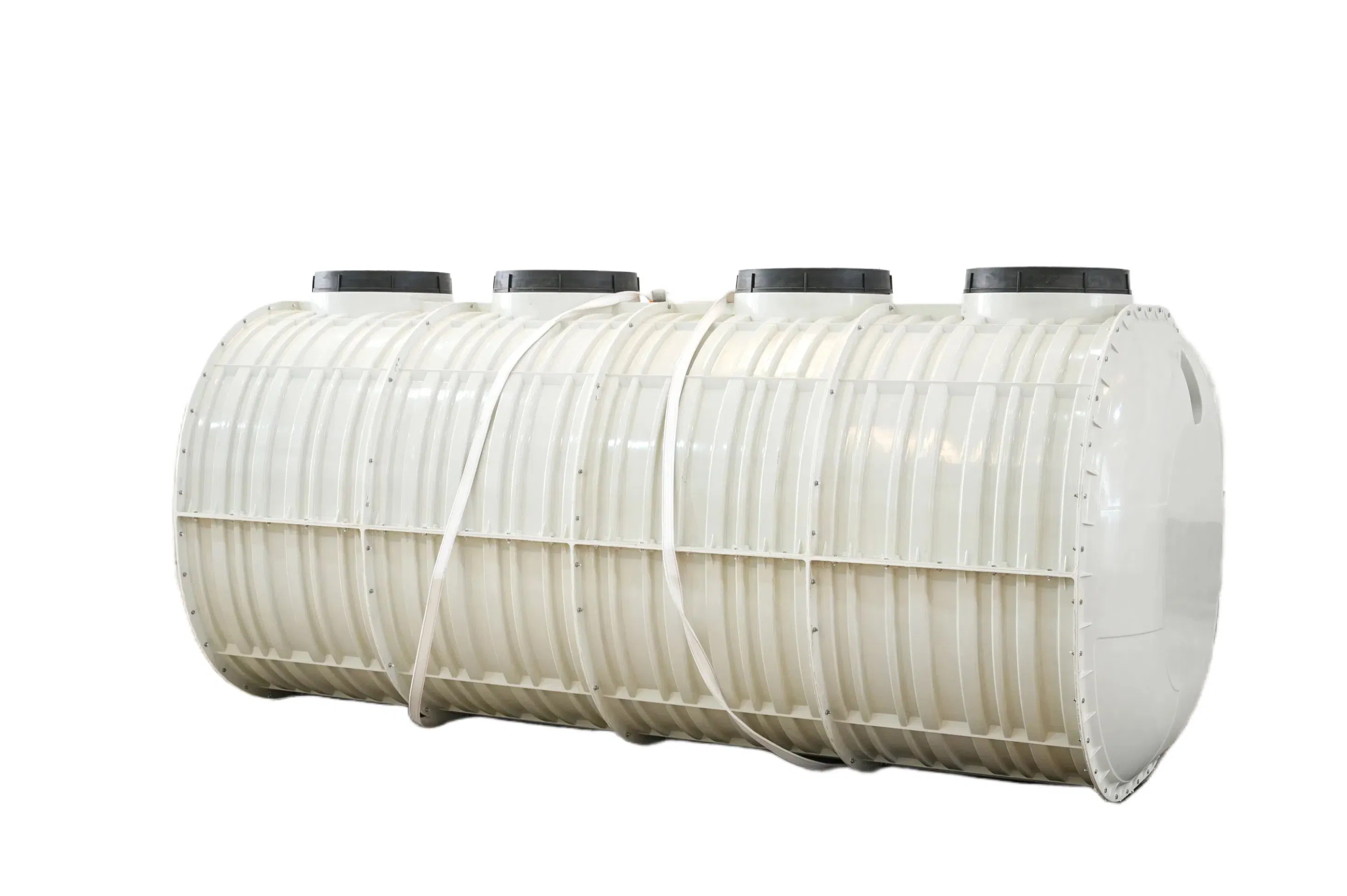

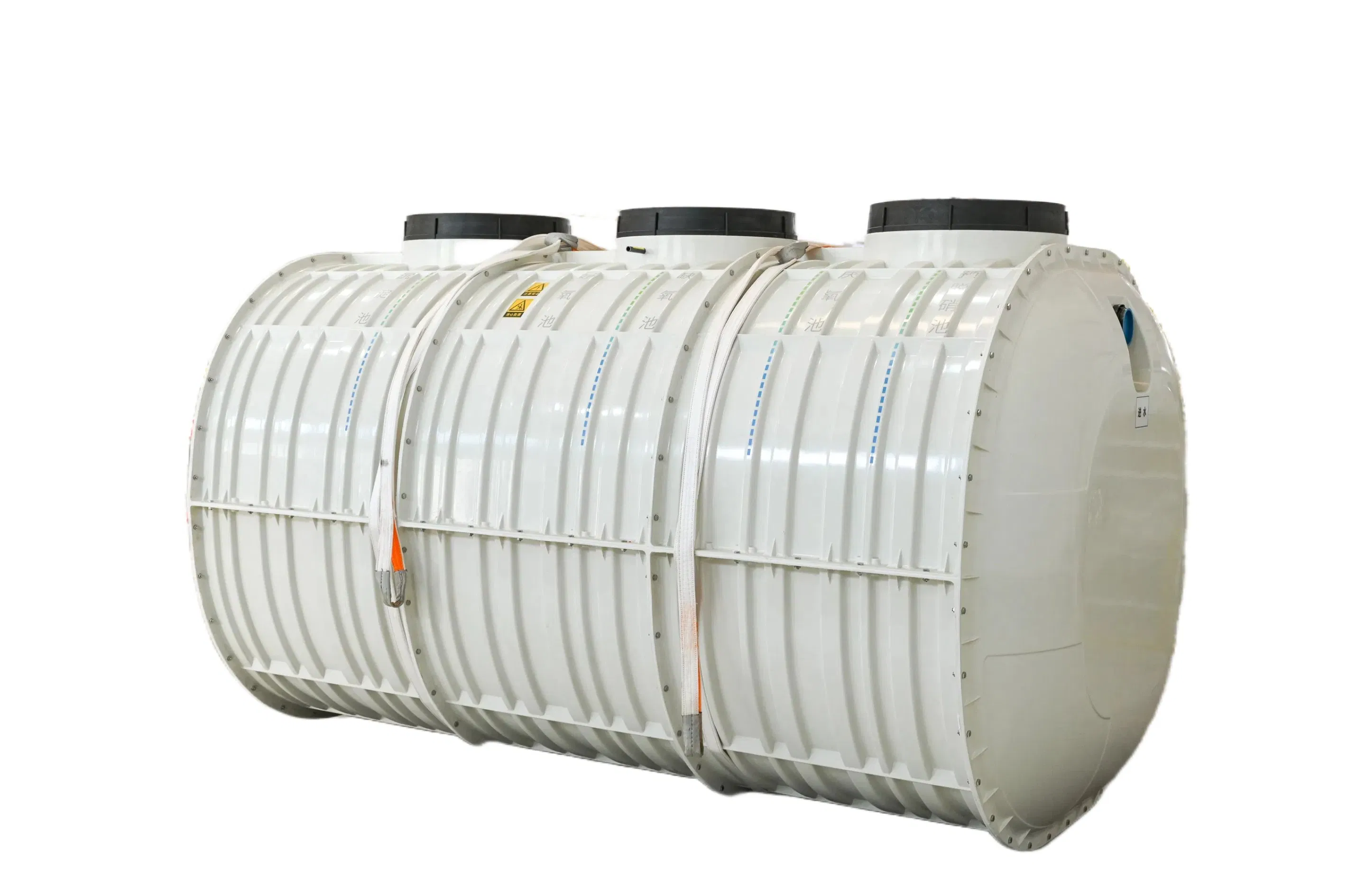

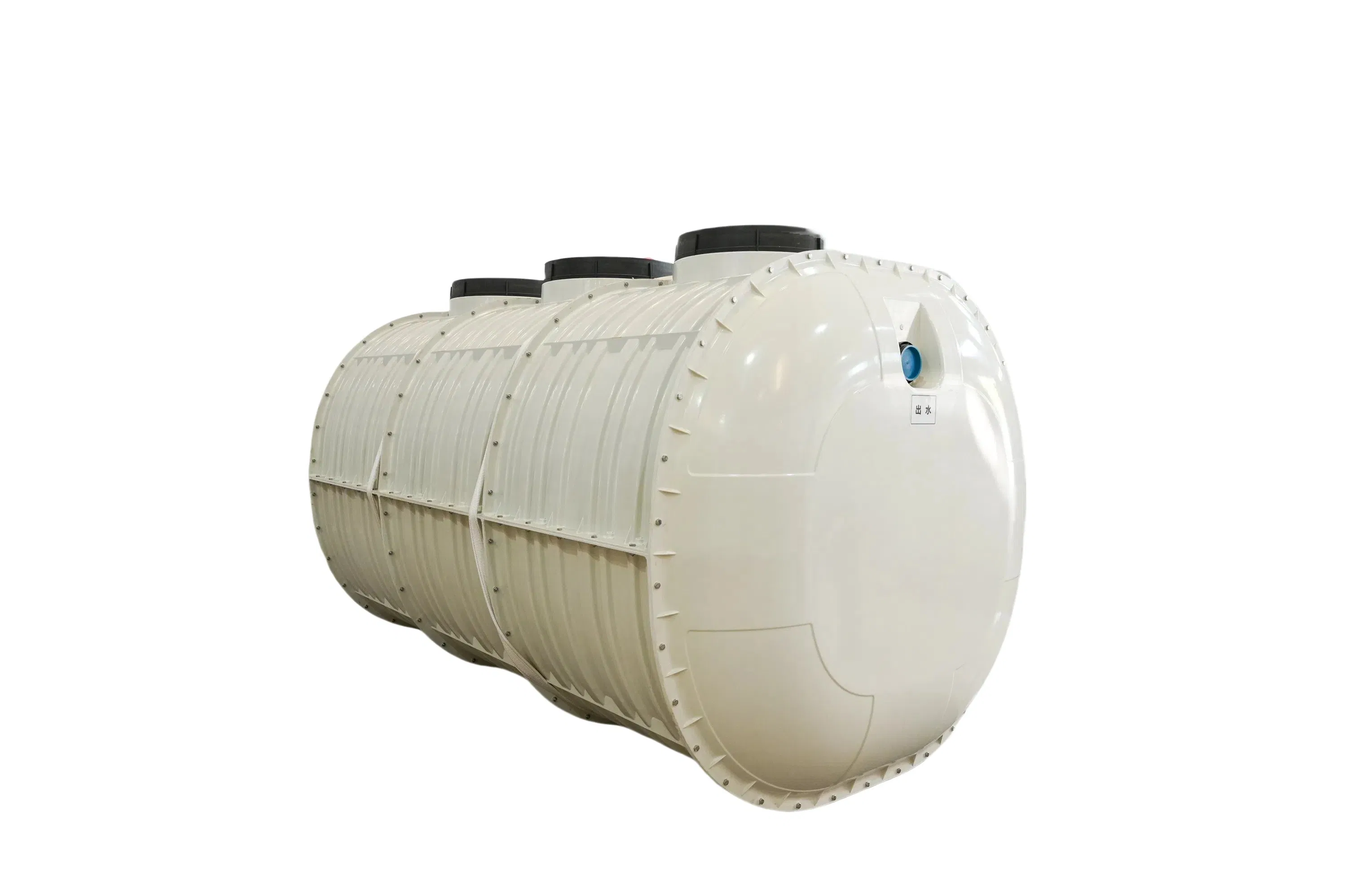

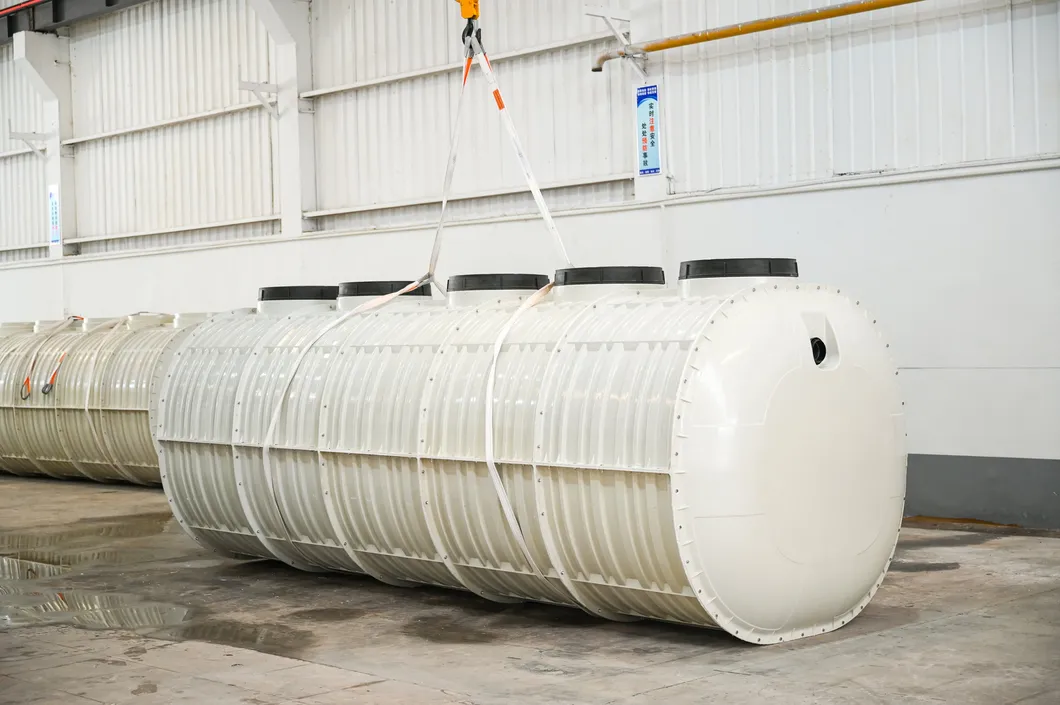

The sewage treatment tank is an upgraded product of an integrated domestic sewage treatment device, which has undergone multiple technological innovations and features high integration.
Core Advantages
- Low Investment & High Effect: Short construction period and easy maintenance.
- Energy Saving: Low daily operation costs and power consumption.
- IoT Integration: Real-time remote mobile management to save labor costs.
- Durability: SMC material mold casting with a service life exceeding 30 years.
- Eco-Friendly: Extremely low sludge production.

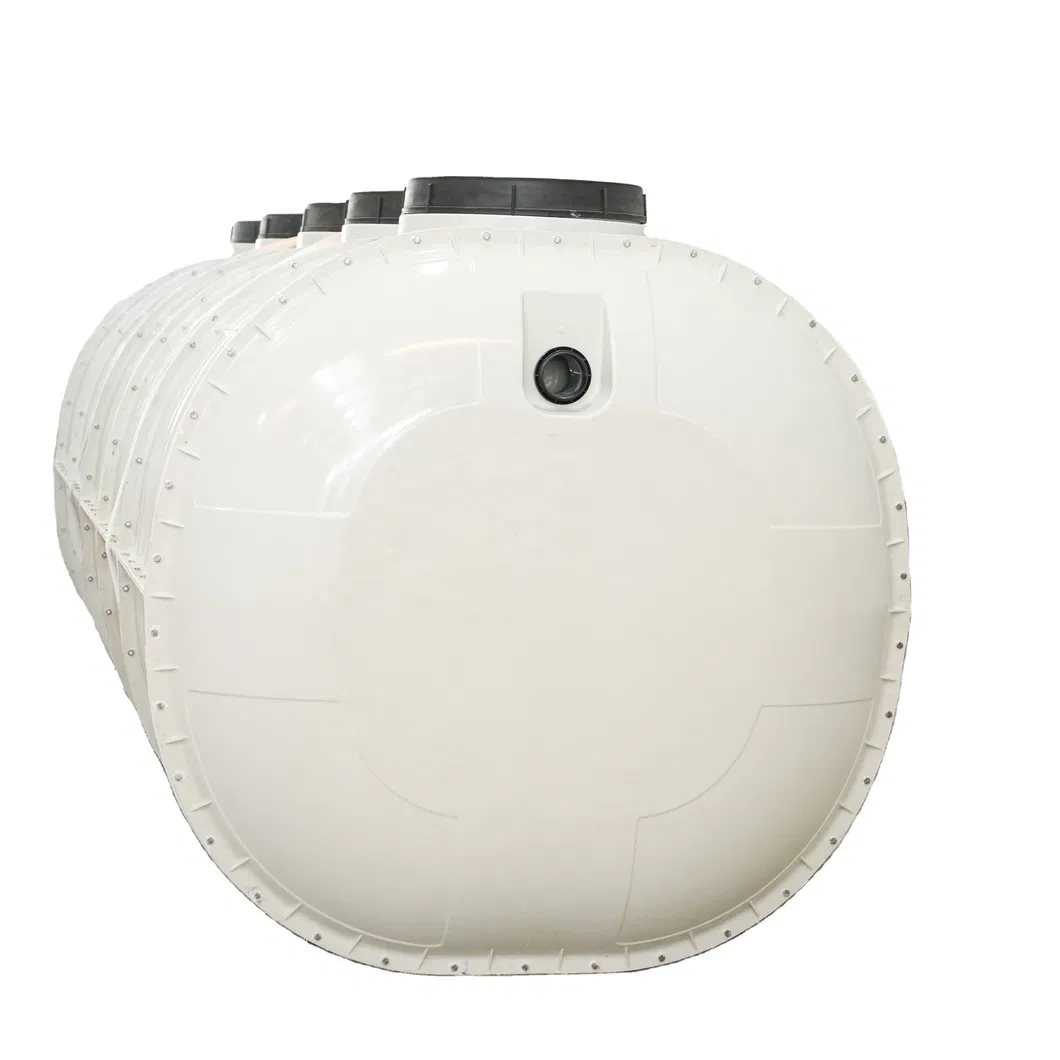

Advanced SMC Materials
SMC material adopts the FRP mold casting process, providing superior mechanical properties. The tank body includes UP resin, glass fibers, and fillers, ensuring high strength and chemical resistance.
| Performance Name |
Unit |
Index |
| Density | g/cm3 | 1.75~1.95 |
| Water-absorbing quality | mg | <3 |
| Heat distortion temperature | ºC | ≥240 |
| Bending strength | MPa | 150~180 |
| Compressive strength | MPa | >140 |
| Service Life | Years | Above 30 |

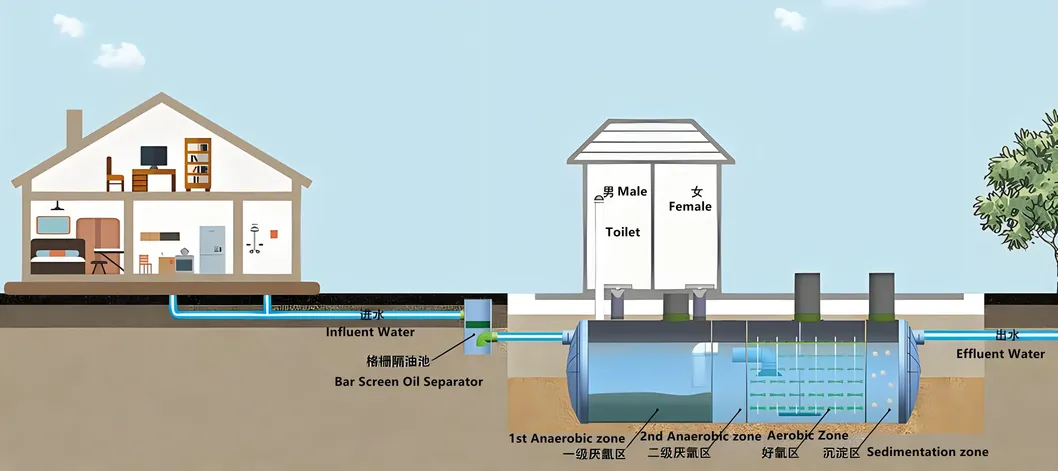

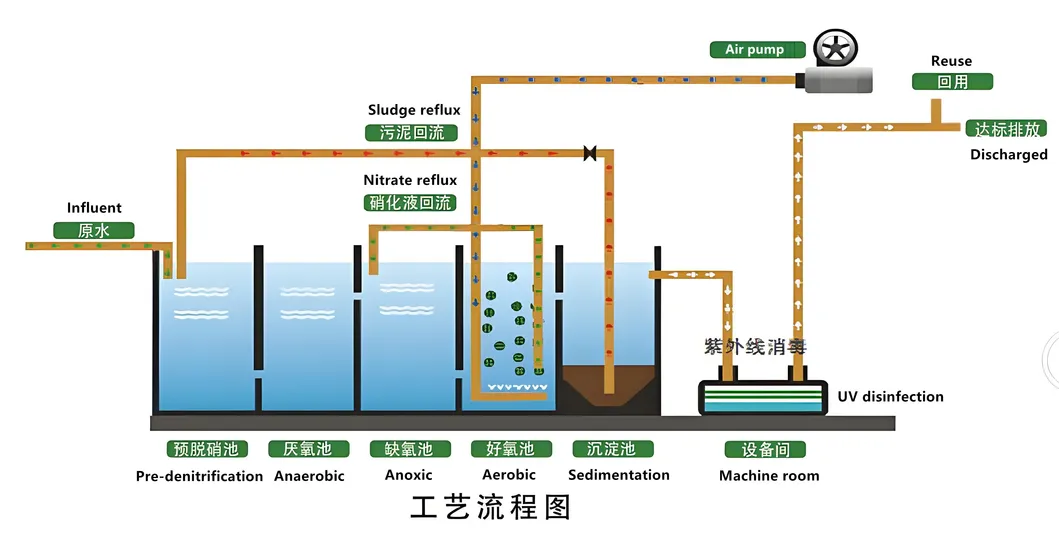

A2/O Biological Process
The system utilizes the A2/O process (Anaerobic-Anoxic-Aerobic), ensuring the removal of COD, ammonia nitrogen, and total nitrogen while strengthening phosphorus removal. Microorganisms grow on spherical filler media, making the biofilm method more resistant to shock loads than traditional activated sludge methods.
Frequently Asked Questions
1. What types of wastewater can this equipment treat?
It is primarily designed for domestic sewage from villas, hospitals, villages, and hotels, as well as specific industrial and agricultural wastewater.
2. What is the typical delivery time for the equipment?
Depending on the specific configuration, the standard delivery time is usually between 7 to 18 days.
3. How long is the service life of the SMC tank?

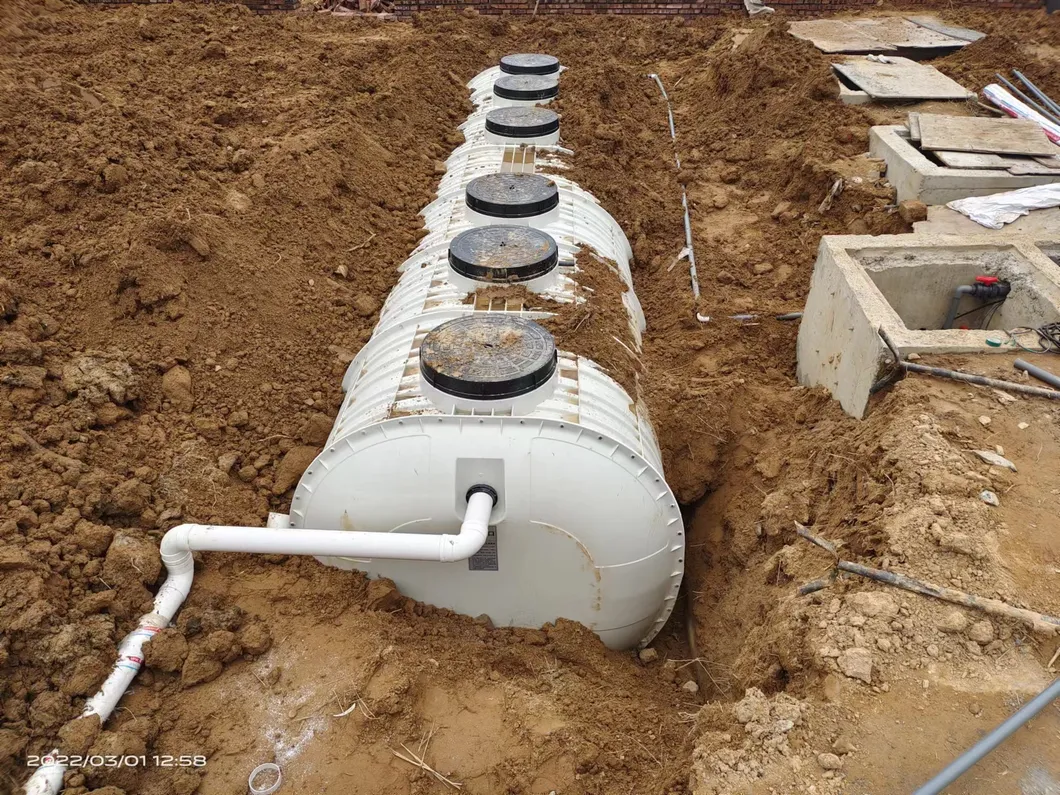

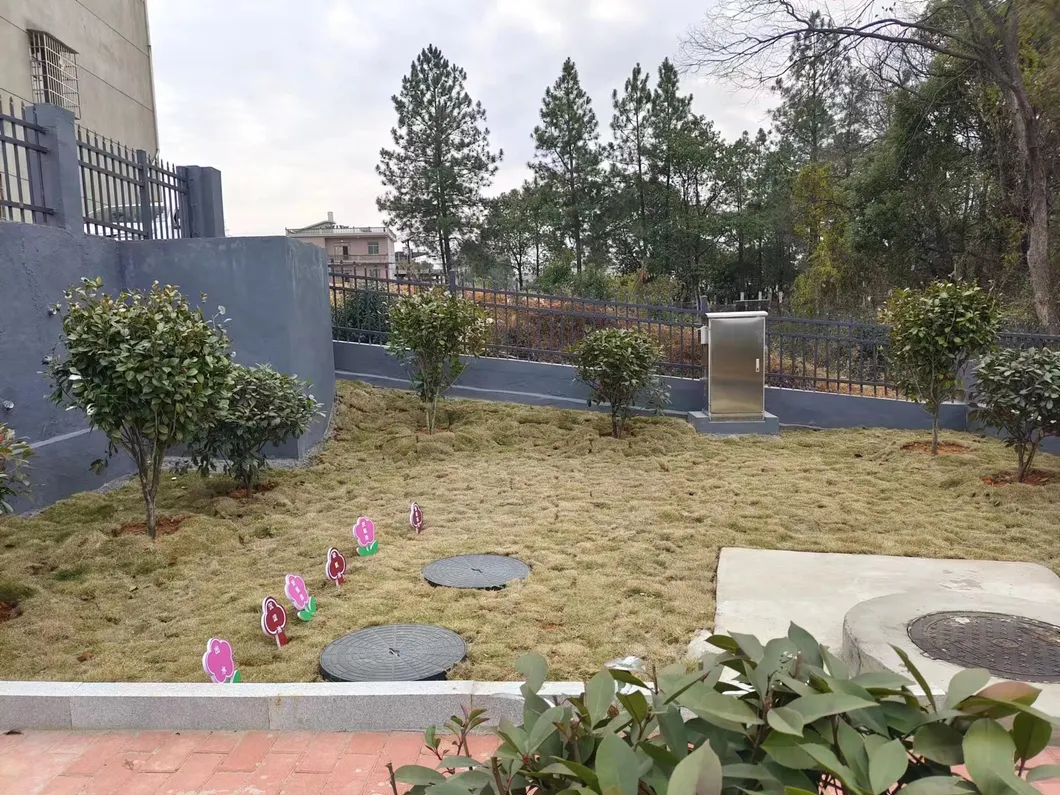

Thanks to the corrosion-resistant SMC molded material, the equipment has a service life of more than 30 years when buried underground.
4. Is the system difficult to manage or operate?
No, the system features a Siemens PLC electric auto-control and supports IoT technology for remote mobile management, allowing for unmanned operation.
5. What information is needed for a customized quotation?
Please provide your daily water treatment volume, the source of sewage (domestic or industrial), the number of users, and your local discharge standards.
6. What are the payment and shipping terms?
We provide flexible terms including EXW, FOB, and CIF. Payment is typically accepted via T/T or L/C.
