Basic Information
Product Description

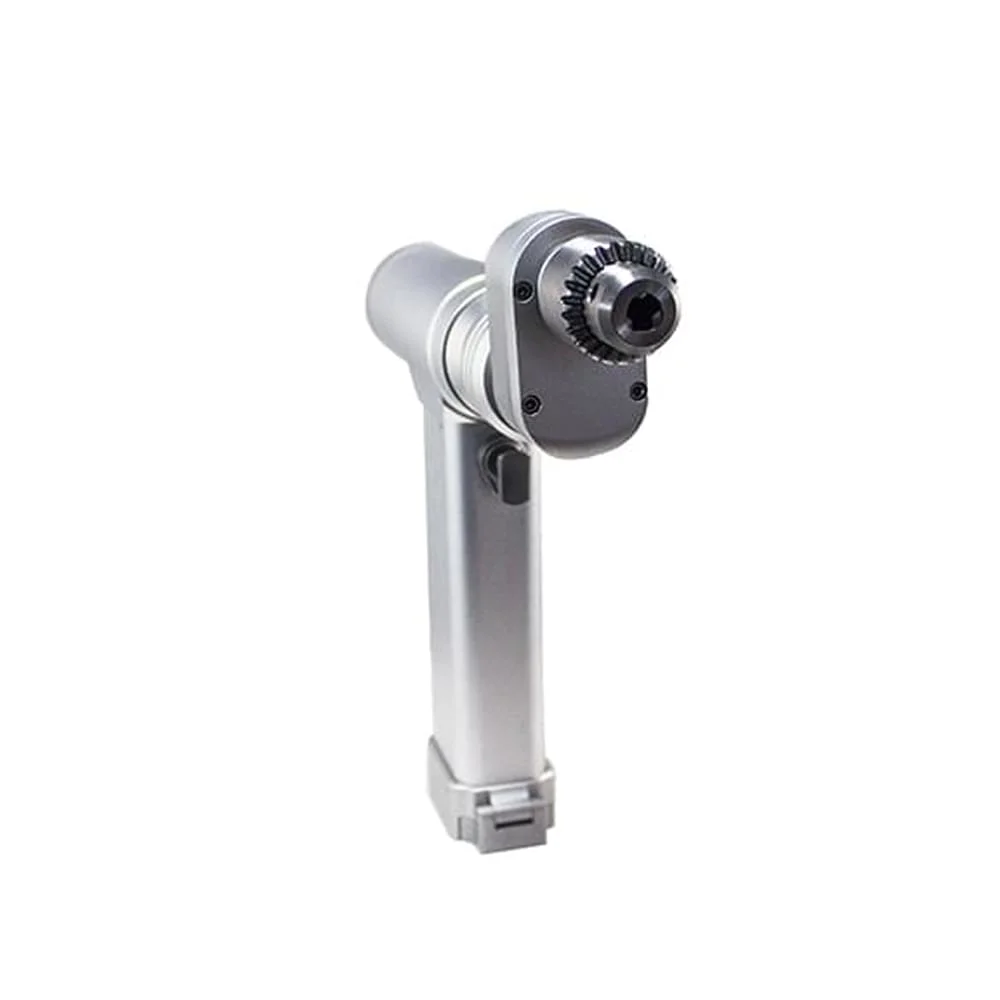

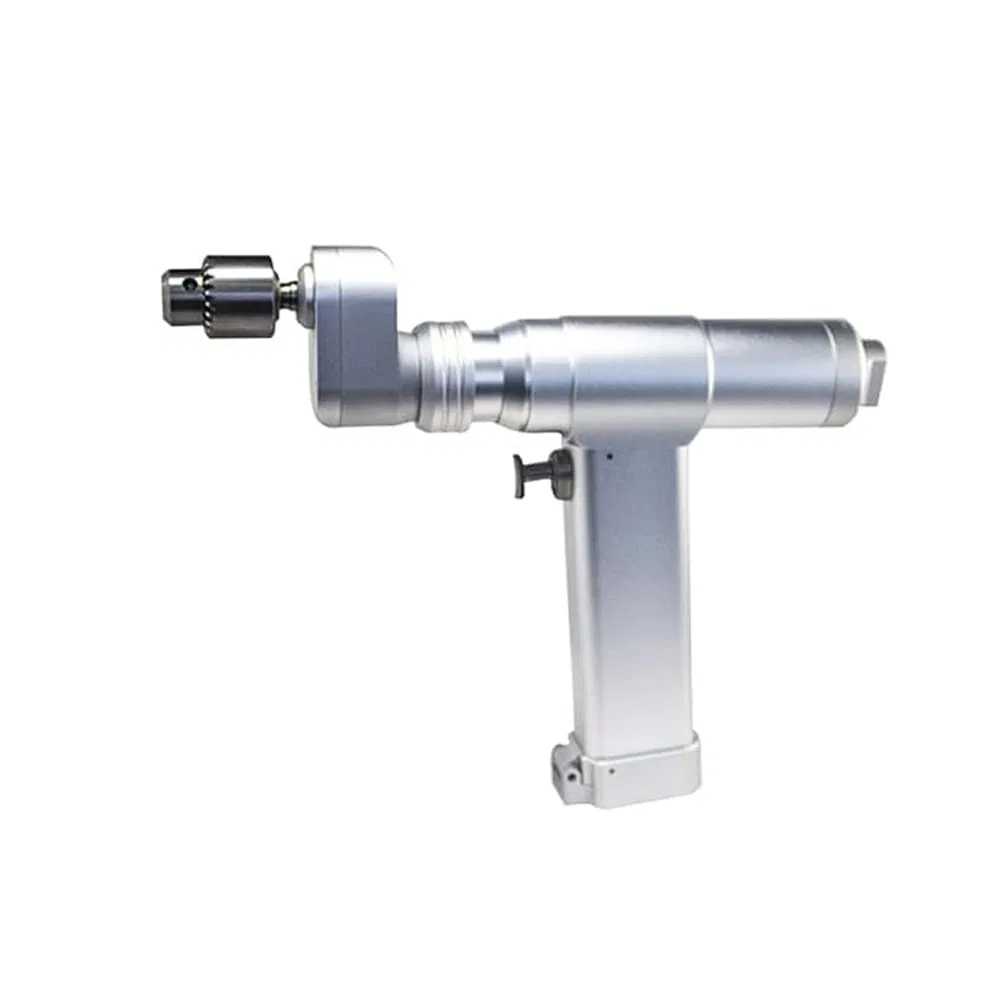

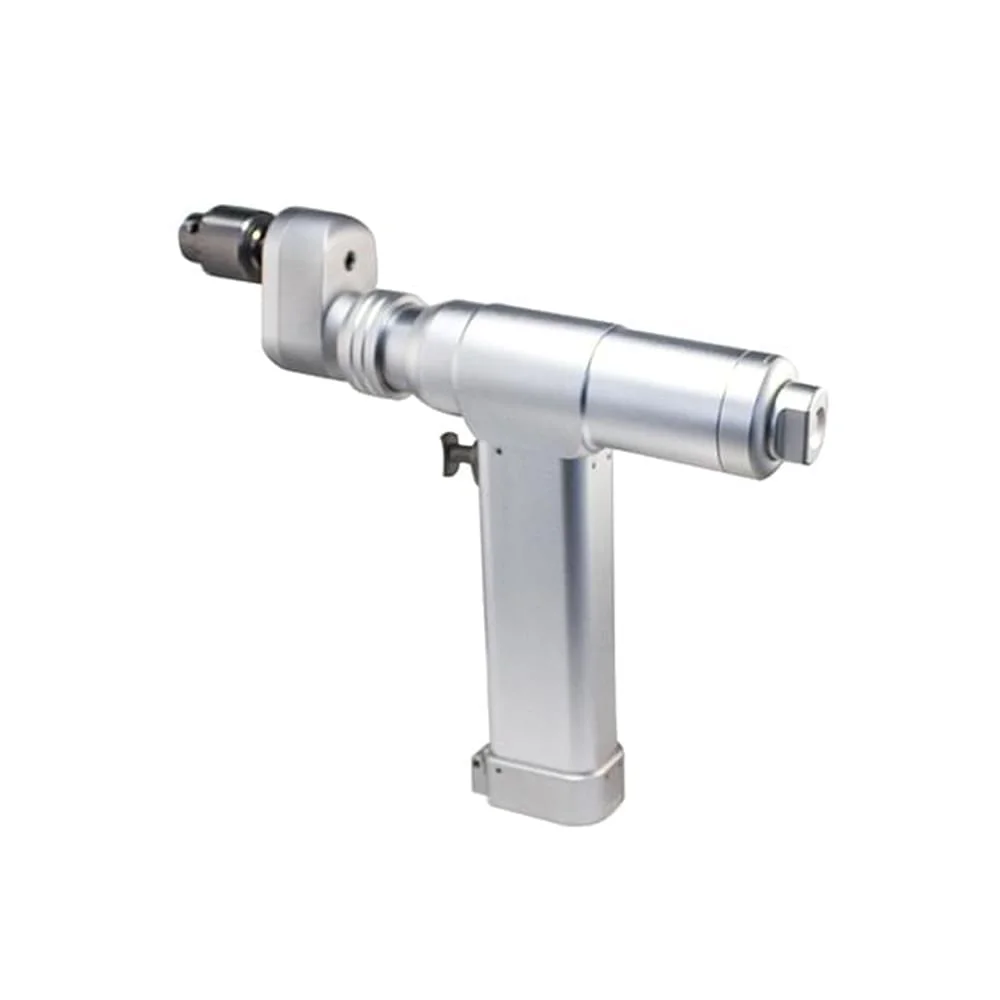

Orthopedic surgical power drill saw tool for joint reaming surgeries

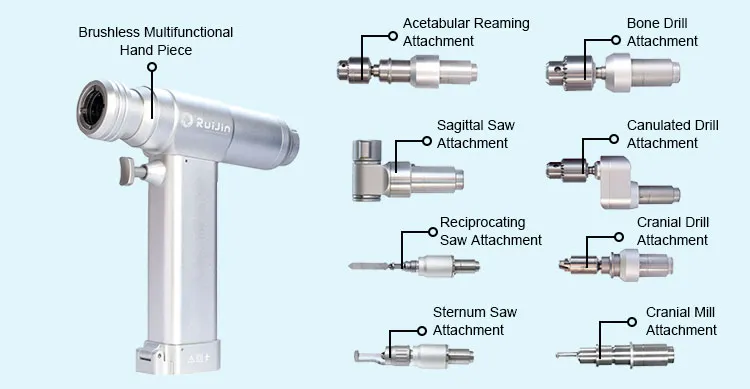

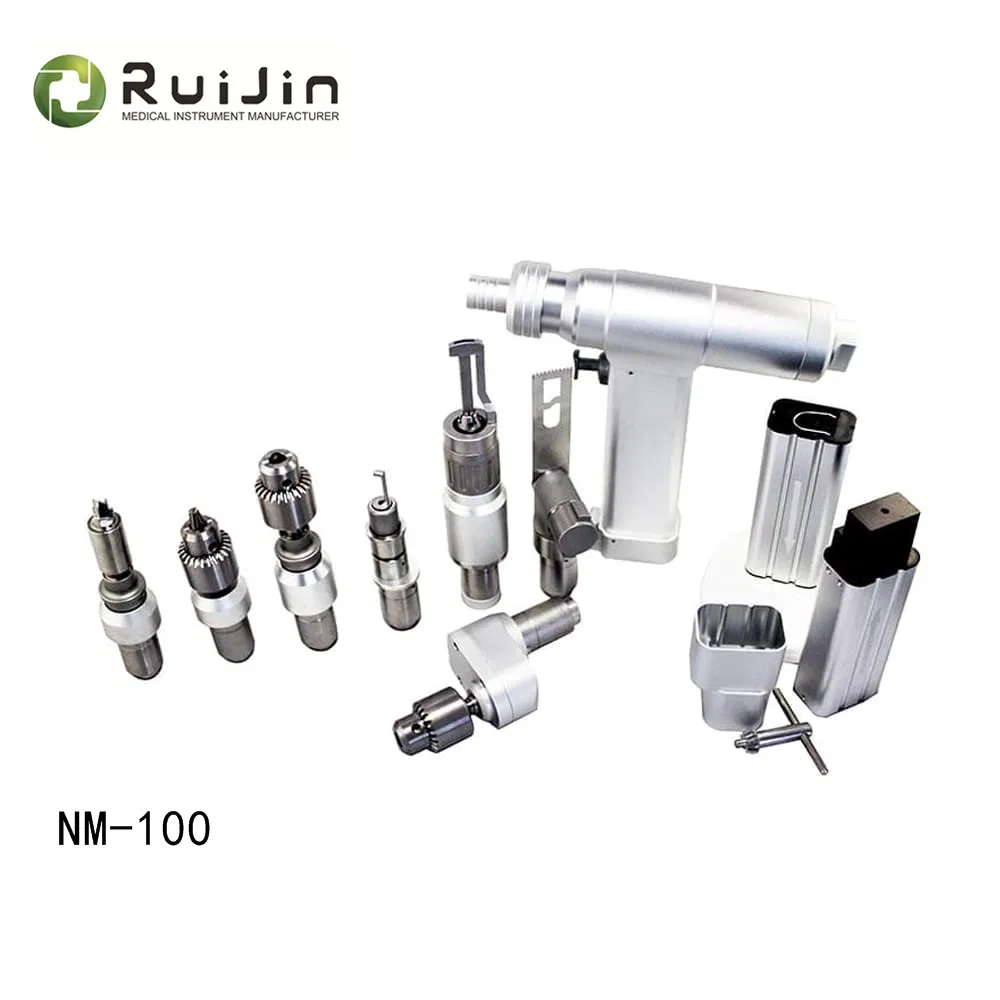

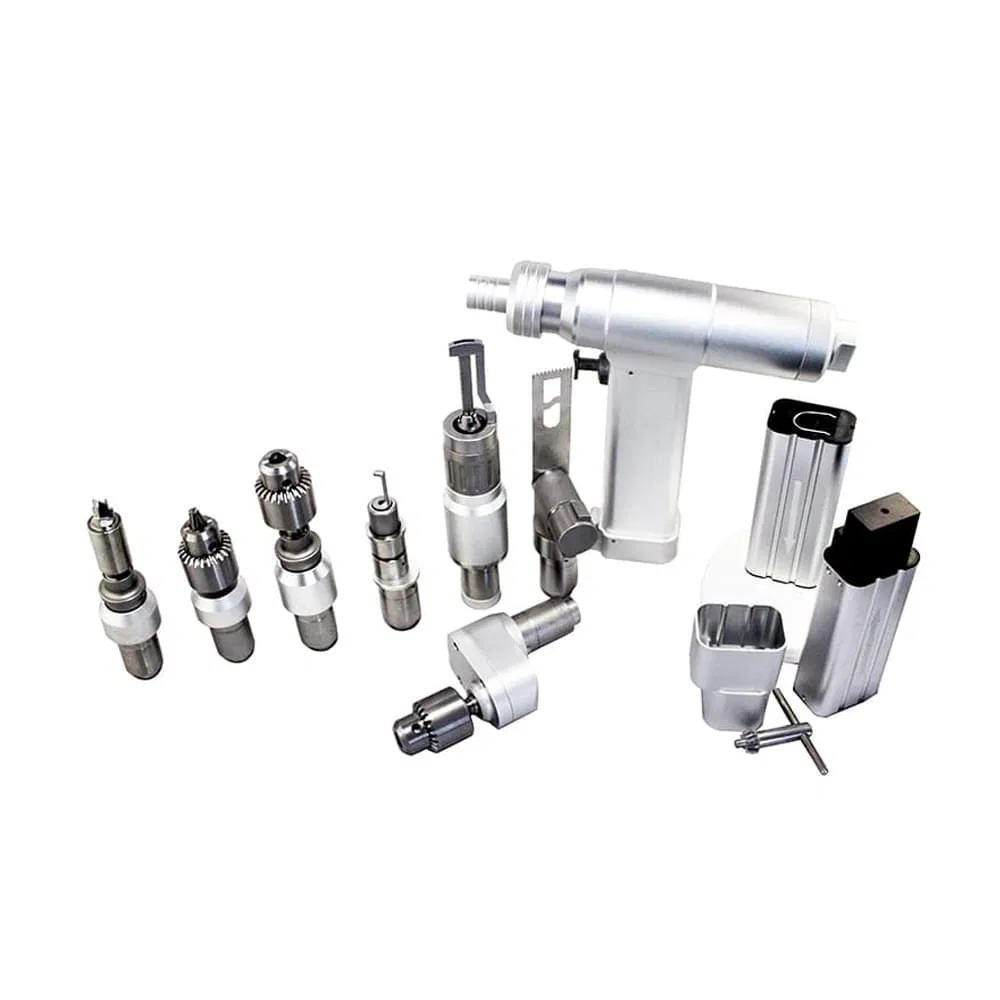

Main Components
| Components |
Quantity |
| Multifunctional mainframe | 1 |
| Quick chuck | 1 |
| Oscillating saw attachment | 1 |
| Canulate drill attachment | 1 |
| Acetabulum burnishing drill attachment | 1 |
| Cranial drill attachment | 1 |
| Cranial mill attachment | 1 |
| Sternum Saw attachment | 1 |
| Battery | 2 |
| Sterilizing channel | 1 |
| Sterilization tray | 1 |
| Aluminum alloy carrying box | 1 |
| High temperature plug | 1 |
Product Features
✔Professional surgical power tools design.
✔The single trigger modular handpiece can be autoclaved.
✔Comprehensive range of quick change attachments.
✔Equipped with a powerful motor for precise and stable performance.
✔Ergonomic design for comfortable grip and convenient manipulation.

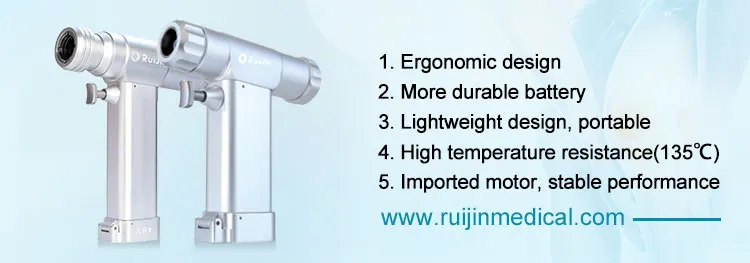

Product Display

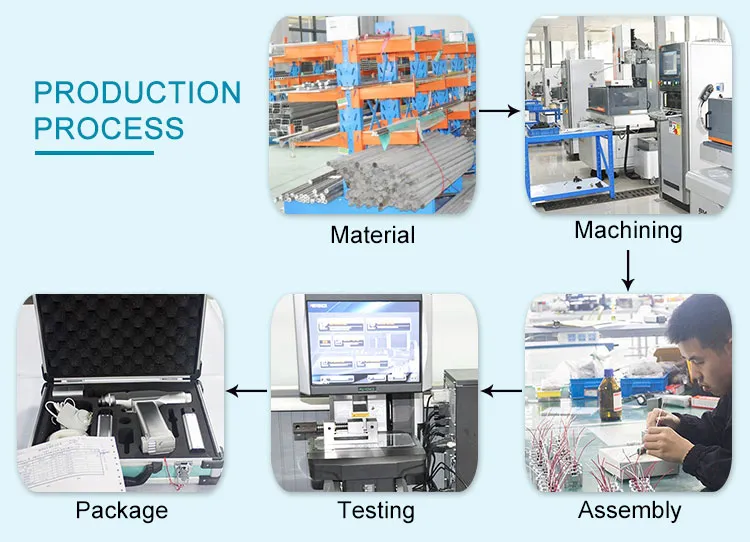

Process & Technical Details
Technical Data
| Hand Piece Working Voltage | 14.4V |
|---|
| Output Power | ≥20W |
|---|
| Unit rise in temperature | ≤25°C |
|---|
| Charger | Input Power | AC 220V, 50Hz |
|---|
| Output Power | 14.4V, 700mA |
| Input Power | 30VA |
| Battery | Voltage | 14.4V |
|---|
| Charging time | About 3 hours |
| Attachments | Rotate Speed |
|---|
| 1) Quick chuck (bone drill) | 0-1100r/m |
| 2) Oscillating saw | 0-16000r/m |
| 3) Acetabulum Reamer | 0-300r/m |
| 4) Wire and pin chuck (canulate drill) | 0-1100r.m.p |
| 5) Cranial drill | 900r.m.p |
| 6) Craniotomy mill | 40000r/m |
| 7) Sternum saw | 15000r/m |
Key Points & Advantages
★Quick chuck: Imported chuck ensures outstanding performance.
★Sternum saw: 360° Rotating head and blade guard protect soft tissue.
★Cranial drill: Auto-pause after perforation ensures safety in neurosurgery.
★Oscillating saw: 360° rotating head for any surgical site; easy blade loading.
★Reamer: Hi-torque, ideal for acetabulum or medullary operations.
★Wire and pin chuck: Applied to various intramedullary pin fixing operations.
Frequently Asked Questions
Is the handpiece of the NM-100 autoclavable?
Yes, the single trigger modular handpiece is designed to be autoclaved for sterilization.
What is the charging time for the battery?
The battery requires approximately 3 hours to reach a full charge.
What materials are used in the construction of these tools?
The primary material used is high-grade Stainless Steel, ensuring durability and reusability.
Does the cranial drill have safety features?
Yes, the cranial drill features an auto-pause function after perforation to ensure safety during neurosurgery.
What is included in the standard transport package?

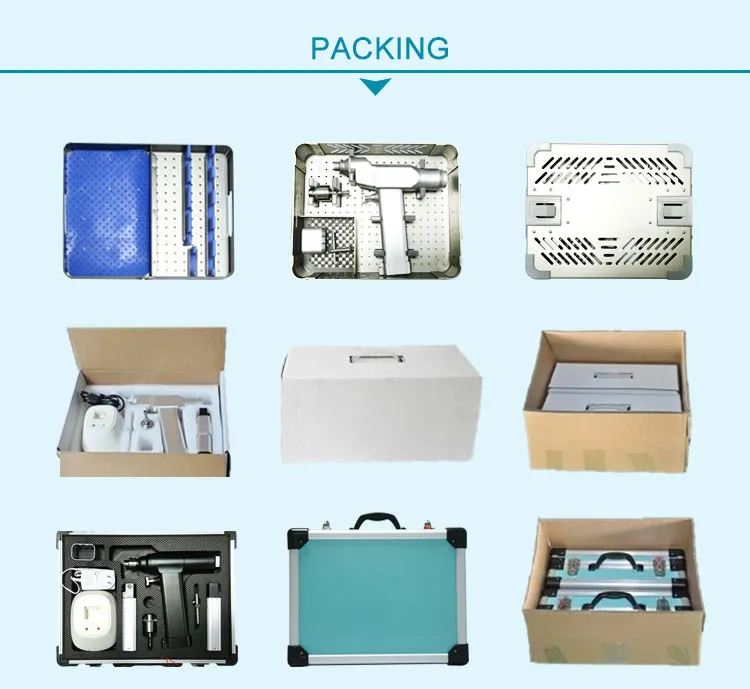

One complete set is packed in an aluminium alloy carrying box, which is then placed inside a protective carton.
Can the oscillating saw be used for different surgical sites?
Yes, the oscillating saw features a 360° rotating head, allowing it to be applied to various surgical sites easily.
