Importer of Orthopedic Instruments Reusable Surgical Power Drill Tools with Battery for Osteoporosis, Arthroplasty, Cardio-Thoracic

Customization: Available
Type: Drill&Saw
Application: Orthopedic, Neurosurgery, Microsurgery, Burns, Used for Traumatic Surgery

Product Description

i
Basic Information
Model NO.
NM-500
Material
Stainless Steel
Feature
Reusable
Certification
CE, ISO13485
Group
Adult
Properties
Orthopedic Surgical Instruments
Saw Drill Type
Autoclavable
Technical Merit
Can Drive 10 Attachments
Drill Type
Multi-Function Drill
Battery
Rechargeable
Charging Time
About 3 Hours
Warranty
2 Years
Autoclavable Temp.
135 Degree
Drill Hollow Diameter
4.2mm
Color
Black / Silver
Oscillating Speed
18000osc/Min
Product Description
Importer of orthopedic instruments reusable surgical power drill tools with battery for osteoporosis, arthroplasty, Cardio-Thoracic
Our Advantages
  • No MOQ requirements.
  • Timely delivery.
  • Comprehensive after-sales service system.
  • 24 hours online professional team for technical support.
  • Patented technologies with guaranteed quality.
  • Two years free handpiece technical support and six months accessory support.
Technical Data
Handpiece working voltage14.4V
Charging timeabout 3 hours
Output power14.4V, 900mA
Input power30VA
Power voltageAC220V, 50Hz
Noise63dB
MaterialStainless steel
Cannula diameter4.2mm
Applying scope0.6-6mm, 0.6-8mm

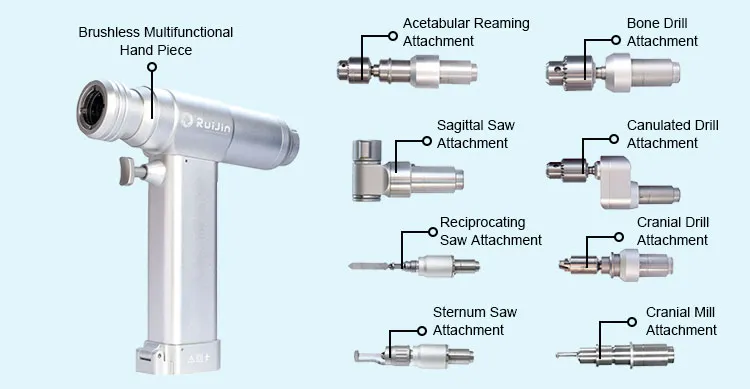

No-load Speed of Seven Attachments
Attachment TypeSpeed
Quick Drill1100rpm
Sternum saw15000rpm
Craniotomy mill40000rpm
Oscillating saw16000rpm
Acetabulum reamer300rpm
Cranial drill900rpm
Wire and pin chuck600rpm
!
Usage Points & Notes
Functional Highlights

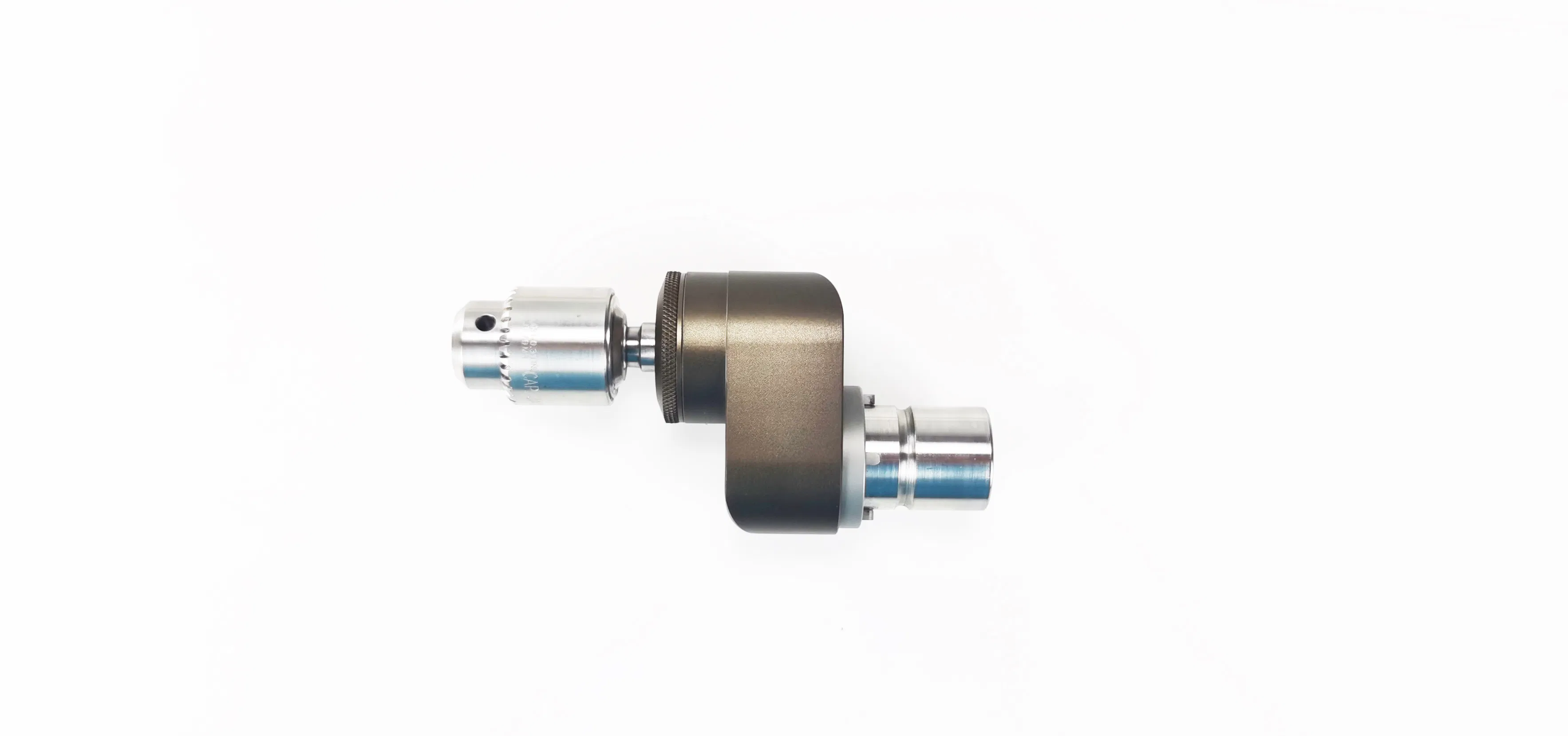

  • Quick chuck: Imported chuck ensures outstanding performance.

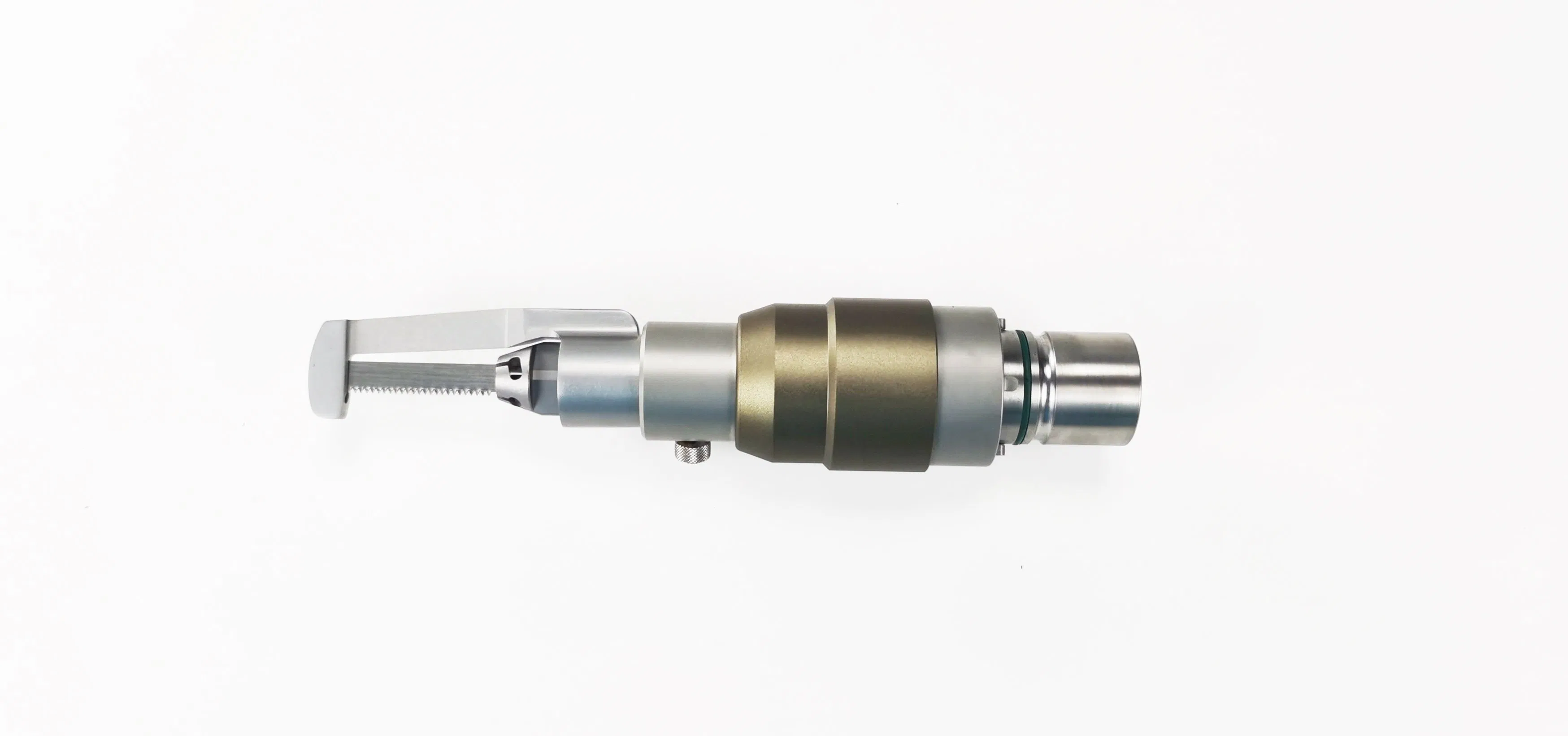

  • Sternum saw: 360° Rotating head and blade guard protect soft tissue.
  • Cranial drill: Auto-pause after perforation ensures safety in neurosurgery.
  • Oscillating saw: 360 rotating head applied to any surgical sites; easy blade loading.
  • Reamer: Hi-torque, ideal for acetabulum or medullary operation.
Important Maintenance Notes
1. The device must not be dismantled by non-professionals.
2. The battery cannot be disinfected.
3. Battery should be removed when not in use to prevent automatic discharge.
4. The battery space must be kept dry after sterilization.
5. Sterilization temperature must be lower than 135 degrees Celsius to protect the motor.
Components & Features

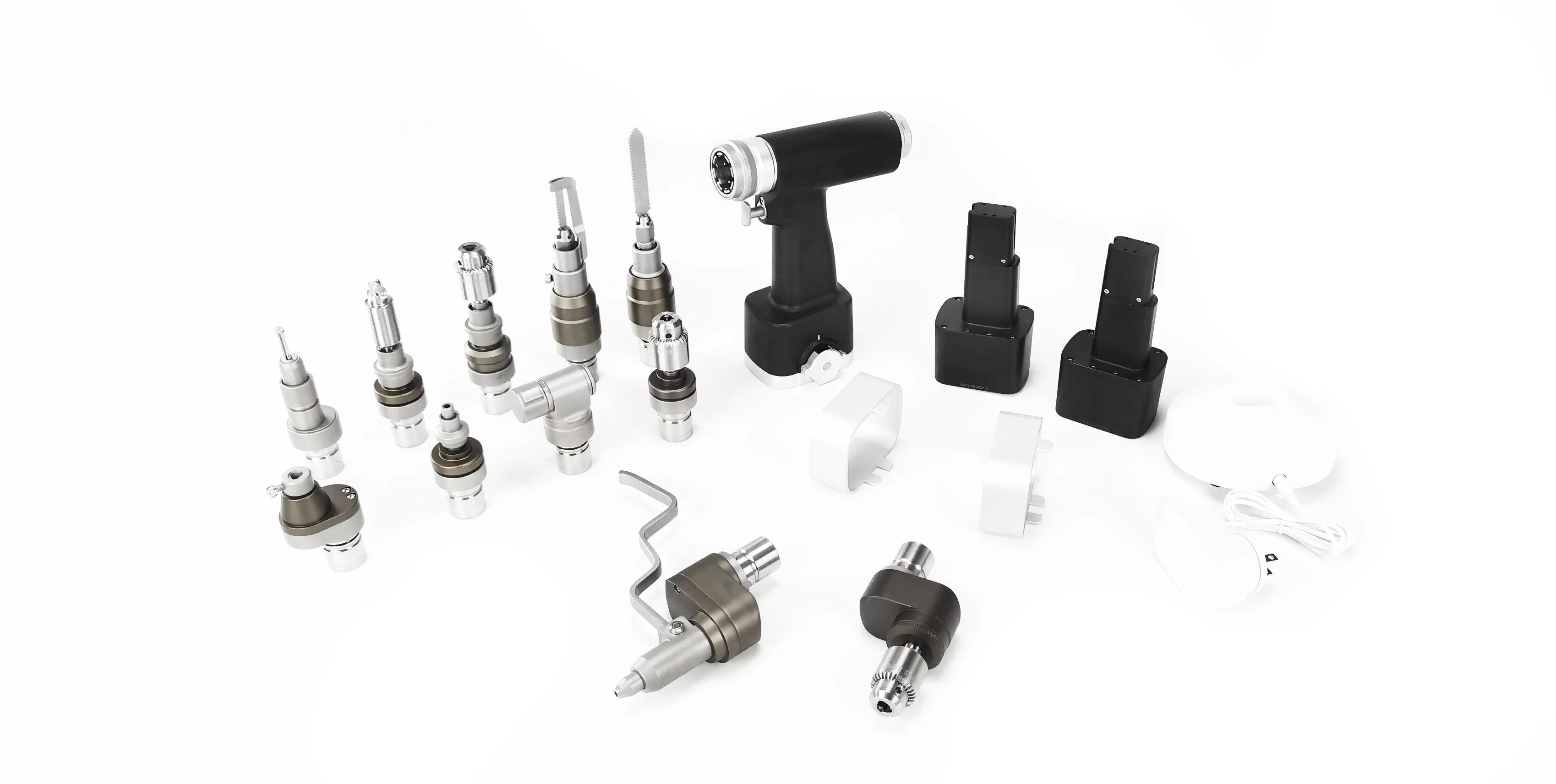

Main Components:
  • One handpiece & One battery
  • One charger & Sterilizing channel
  • Quick chuck & Sternum saw
  • Craniotomy mill & Oscillating saw
  • Acetabulum reamer & Wire/pin chuck
  • Automatic-stopping cranial drill

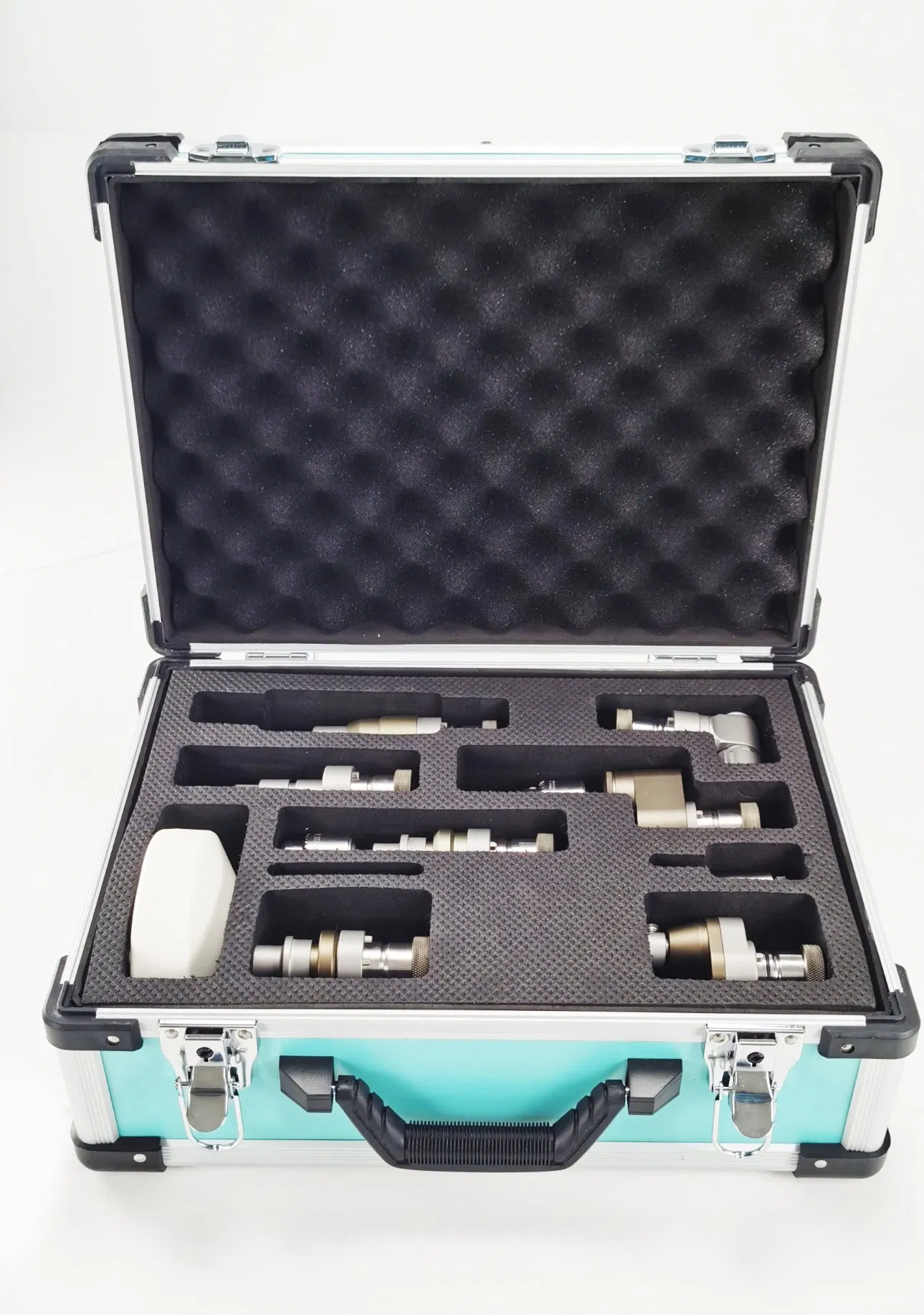

  • One aluminum alloy case

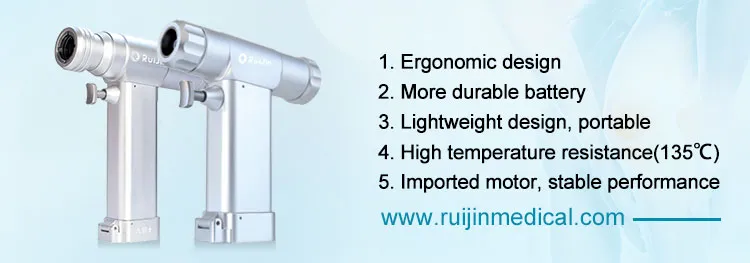

  • Product Features:
  • Autoclavable single trigger modular handpiece.
  • Comprehensive range of quick change attachments.
  • Powerful motor for precise and stable performance.
  • Ergonomic design for comfortable grip and manipulation.
  • 📷

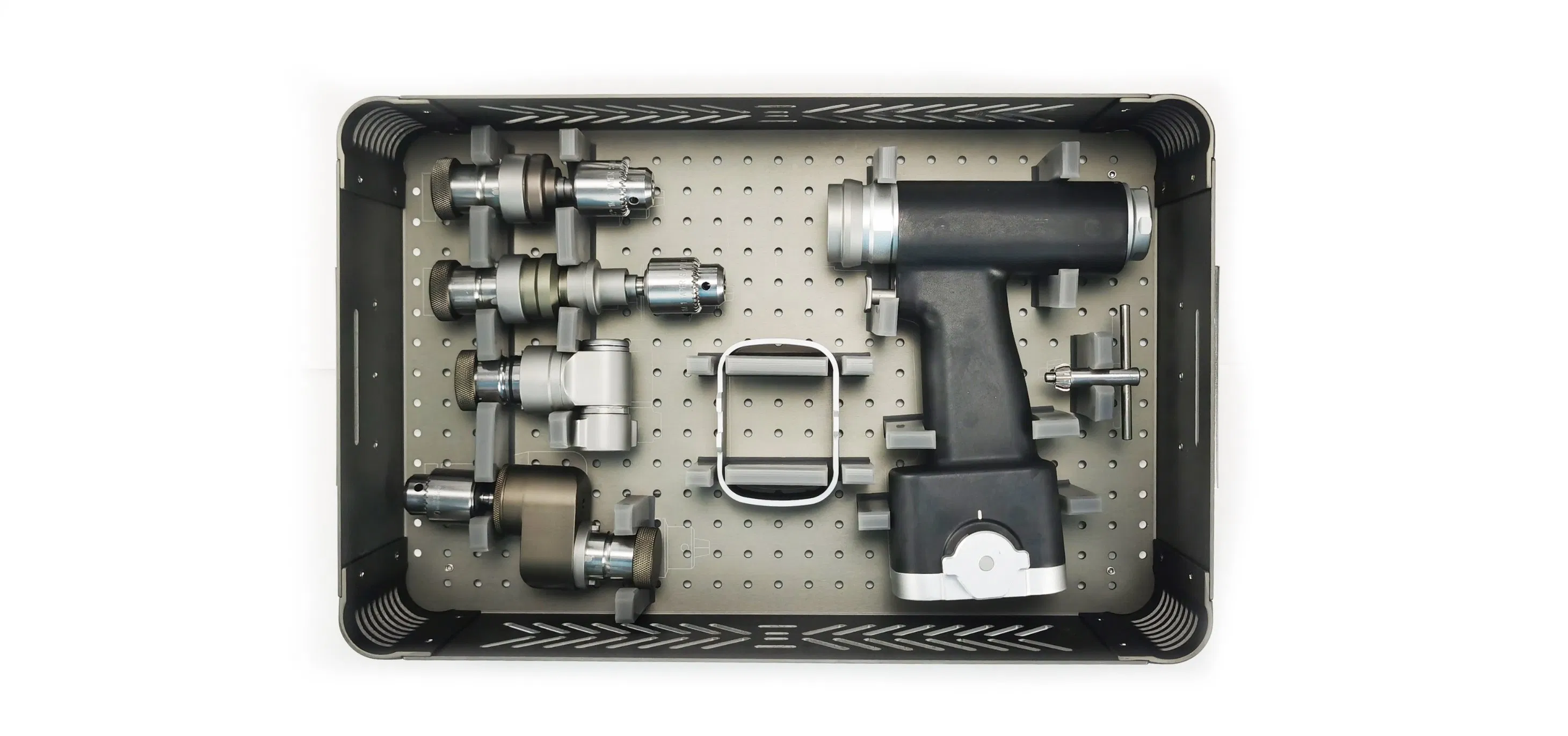

    Product Showcase

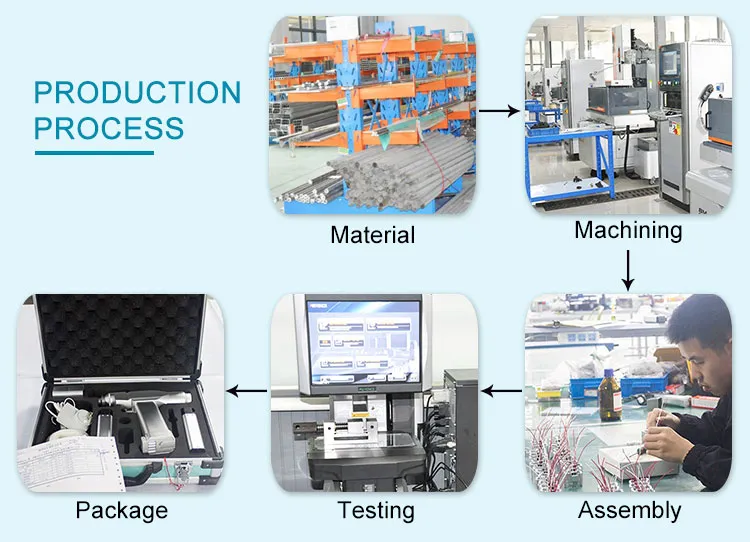

    Order & Process Introduction
    Packaging & Logistics
    ?
    Frequently Asked Questions
    Q1: What is the warranty period for the NM-500 surgical drill? A: We provide a 2-year warranty for the power drill handpiece and 6 months of free support for accessories.
    Q2: Can the entire unit be autoclaved? A: The handpiece and attachments are autoclavable up to 135°C. However, the battery cannot be disinfected or autoclaved and must be removed prior to the process.
    Q3: How long does the battery last and what is the charging time? A: The charging time is approximately 3 hours. We recommend removing the battery from the handpiece when not in use to maintain its lifespan.
    Q4: How many attachments can this system support? A: The multi-function system is designed with a modular handpiece that can drive up to 10 different surgical attachments.
    Q5: What materials are the instruments made of? A: The instruments are primarily manufactured from high-grade stainless steel to ensure durability, hygiene, and resistance to corrosion.
    Q6: What is the noise level during operation? A: The device operates with a noise level of approximately 63dB, ensuring a relatively quiet surgical environment.
