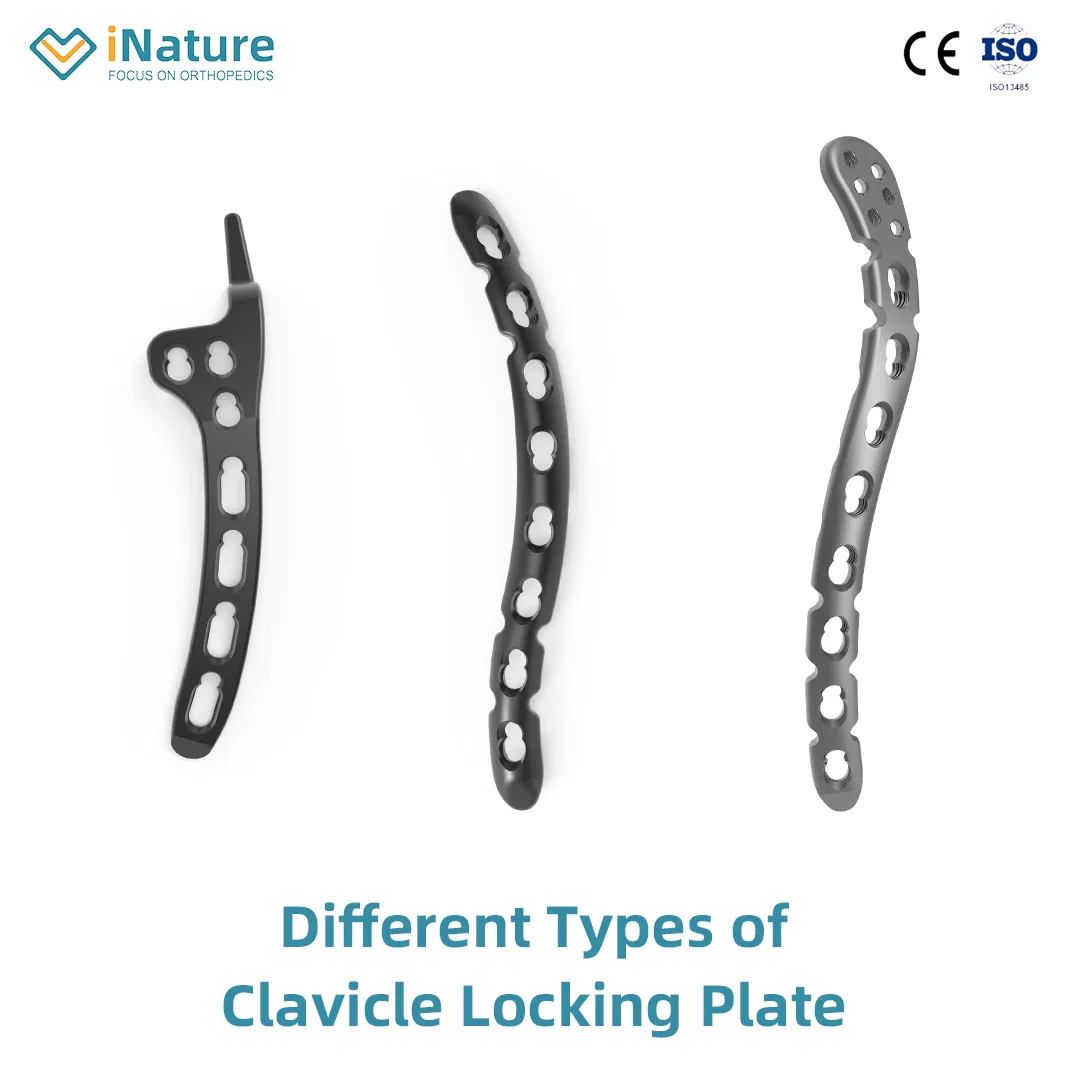

Orthopedic Implant Locking Plate Clavicle Plate System

1 / 5

Orthopedic Implant Locking Plate Clavicle Plate System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

TY-LP

Color

Silver

Application

Clavicle

Material

Pure Titanium

Properties

Implant Materials & Artificial Organs

Instrument Classification

Class III

Warranty

One Year

After-Sale Service

Online Technical Support

Package

Sterile/Non-Sterile Package

Certificate

CE/ISO 13485

OEM

Accepted

Transport Package

Carton

Specification

3/4/5/6/7/8 Holes, L/R

HS Code

902110

Production Capacity

10000 Piece/Pieces Per Month

🔧

Product Description

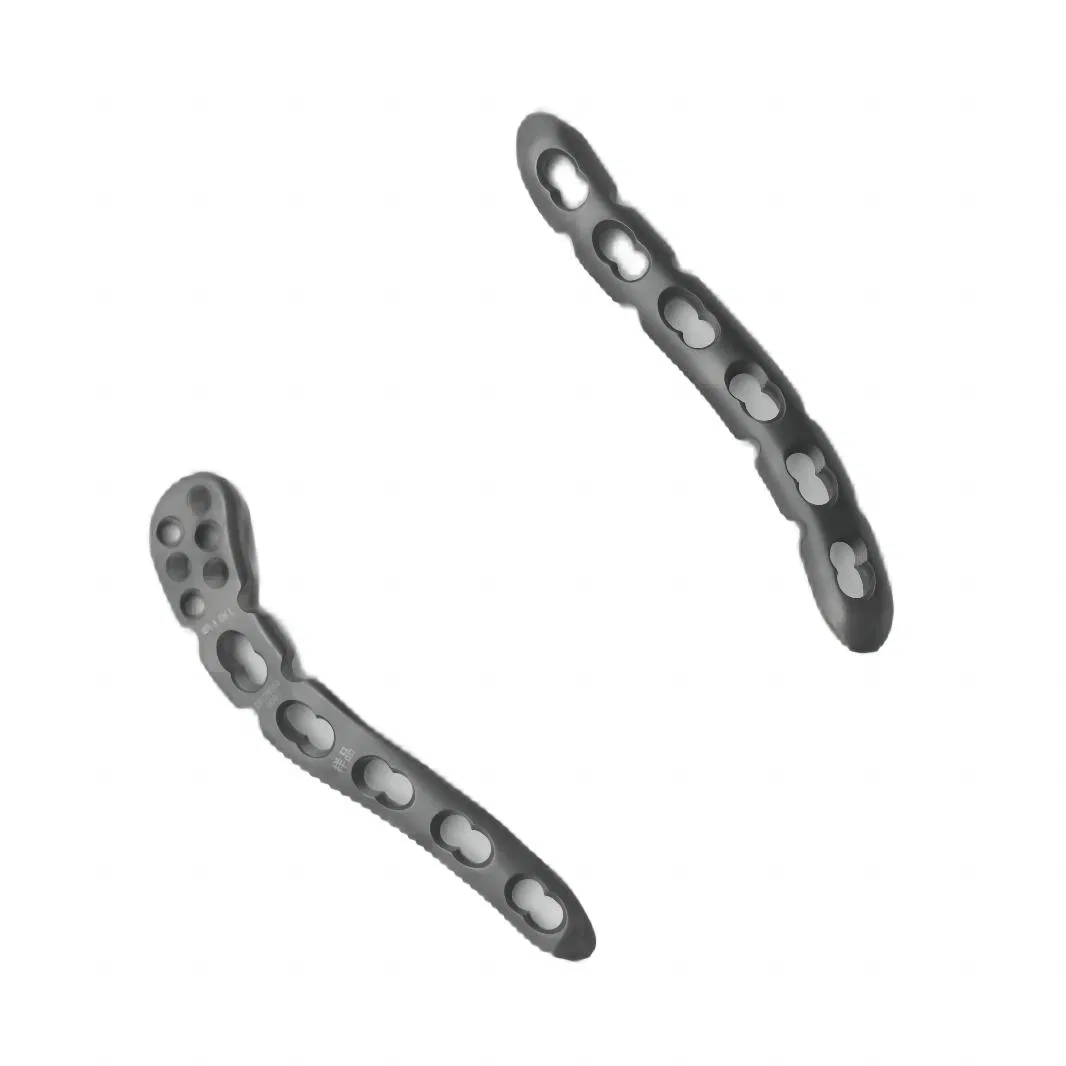

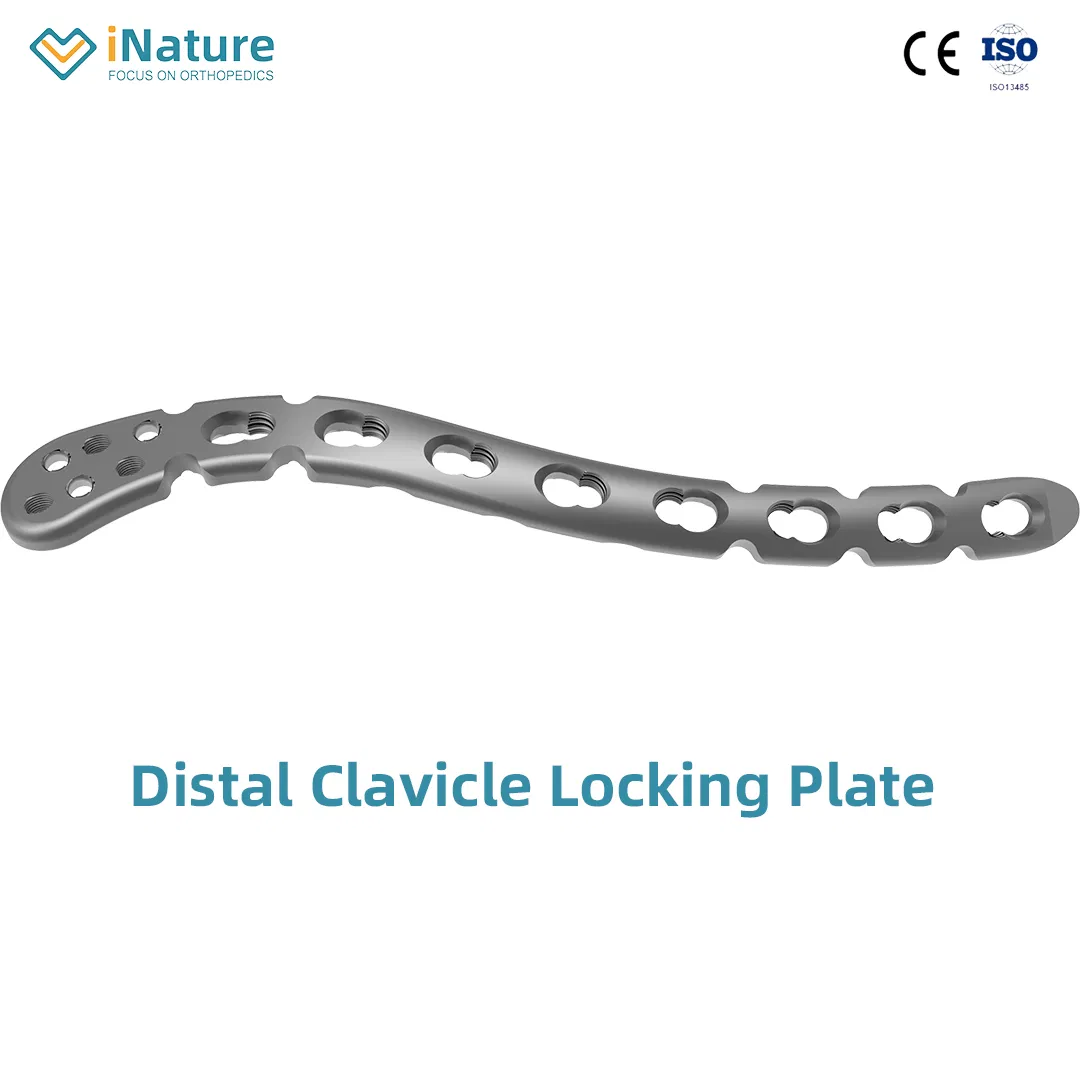

Distal Clavicle Locking Plate

Code: 251600

Width: 10mm

Thickness: 3.3mm

Material: TA3

Screw Size: Head: HC2.4/2.7 | Body: HC3.5, HA3.5, HB4.0

Excellent anatomic pre-shaped design.
Round blunt edge design can reduce the irritation to the soft tissue.
Reduction design can be easy bending in the operation.
Distal screw with decreased diameter can increase the stability and pull-out strength.

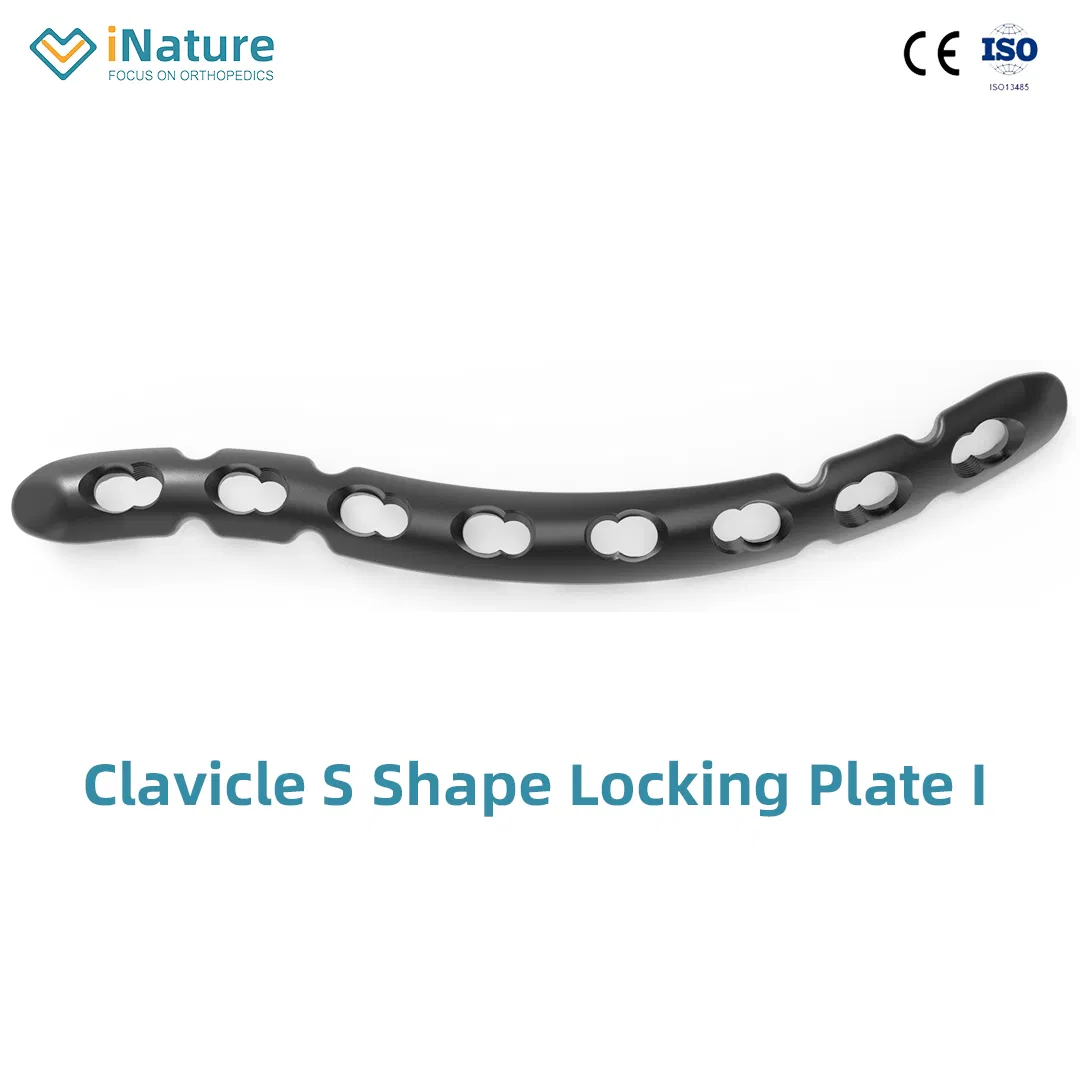

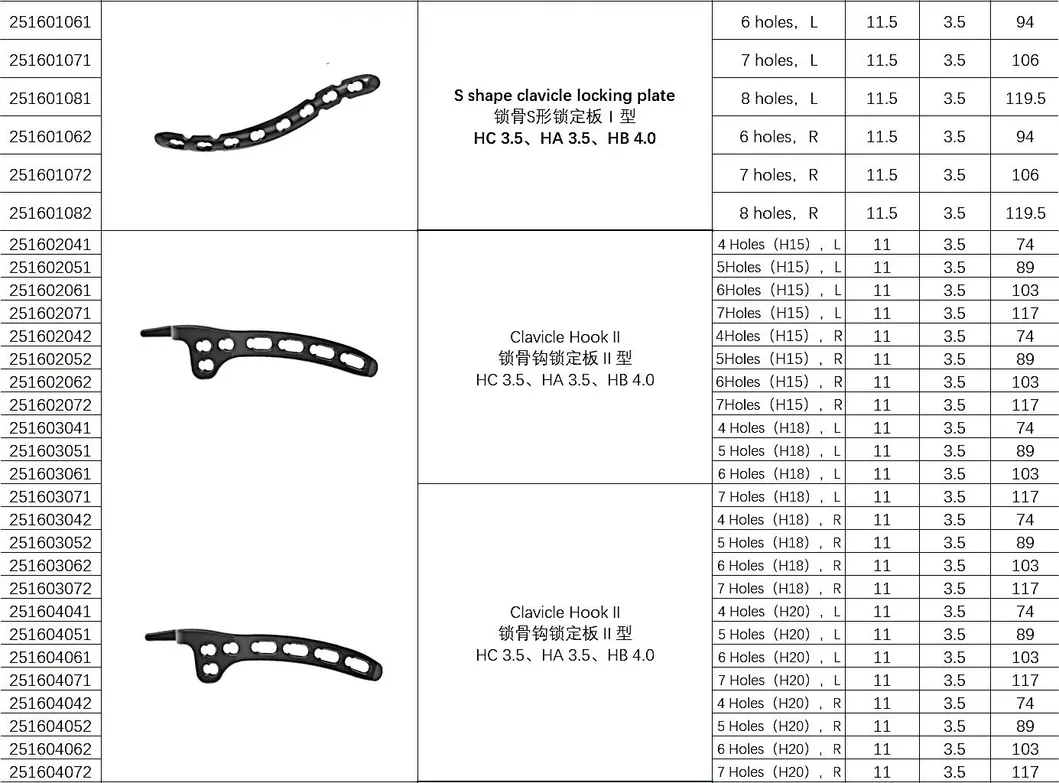

S Shape Clavicle Locking Plate I

Code: 251601

Width: 11.5mm

Thickness: 3.5mm

Material: TA3

Screw Size: HC3.5, HA3.5, HB4.0

The anterior S design is more suitable for clavicle biomechanics.
Excellent anatomic pre-shaped design.
Round blunt edge design can reduce the irritation to the soft tissue.
Reconstruction design can be easy bending in the operation.

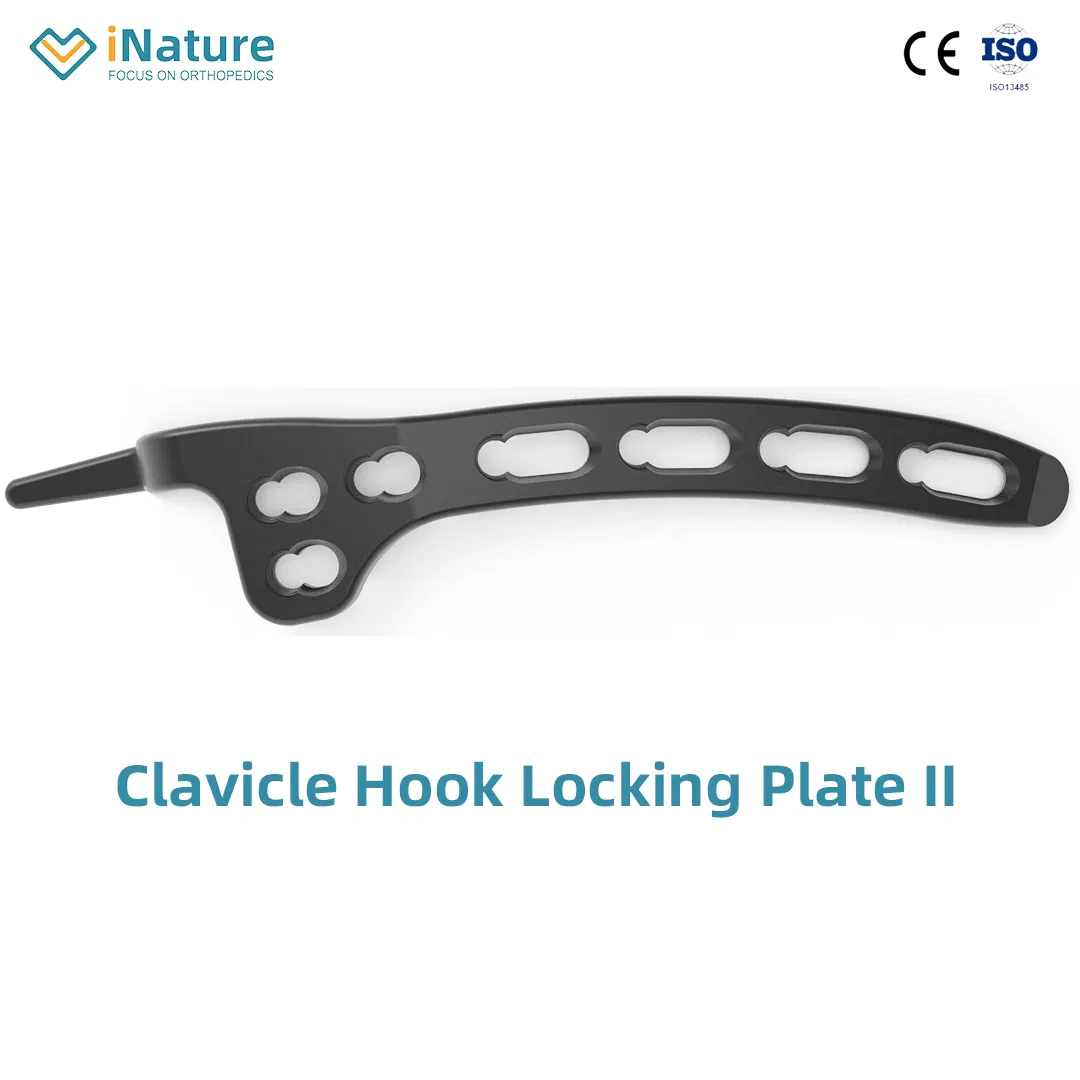

Clavicle Locking Plate II

Code: 251602

Width: 11mm

Thickness: 3.5mm

Material: TA3

Application: Acromioclavicular joint dislocation, lateral fracture of clavicle.

Excellent anatomic pre-shaped design, 12° angle fit the bone surface well.
Provide 4pcs length and 3pcs hook height.
Round blunt hook design can reduce the acromion impact.

📊

Technical Specifications

Radius Locking Plate System

Code	Name and Screw	Specification	W (mm)	T (mm)	L (mm)
251709020	Radius Locking Plate (Head 6 Holes) HC 2.4/2.7 HA 2.5/2.7	2 Holes, L	8.5	1.7	36
251709030		3 Holes, L	8.5	1.7	45.5
251709040		4 Holes, L	8.5	1.7	55

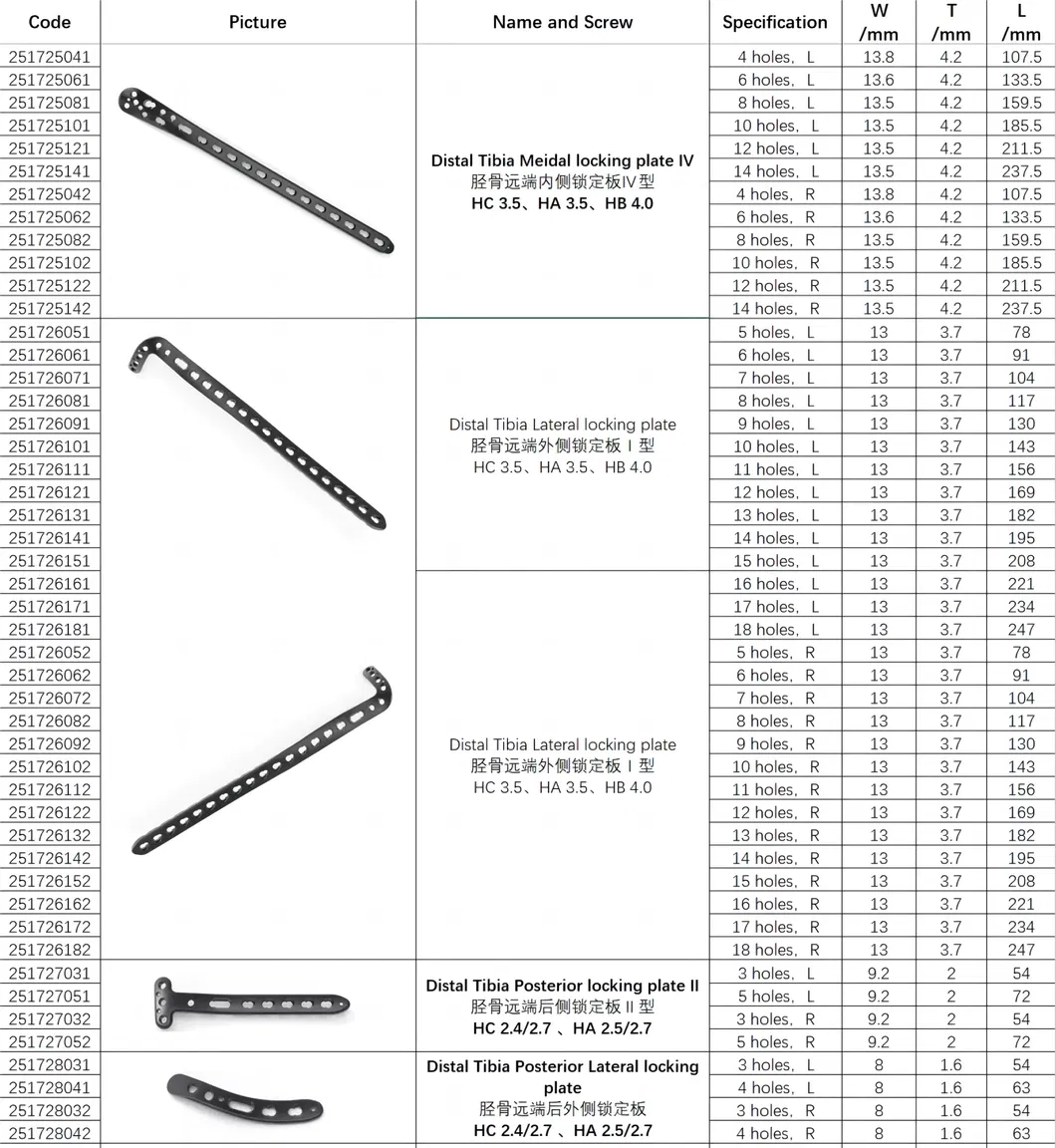

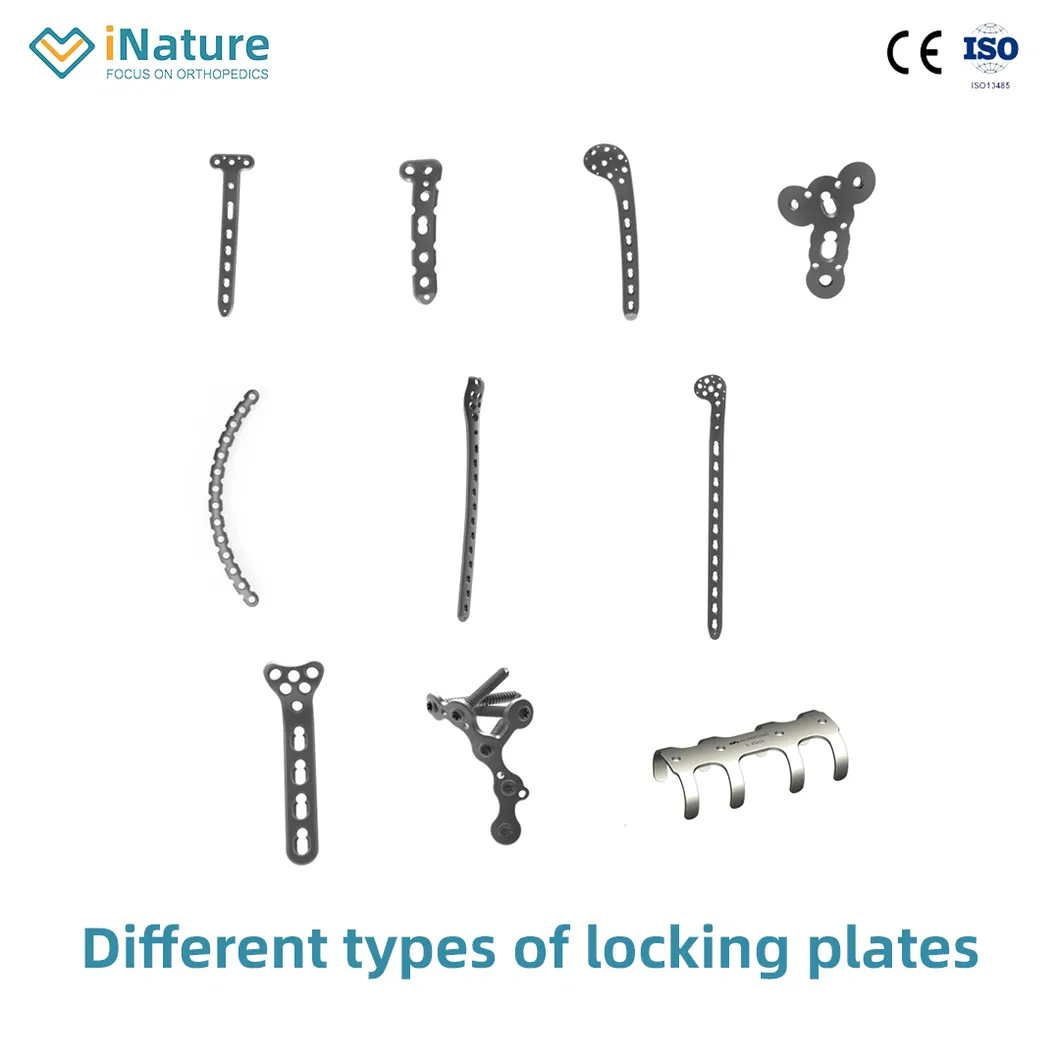

Additional Plate Systems Overview

Name and Screw	Code	Specification	W (mm)	T (mm)	L (mm)
3.5 Hook Locking Plate	251714030	3 Holes	10	1.6	62
Distal Humeral Lateral Locking Plate	251711031	3-11 Holes, L/R	10	3	95-199
Distal Humeral Medial Locking Plate I	251710021	2-11 Holes, L/R	10	3	82-199
Calcaneal Locking Plate III	251514011	Large/Medial/Small	/	2	59.7-71.9
X-Type Locking Plate	251522010	4 Holes (Various sizes)	14-20	1.5-2.5	22-36

📸

System Overview & Quality

Frequently Asked Questions

Q1: What materials are used for the locking plates? A: The plates are primarily manufactured from high-quality Pure Titanium (TA3), known for its excellent biocompatibility and mechanical strength.

Q2: Which certifications do your orthopedic implants hold? A: Our products are certified under CE and ISO 13485 standards, ensuring they meet rigorous international medical device quality requirements.

Q3: Do you offer OEM services? A: Yes, OEM services are accepted to meet specific design and branding requirements for our global partners.

Q4: Are the plates available in different sizes? A: Yes, we provide a wide range of specifications, typically ranging from 3 to 11 holes, available in both Left and Right anatomical configurations.

Q5: What is the warranty and after-sales support? A: We provide a one-year warranty on our implants and offer continuous online technical support to assist medical professionals.

Q6: What are the packaging options for these plates? A: We offer both Sterile and Non-Sterile packaging options to suit different surgical and logistical needs.
