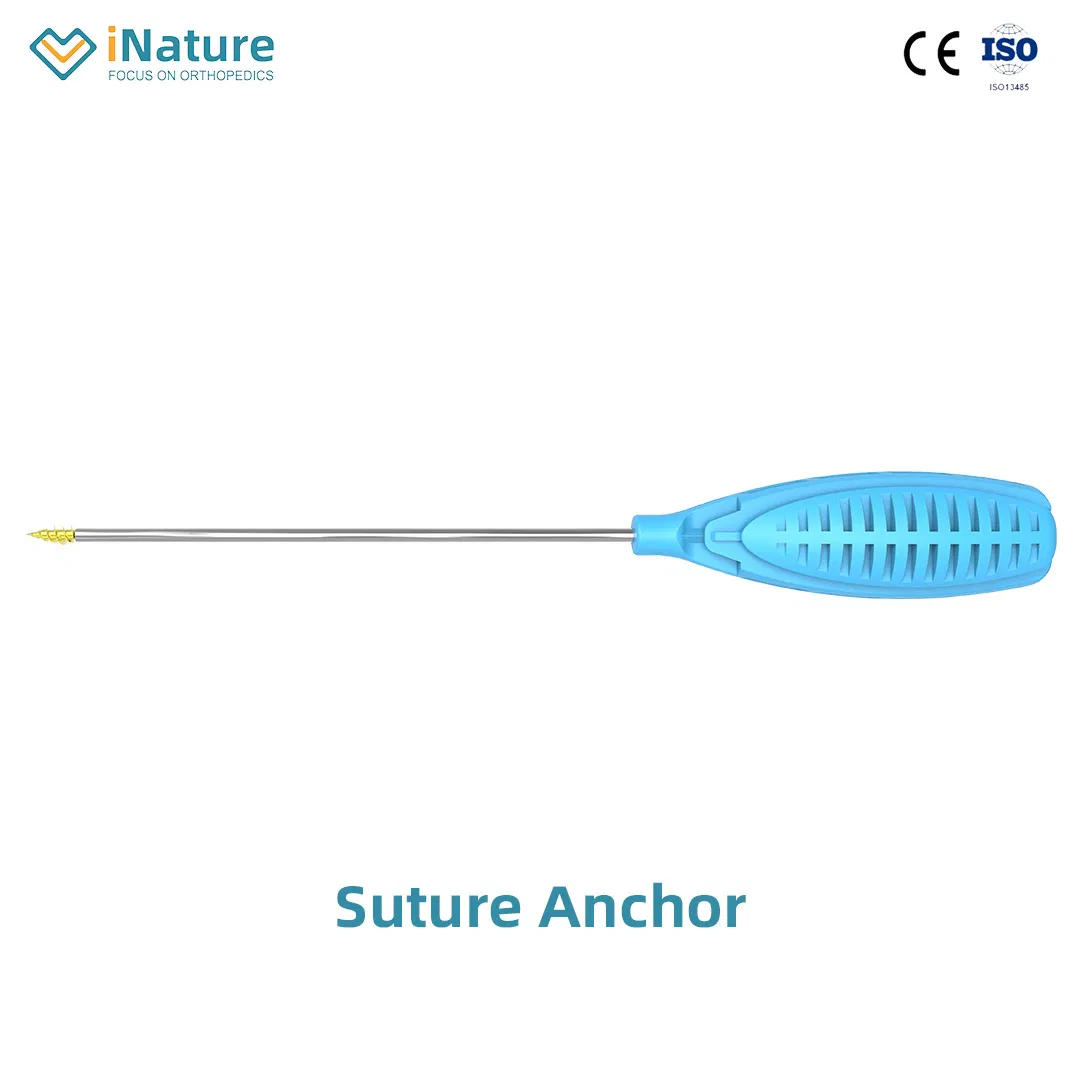

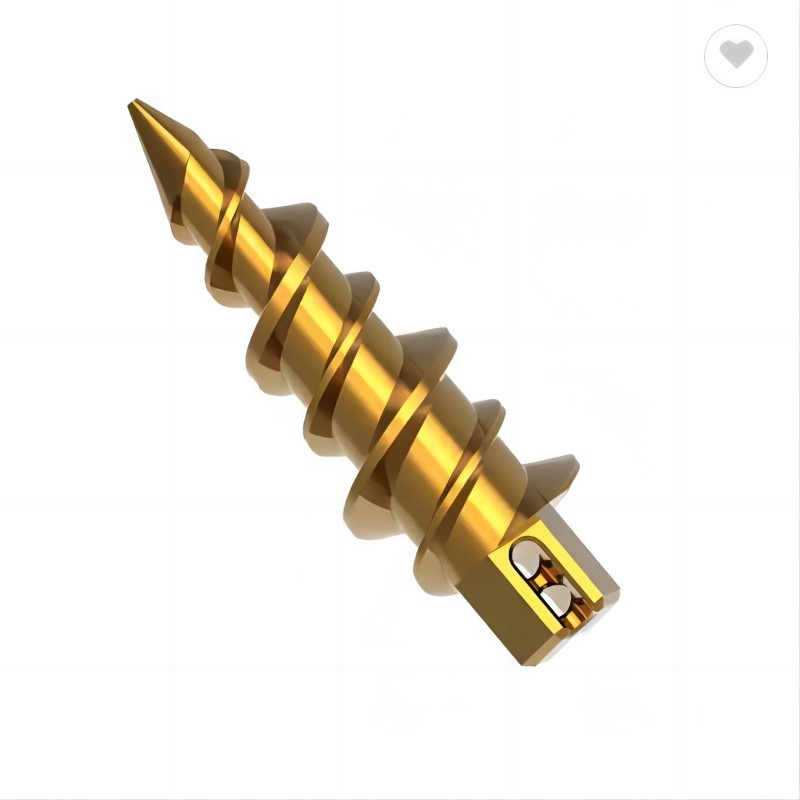

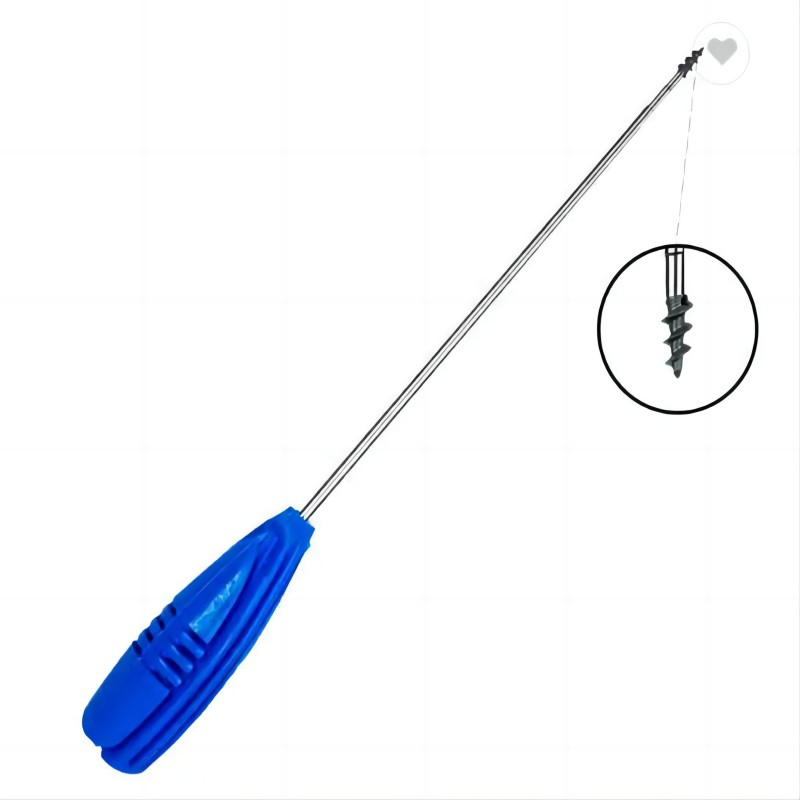

A suture anchor is a precision-engineered implant designed to fix sutures within the bone, effectively reconnecting soft tissue and bone structures. This fully threaded anchor features centralized suture holes, providing maximum flexibility for working sutures. The design minimizes bone removal during guide hole creation without compromising pullout strength.
| Parameter | Details |
|---|---|
| Size Range | 2.8 MM to 6.5 MM |
| Material Composition | Titanium & Peek |
| Compliance Standard | CE ISO & GMP Certified |
| Specification | Outer Diameter (mm) | Anchor Length (mm) | Total Length (mm) | Suture Spec |
|---|---|---|---|---|
| T12-φ2.0×7.5 | φ2.0 | 7.5 | 184.3 | 2 #0 |
| T12-φ2.8×11.5 | φ2.8 | 11.5 | 251.4 | 1 #2 |
| T12-φ3.5×12 | φ3.5 | 12 | 255.2 | 2 #2 |
| T12-φ5.0×15.5 | φ5.0 | 15.5 | 257.5 | 2 #2 |
| T12-φ6.5×16.3 | φ6.5 | 16.3 | 260.7 | 2 #2 |
Easy operation with multi-angle implantation. Provides flexibility and allows for double implantation during surgery.
Head of the anchor is designed to reduce friction during the surgical procedure, protecting the suture integrity.
Offers excellent biocompatibility, ensuring safe and long-term integration with bone tissue.
No need for pre-drilling. The sharp design allows for direct and easier implantation into the bone.
High and low threads provide stronger torsional strength and pull-out resistance with quicker screw-in time.
Scope of Use: These surgical implants are specifically designed for attaching soft tissues (tendons and ligaments) back to the bone. They consist of an anchor body, high-strength suture, and an eyelet interface.
Composition: The sutures utilize ultra-high molecular weight polyethylene (UHMWPE) and polyester composite braids, offering superior mechanical properties and handling convenience for surgeons.
