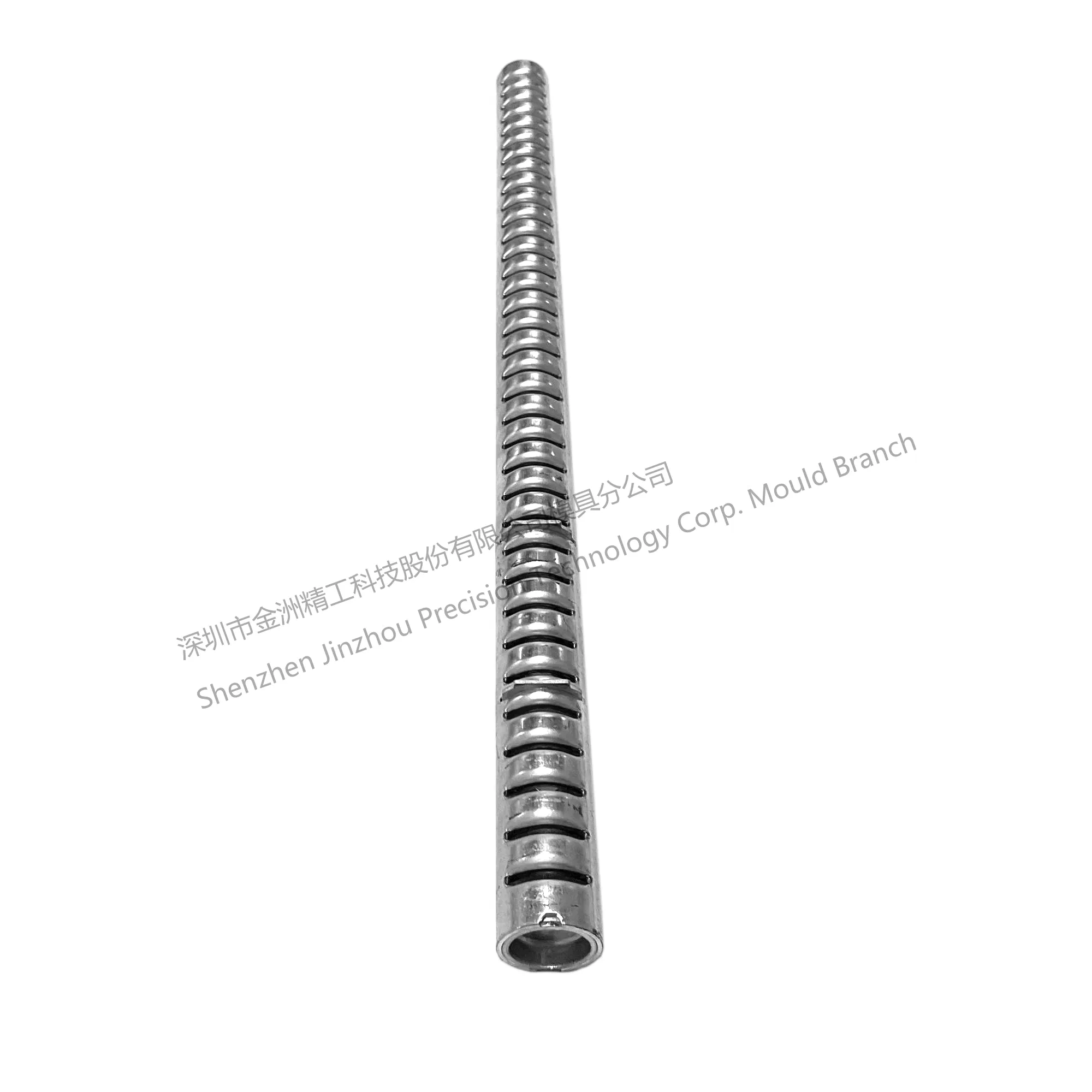

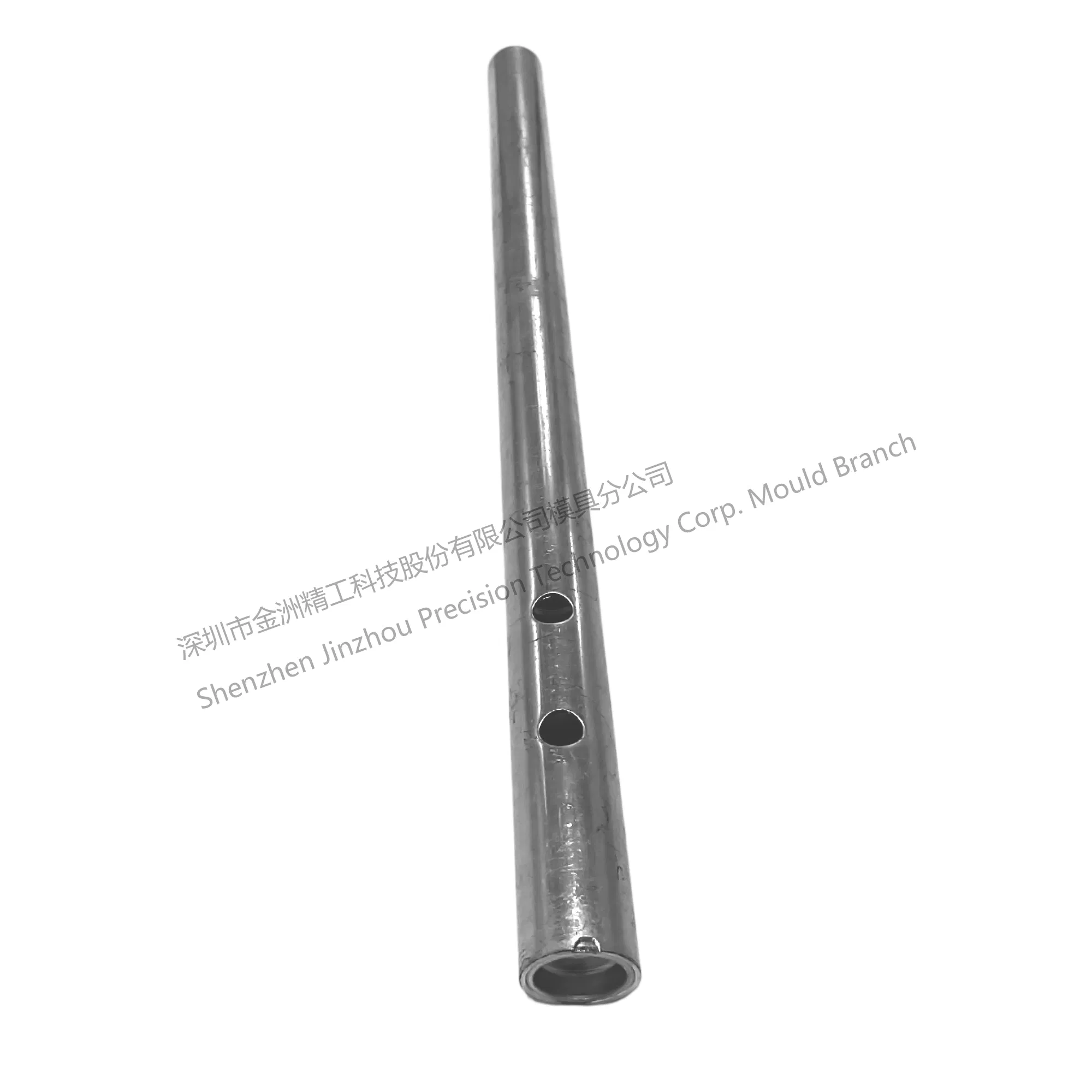

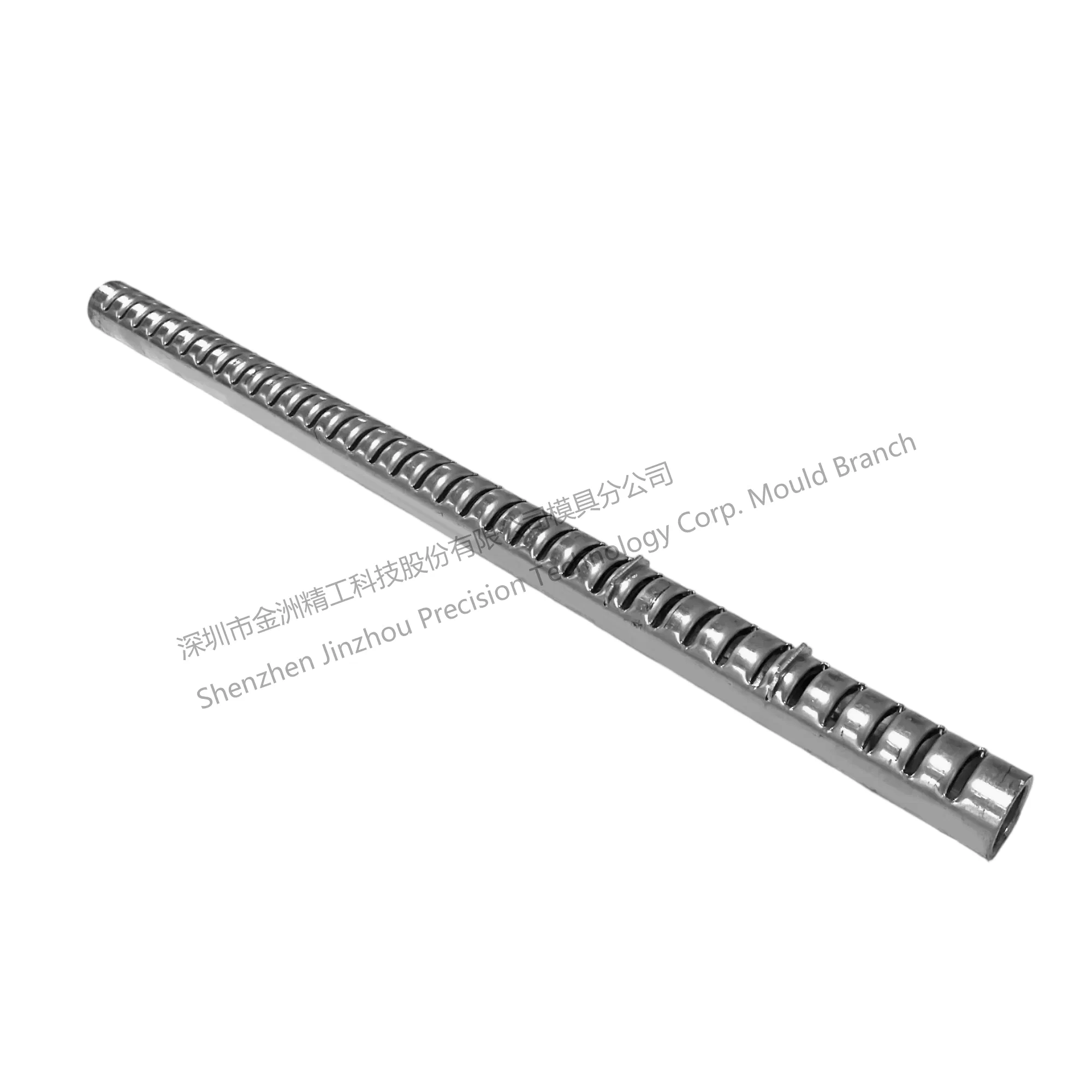

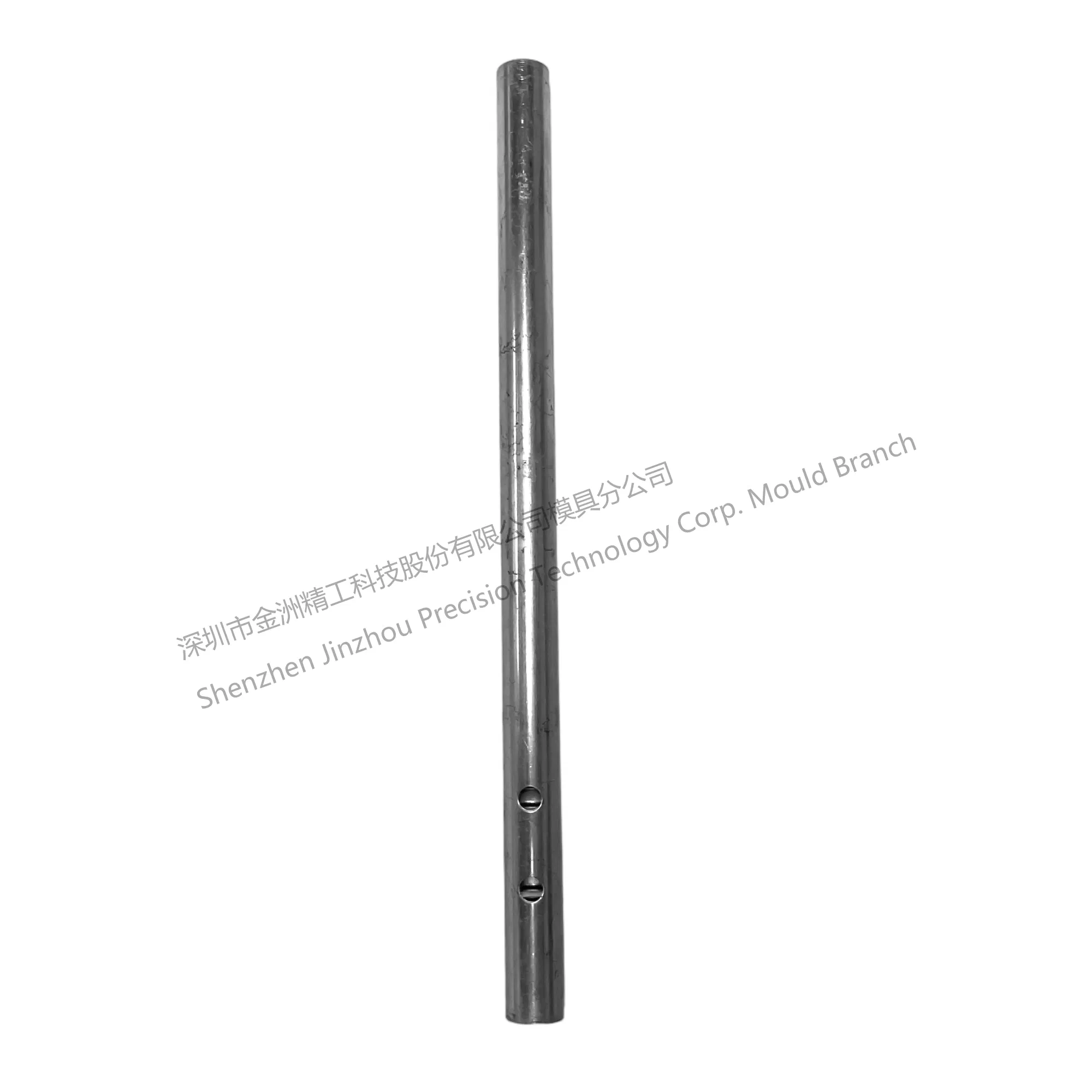

High-Altitude Compensated Stamping System for Thin-Wall Manifolds (MIL-STD-704F)

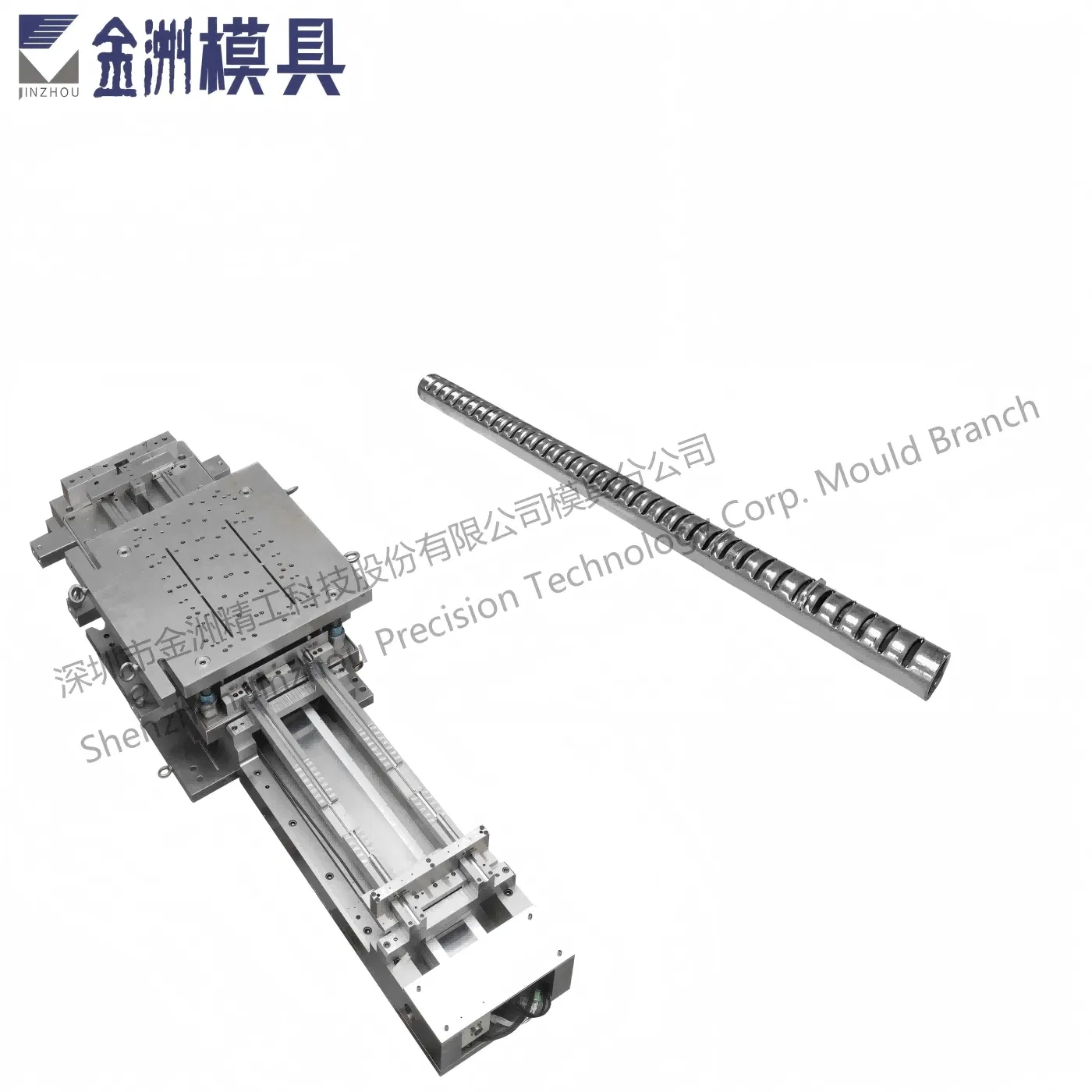

Automotive HVAC Manifold Precision Die System
Integrating laser-guided KINSTAMP® progressive dies (CMM ±0.003mm) with NanoArmor™ 8μm DLC coating (HV3800), this system maintains 0.8-1.2mm wall uniformity in 6063-T5/3003 alloy tubes across 10M+ cycles. AI-driven control dynamically adjusts 200-1200kN stamping force and monitors 23 parameters, achieving 95% OEE through predictive wear algorithms. The HyDRA™ hydroforming module shapes 0.3-0.5mm SUS304/C1220T alloys (±0.05mm) at 45 strokes/min, with IR thermal fracture prevention. Compatible with R134a/R744 refrigerants, it ensures ISO 8573-1 Class 8 cleanliness via in-die HEPA filtration.
Core features include 15-min quick mold change (VDI 3323-2015), 30% energy efficiency gains, and multi-material adaptability for Φ8-25mm aluminum/copper/steel tubing. Certified for closed-loop lubricant recycling and EV/heavy-duty thermal systems.

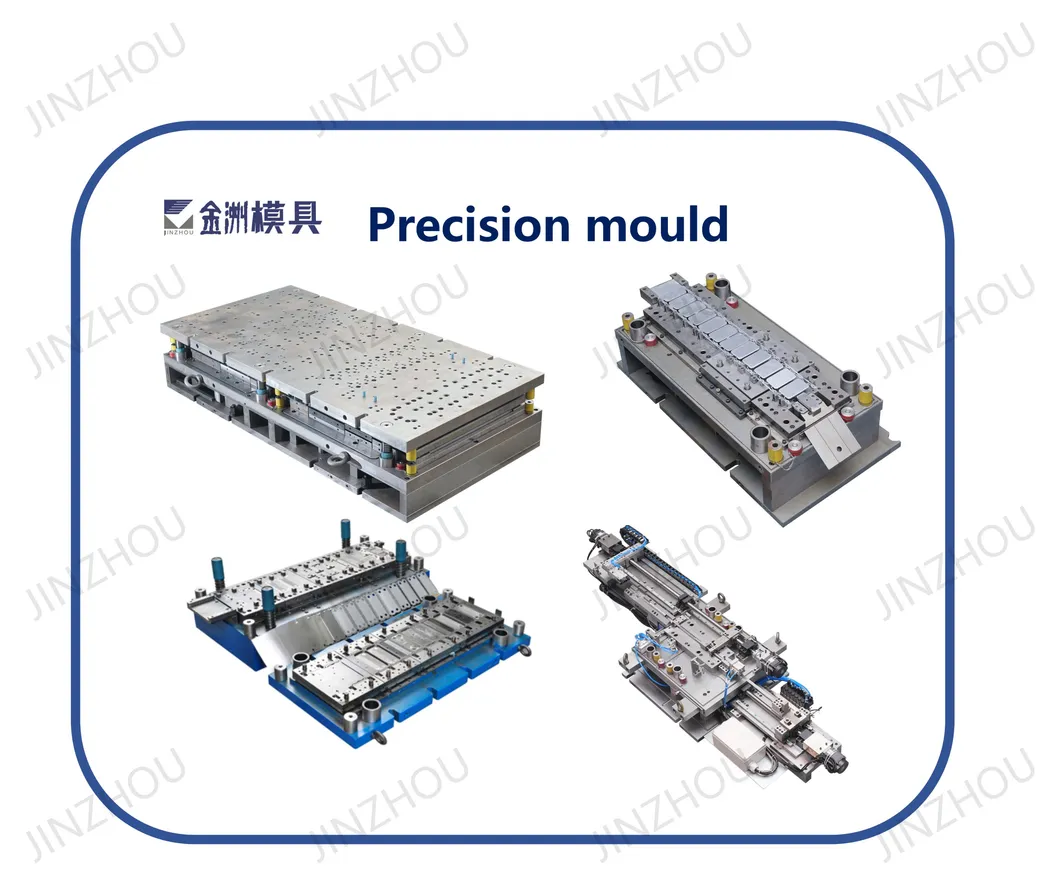

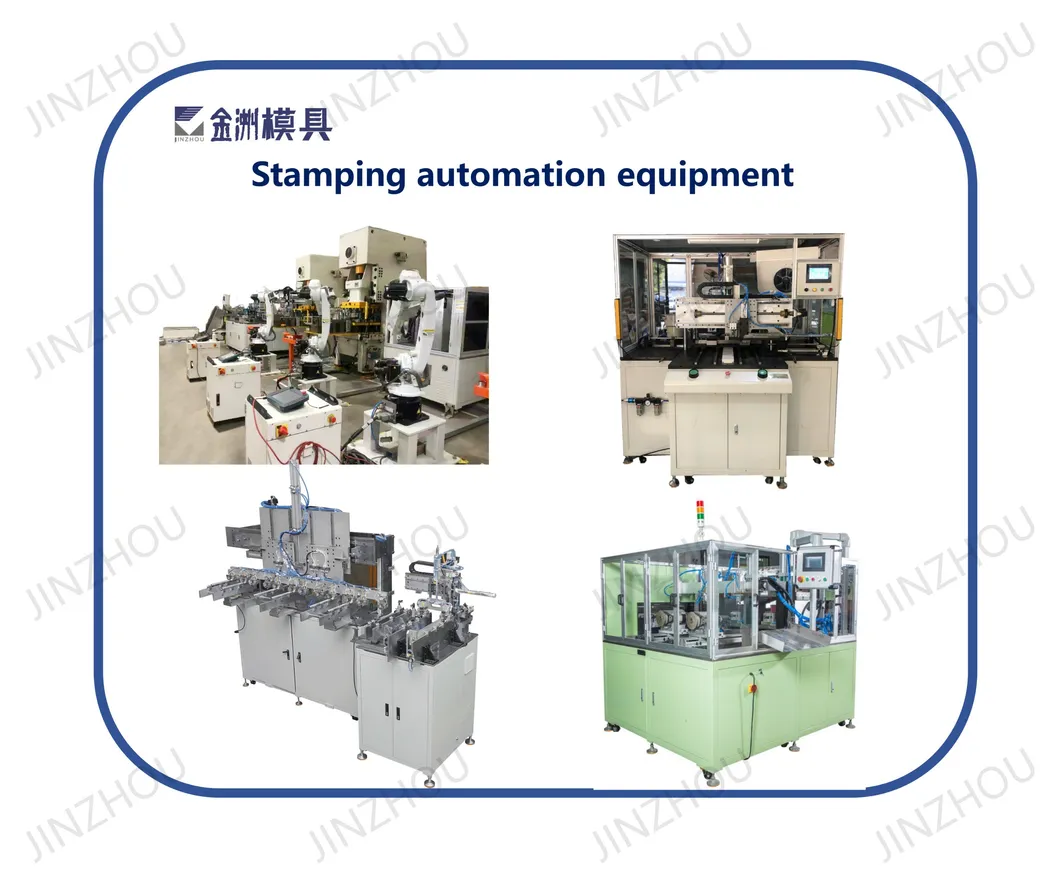

We stand as a beacon of innovation and expertise, positioned as a high-tech enterprise specializing in the production of precision stamping molds for automotive heat exchange systems and stamping automation equipment. Our team of engineering professionals is proficient in mold design and manufacturing.
Over the years, our operations have consistently achieved ISO9001, ISO14001, and IATF16949 certifications. Serving a wide array of industries, our products—including automotive air conditioning evaporators, radiators, condensers, heater cores, and advanced thermal management systems for new energy batteries—are celebrated globally for their quality and reliability.
