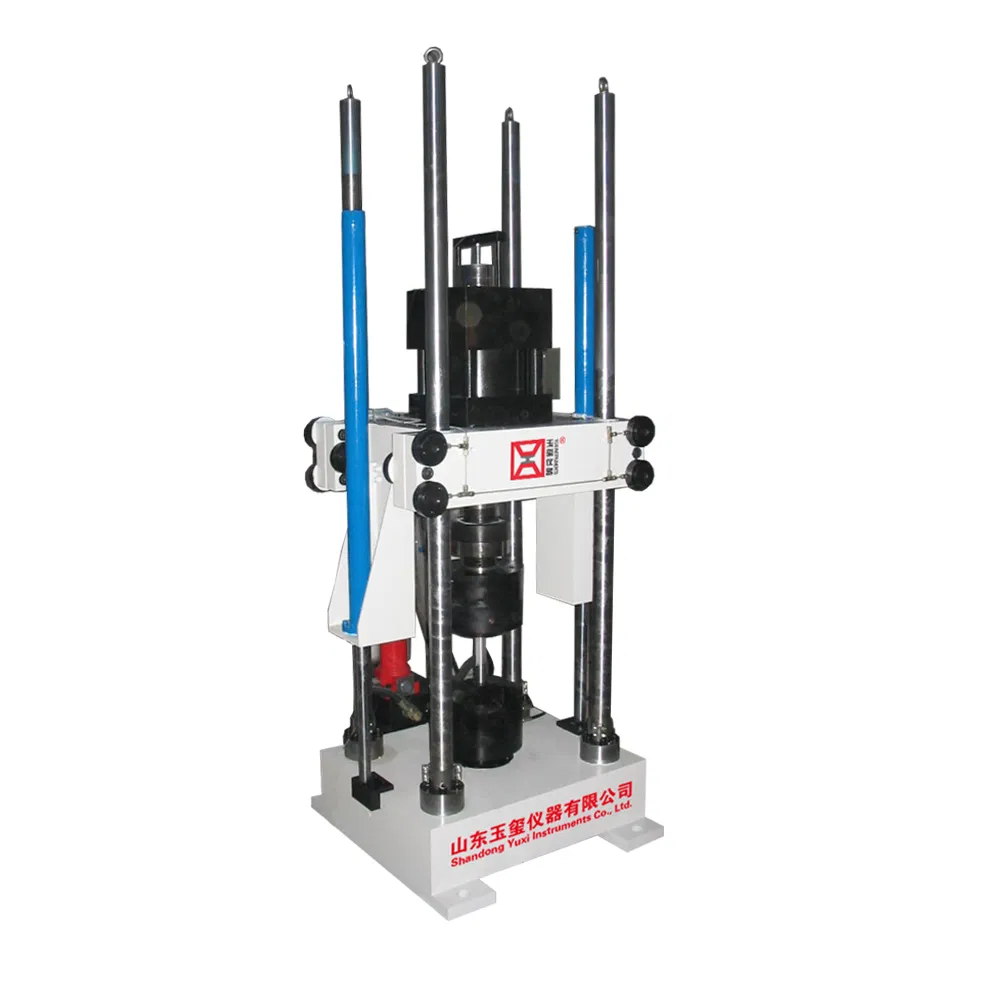

Dynamic Load Fatigue Tester/Testing System

Customization: Available
After-sales Service: 7*24 Hours
Warranty: 1 Year

Product Description

■ Basic Information
Model NO.
DFT
Max Diameter
1000mm
Mass Scope
6000kg
Type
Fatigue Testing Machine
Max Capacity
>1000KN
Accuracy Grade
0.5
Load Way
Electronic Load
Loading Method
Dynamic Load
Display
Digital
Control
Computer Control
Power Source
AC380V
Software
Dynamic and Static Software
■ Product Description
Dynamic Load Fatigue Testing System: The electro-hydraulic servo dynamic testing system consists of a frame, pump station, servo control system, computer and software, accessories, and pipeline system. It is designed for dynamic fatigue and static performance testing of various materials, structural parts, and components.
■ Application Fields
  • Dynamic high cycle fatigue test and low cycle fatigue test.
  • Conventional mechanical property test and fracture force test under static constant rate, strain, and stress control.
  • Part vibration and impact testing.
  • Fatigue life, crack growth, and fracture toughness performance tests for materials or components.
  • Safety evaluation and working condition simulation of actual specimens.
  • Applicable to aerospace, aviation, vehicles, building components, rail transit, atomic energy, and shipping industries.
■ Key Features
  • Frame Structure: Dual columns (Below 300KN) and four columns (Above 300KN).
  • Crosshead: Hydraulic tightening, lifting, and descending for flexible test space adjustment.
  • Actuator: Integrated design with the frame; can be positioned up or down.
  • Capacity Range: Wide selection from 5kN to 5000KN.
  • Sensors: Built-in LVDT displacement sensor and external load sensor electro-hydraulic servo valve.
  • Safety: Hydraulic buffer at actuator limit positions to prevent damage.
  • Accessories: Customizable grips including hydraulic clamping, threaded chucks, and bending accessories.
  • Pump Station: Constant pressure servo pump stations ranging from 15-1500L/min.
  • Control Systems: Digital Electro-Hydraulic Servo Control with optional IST or DOLI systems.
  • Environment Testing: Optional high-temperature furnaces and low-temperature chambers.
■ Certifications & Patents
Certification 1
Certification 2
  • ISO 9001-2015 Quality Management System Certification.
  • Brake caliper adjusting mechanism for real sample friction tester.
  • Mechanical performance testing machine for dip net.
  • Static load testing machine for concrete sleepers.
  • Weld seam detection synchronous crawling device.
■ Packaging & Shipping
Packaging
■ Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a manufacturer with our own R&D team and ISO 9001 certification, as well as a trading company representing international testing instrument brands.
What are your payment terms?
We accept T/T, L/C at sight, credit cards, and other negotiable payment methods.
What is the expected lead time for orders?
Portable testers take 4-10 days; regular testing machines take 10-20 days; customized systems require 15-40 working days.
What is the warranty period for your equipment?
All our testing systems come with a standard one-year warranty.
What after-sales services do you provide?
We offer video and online technical support for portable tools. For large testing machines, we provide on-site installation and training by our engineers.
Do you accept customized requirements?
Yes, we provide solutions and customizations according to specific customer demands, standards, and sample tests.
