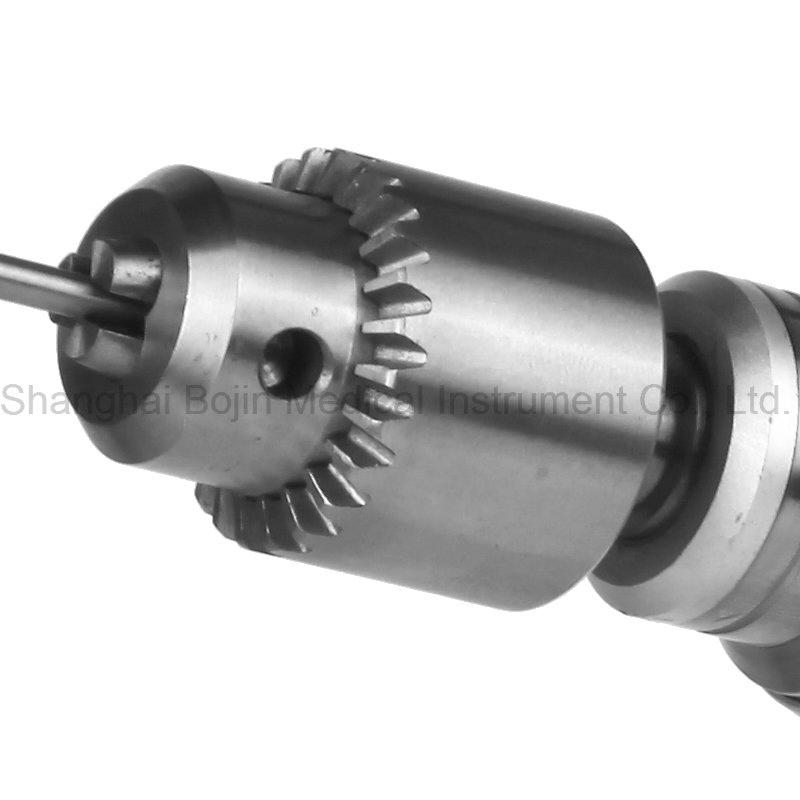

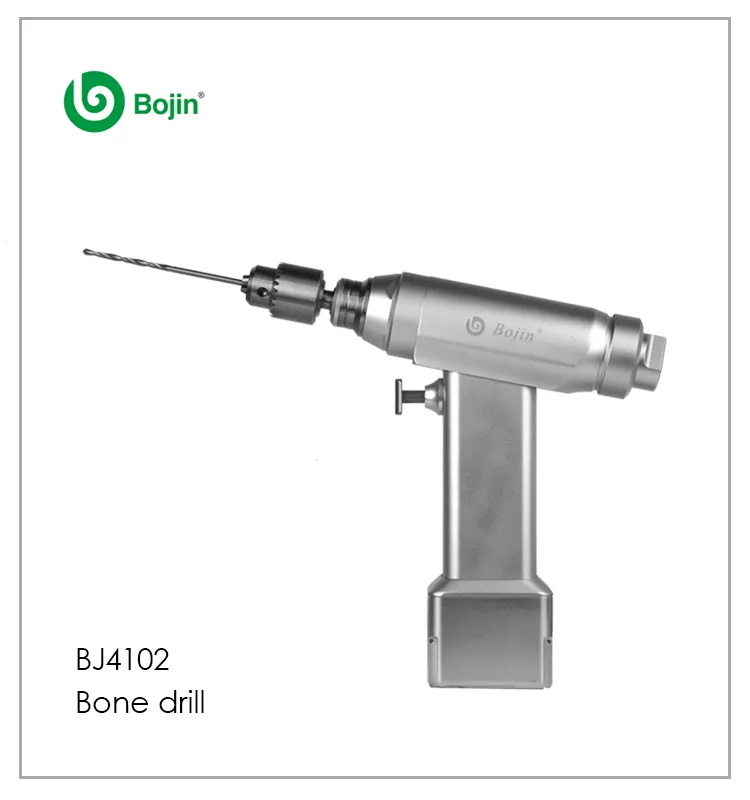

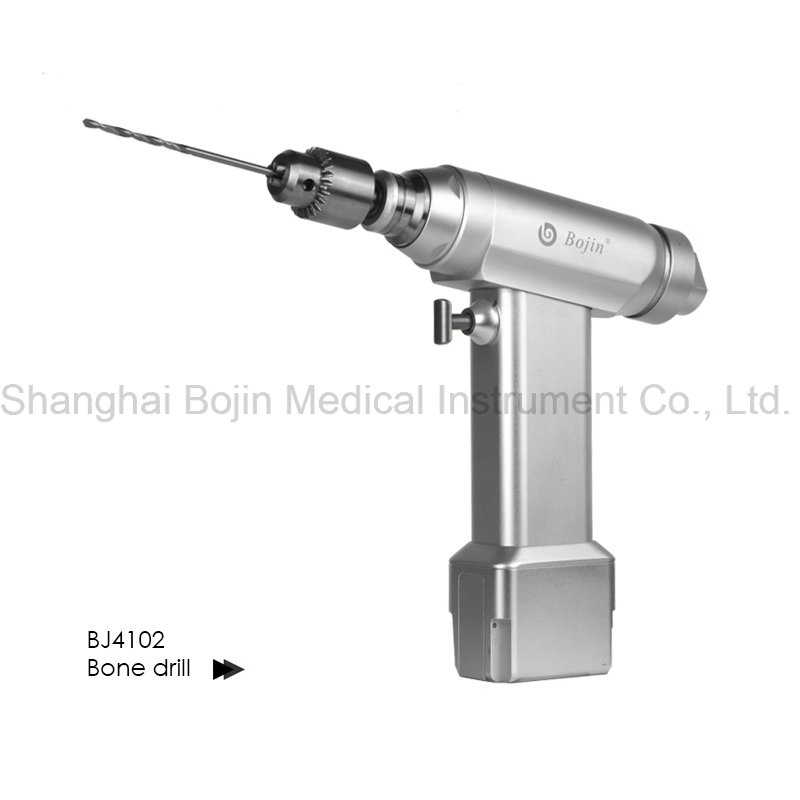

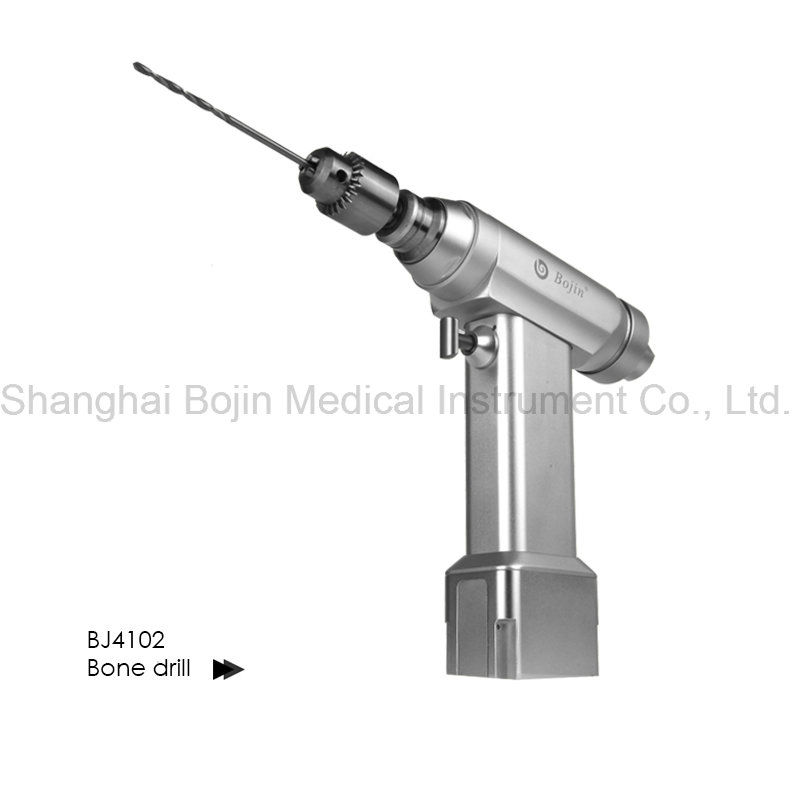

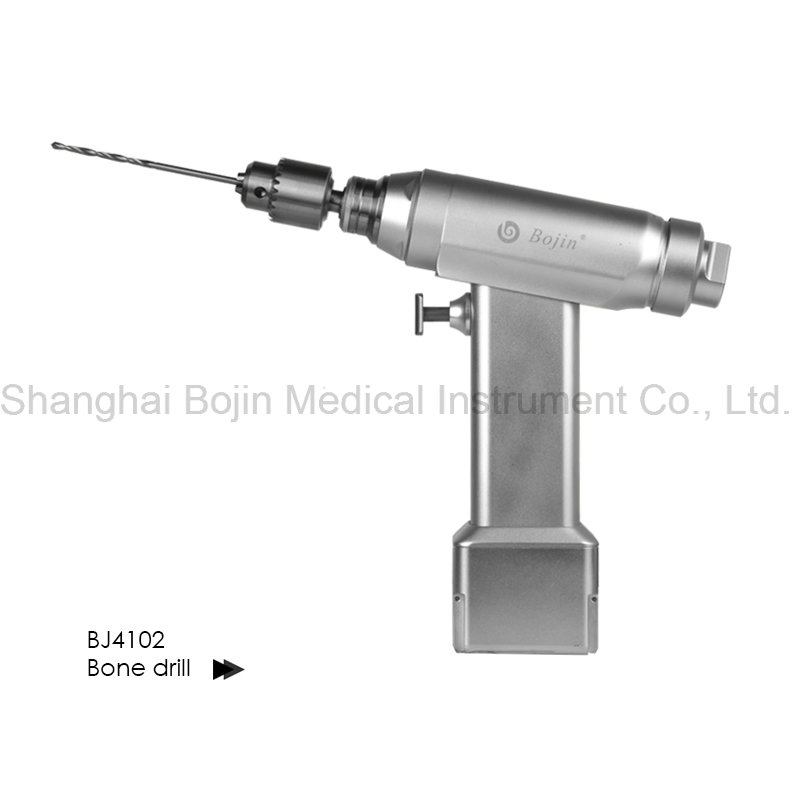

Cordless Orthopedic Bone Drill Surgical Power Tools (BJ4102)

1 / 5

Cordless Orthopedic Bone Drill Surgical Power Tools (BJ4102)

Customization:	Available
Type:	Drill
Application:	Orthopedic

Send Inquiry

Product Description

Basic Specifications

Model NO.

BJ4102

Material

Steel

Feature

Reusable

Certification

CE, FDA, ISO13485

Group

Adult

Name

Surgical Power Tools

Speed

0-1100 r.p.m

Battery

Rechargeable

Use for

Spine Surgery, Otology Surgery

Advantage

Lower Noise

Warranty

2 Years

Sterilization

155°C

Technical Parameters

Output power	110w
Speed (r.p.m)	1100
Torque (Nm)	3.2
Operation Voltage (V)	14.4
Sterilization	155°C
Noise (db)	≤75

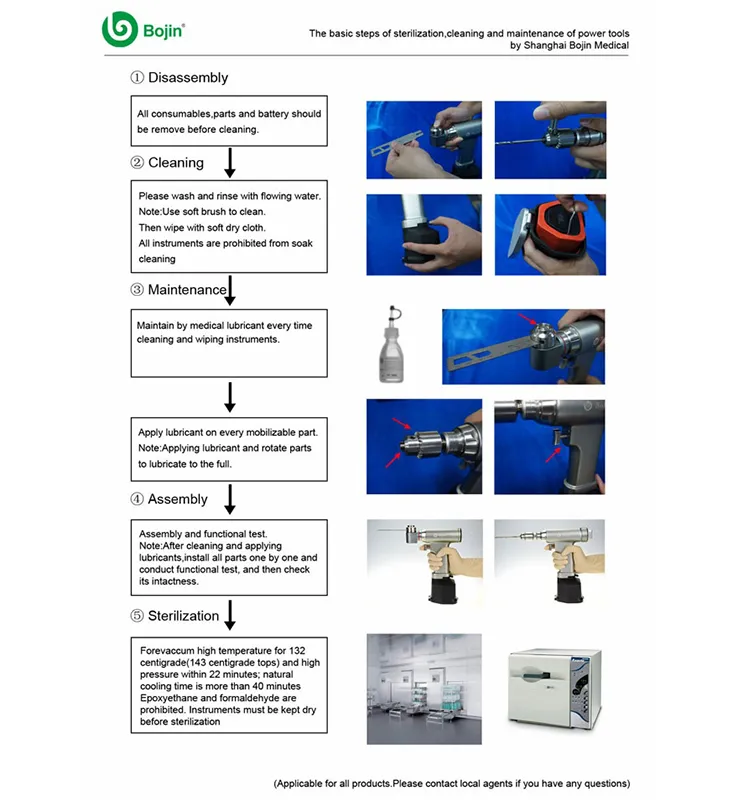

Usage & Maintenance Notes

Sterilize temperature should be ≤ 135 °C (Improved type ≤ 155 °C). Excessive temperatures may damage the motor.

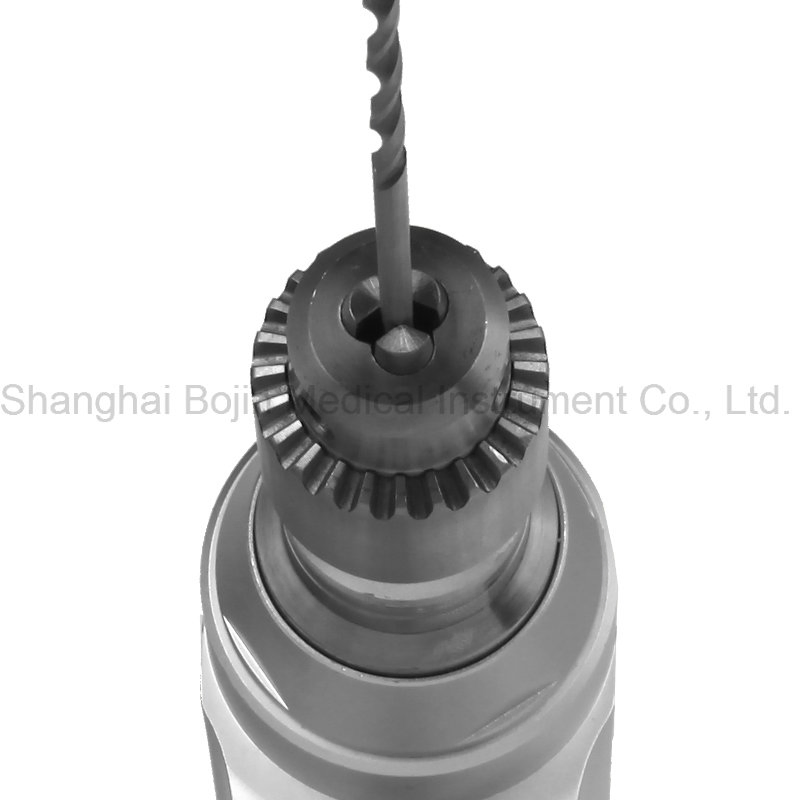

Normal bone drill holds bits < 6mm. Acetabulum reaming drills operate at ~300 rpm, while cannulated drills operate at ~600 rpm.

Remove the battery after surgery to prevent automatic discharge and maintain battery life.

The battery is not autoclavable and must not be sterilized.

Cranial burs must be washed immediately after surgery to avoid blood sticking, then dried thoroughly.

Ensure no water remains in the battery space of the handpiece after sterilization.

Burs are made of medical stainless steel; for optimal safety and performance, we suggest single-use for each blade.

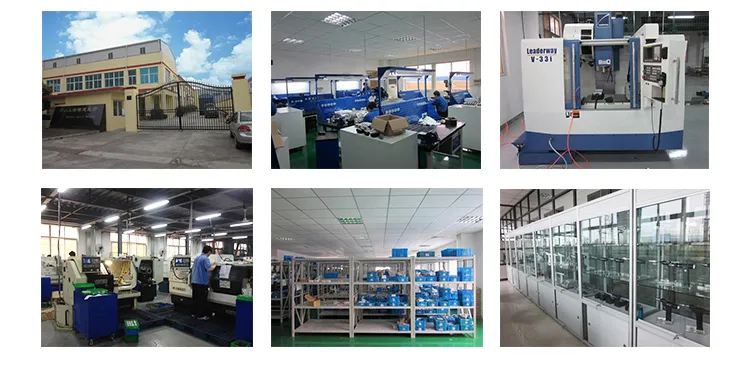

Professional Manufacturing

As an advanced orthopedic equipment manufacturer and solutions provider, we focus on the development and marketing of orthopedic-purpose motor products, X-ray imagescopes, treatment apparatus, and supporting surgical tools. Our range includes more than one hundred types of orthopedic products under 8 series, which have received QC certification of ISO9001, ISO13485, CE, and FDA Registry. Our products are utilized in more than 60 countries and thousands of medical institutions worldwide, providing innovative high-tech solutions for orthopedic health.

Frequently Asked Questions

What is the maximum sterilization temperature for the BJ4102?

The standard sterilization temperature should not exceed 135°C. However, improved types can withstand up to 155°C. Exceeding these limits can damage the internal motor.

Can the battery be sterilized in an autoclave?

No, the battery cannot be sterilized and is not autoclavable. It must be removed from the handpiece before the sterilization process begins.

What is the rotation speed and torque of this surgical drill?

The BJ4102 model features an adjustable speed ranging from 0 to 1100 r.p.m and provides a torque of approximately 3.2 Nm.

How should the device be maintained after surgery?

After surgery, remove the battery immediately to prevent discharge. Cranial burs should be washed instantly to prevent blood from sticking and then thoroughly dried. Ensure the battery compartment remains dry after sterilization.

What surgical procedures is this tool suitable for?

This surgical power tool is specifically designed for orthopedic procedures, including spine surgery and otology surgery.

What materials are used for the drill blades?

The blades are crafted from medical-grade stainless steel. They are designed to be flexible to avoid breaking during surgery, and for optimal hygiene and sharpness, we recommend using a new blade for each procedure.
