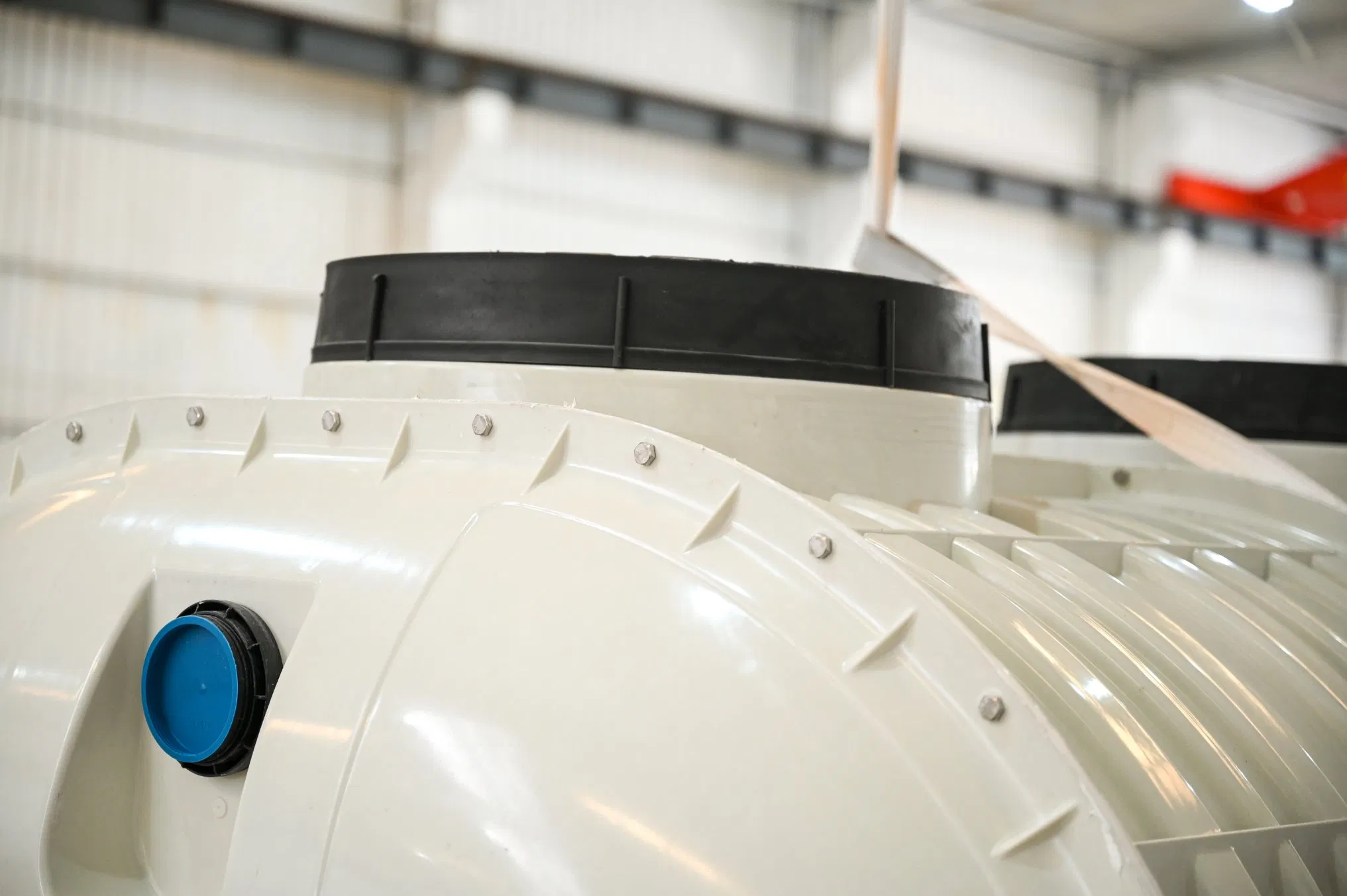

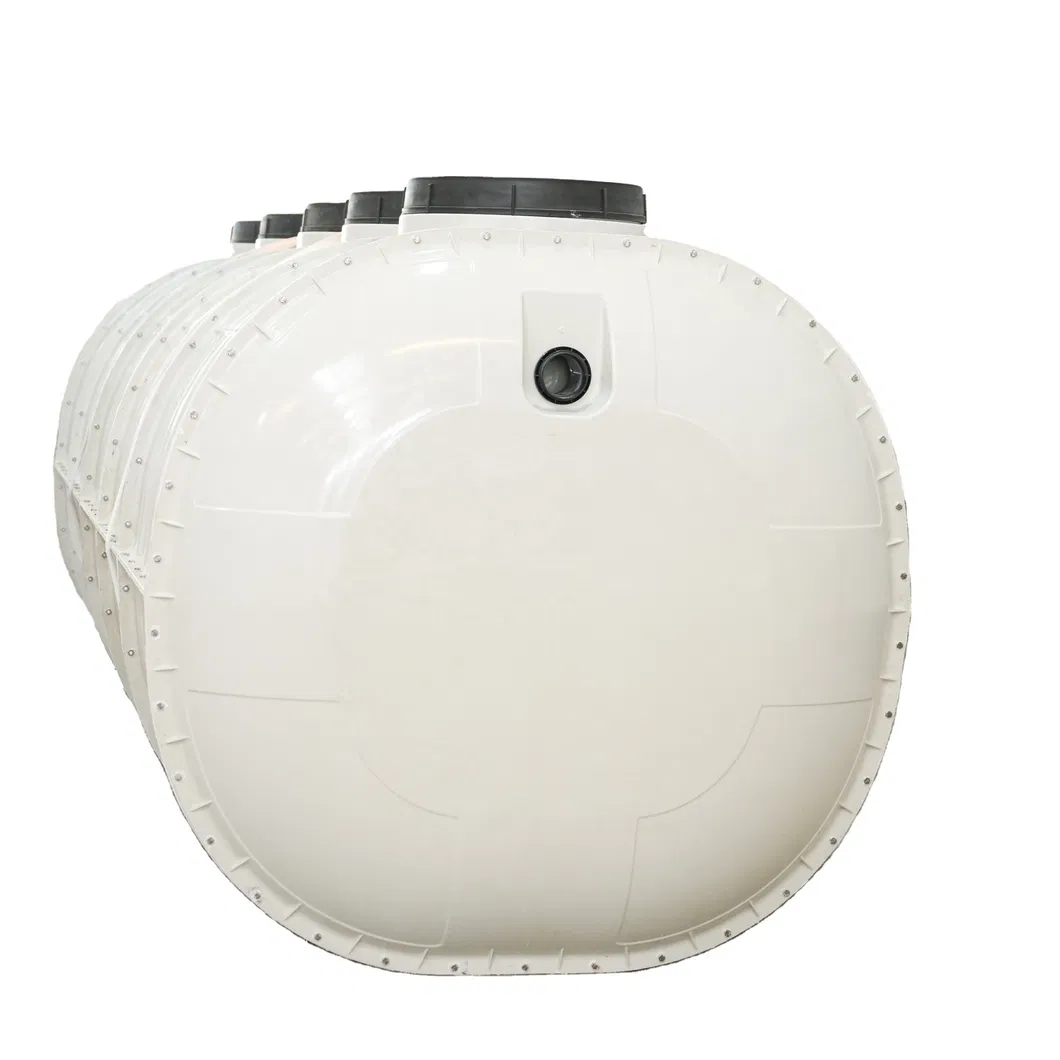

Wastewater Treatment Equipment - SMC Molded System

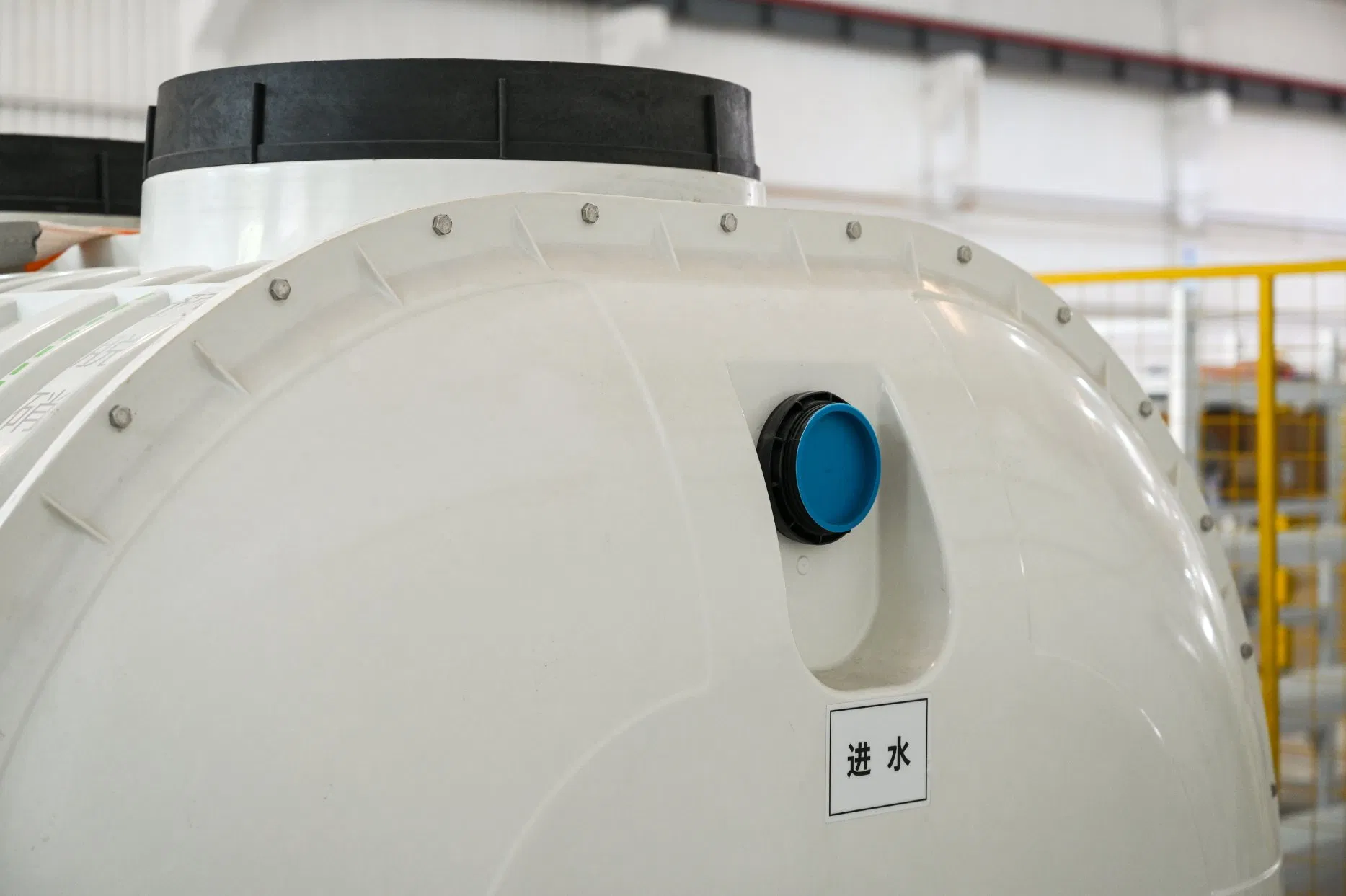

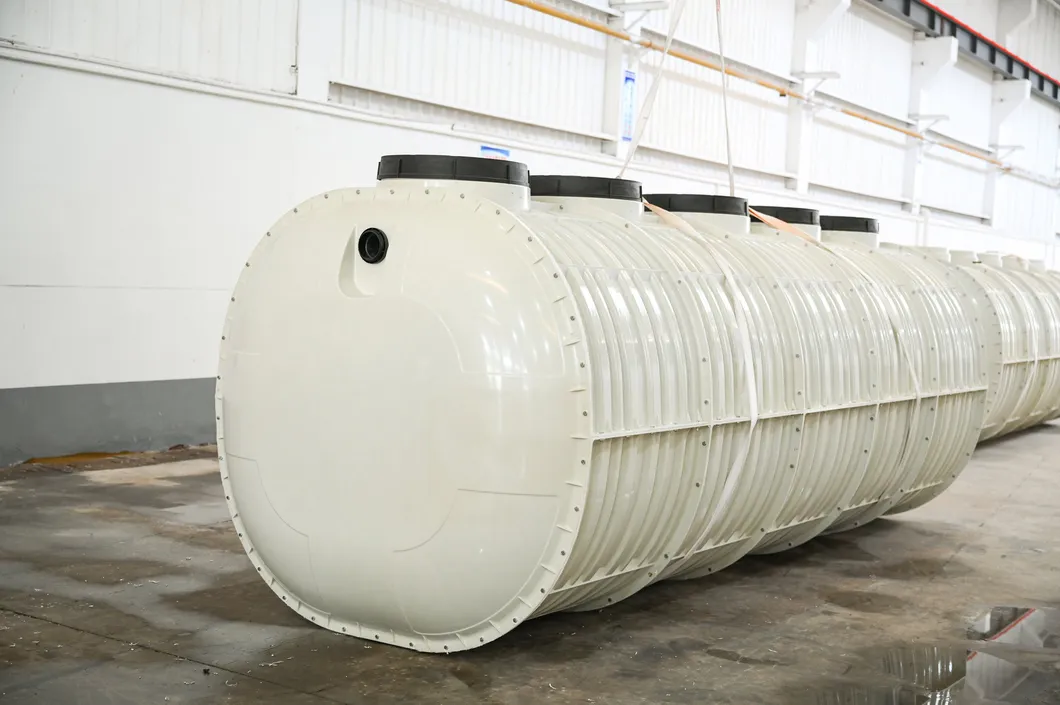

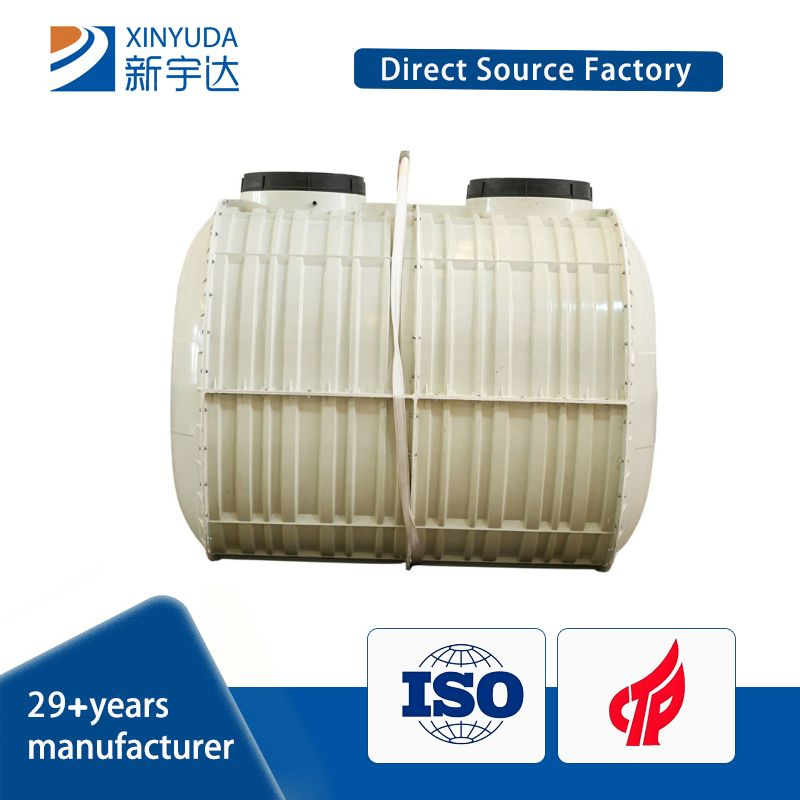

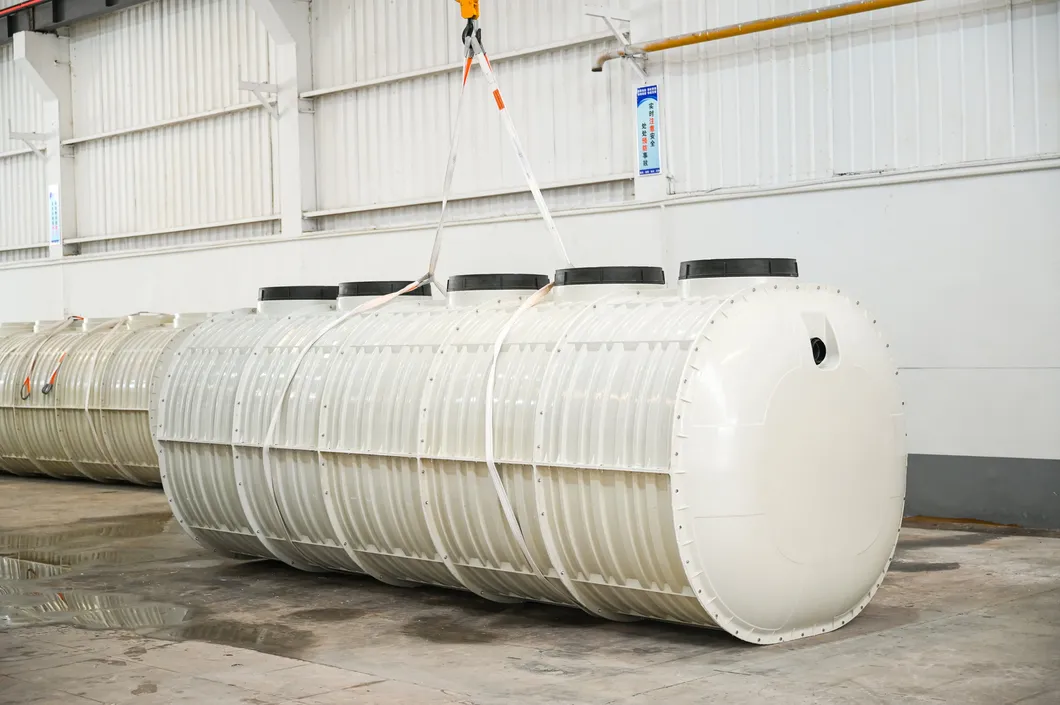

The sewage treatment tank is an upgraded product of an integrated domestic sewage treatment device, featuring high integration and multiple technological innovations. It is specifically designed for high-efficiency nitrogen and phosphorus removal.
SMC material adopts FRP mold casting process, which enhances mechanical property indices. The material provides superior durability and strength for underground environments.
| Name | Unit | Index |
|---|---|---|
| Density | g/cm3 | 1.75~1.95 |
| Water-absorbing quality | mg | <3 |
| Heat distortion temperature | ºC | ≥240 |
| Bending strength | MPa | 150~180 |
| Compressive strength | MPa | >140 |
| Glass fiber content | % | 25±2 |

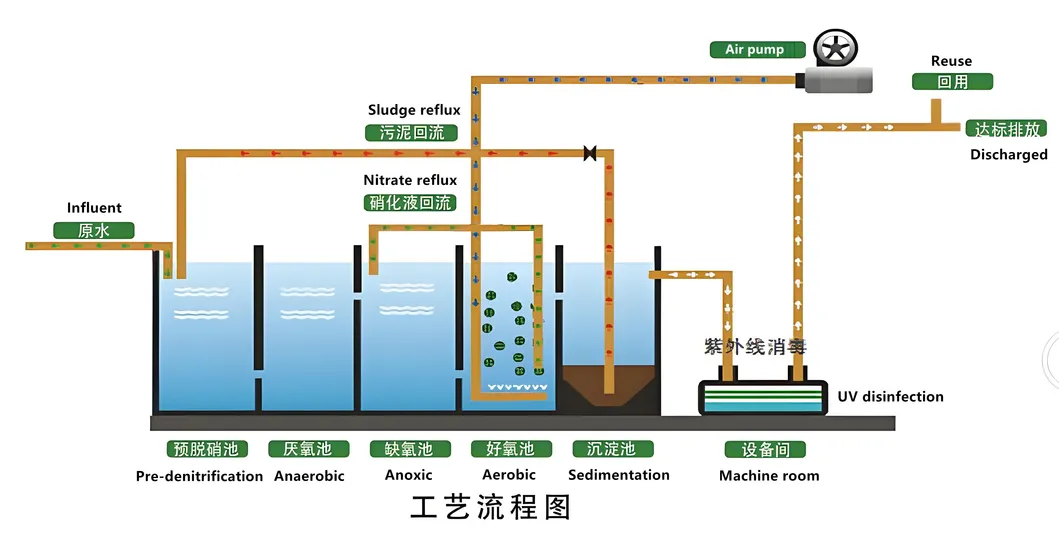

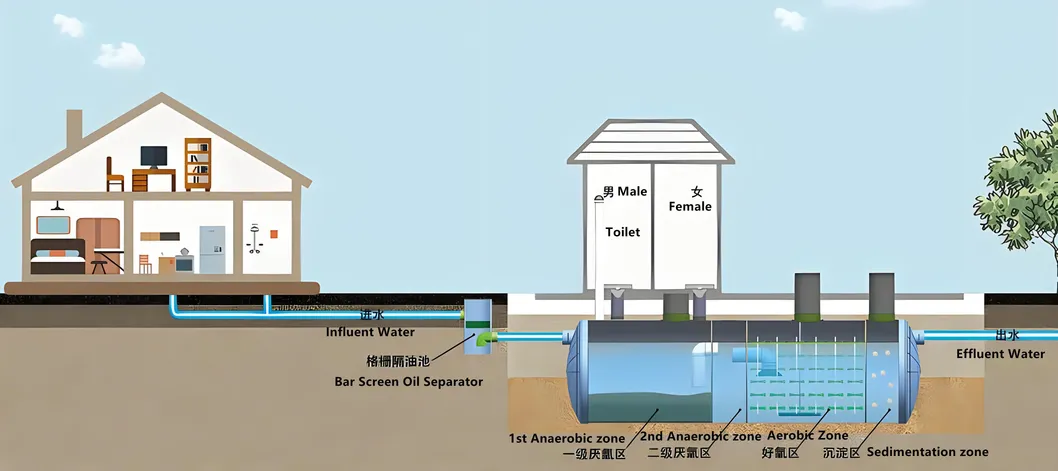

The system utilizes the A2/O process (Anaerobic-Anoxic-Aerobic) to ensure the removal of COD, ammonia nitrogen, and total phosphorus. Microorganisms grow on spherical filler media, allowing for stable operation and resistance to shock loads.
Specially developed BG series functional microorganisms target pollutants like nitrogen, phosphorus, and oil. These strains are taken from the environment and optimized for ecological restoration.
| Agent Type | Function | Application |
|---|---|---|
| Denitrifying Agent | Removes nitrogen from water bodies | Domestic sewage, polluted rivers/lakes |
| Polyphosphate Agent | Removes phosphorus from water bodies | Eutrophic water restoration |
| Oil Removal Agent | Degreasing microorganisms | Tourism and oily wastewater |
| Purification Tank | Details Specification | ||
|---|---|---|---|
| Capacity | 5m³/d | 2m³/d | 1m³/d |
| Size | 242*201*200cm | 213*115*165cm | 240*130*140cm |
| Weight | 520kg | 200kg | 180kg |
| Thickness | 7mm | 6-7mm | 7mm |
