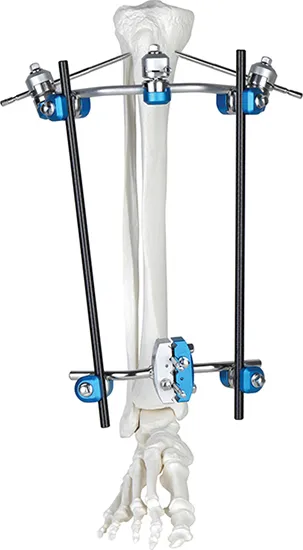

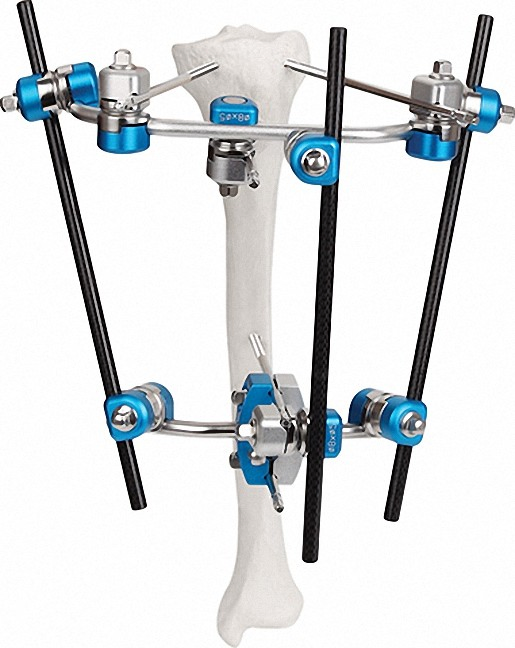

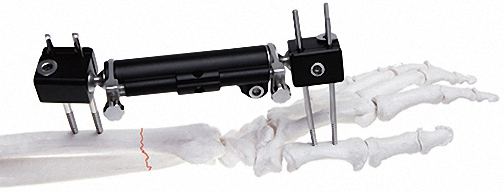

Titanium Alloy Bone Fixation System, Premium White & Black

1 / 5

Titanium Alloy Bone Fixation System, Premium White & Black

Customization:	Available
Application:	Orthopedic, Neurosurgery, Microsurgery
Material:	Steel

Send Inquiry

Product Description

Basic Information

Model NO.

External Fixation

Feature

Reusable

Certification

CE, ISO13485

Color

White & Black

Usage

Bone Fixation

Material Type

Titanium Alloy & Stainless Steel

Name

External Fixator

Transport Package

Box

Specification

50*50*50CM

Origin

China

HS Code

90211000

Production Capacity

500,000 Pieces/Year

Product Description

External Fixator -- The Pinnacle of Modular Fixation Systems: Elevate your surgical practices with a state-of-the-art solution that embodies innovation and excellence.

⚙️ Groundbreaking Technology: Engineered for seamless interaction and superior efficiency with user-friendly operation.

📍 Precision Positioning: Facilitates independent arrangement of bone screws for both proximal and distal fracture management.

⚡ Snap-Fit Design: Ensures streamlined and time-efficient surgical procedures.

🔬 Advanced Materials: Enhances fracture visualization using premium medical aluminum and carbon fiber.

🛡️ Unparalleled Stability: Provides steadfast performance and flexibility for diverse medical needs.

📦 Compact Frame: Space-saving design for ease of handling, use, and transport.

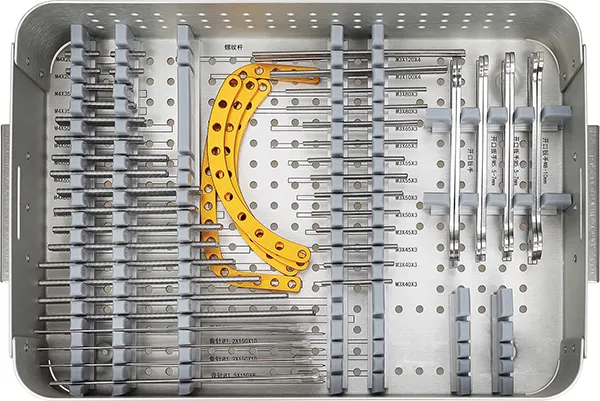

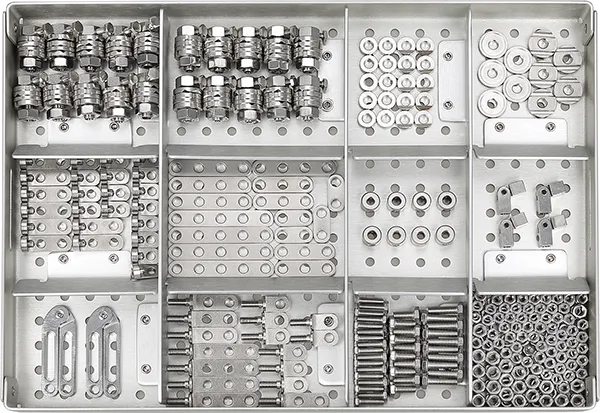

Component Name	Specification	Quantity

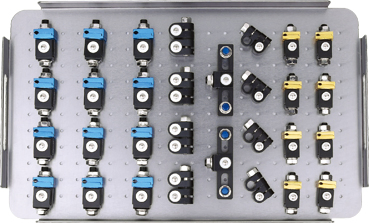

Independent Coupling	φ6φ14(1.5-2.0) / φ6φ14(1.5)	10 / 10
Needle Clip	φ4φ9 (φ1.0) / φ4φ9 (φ1.5)	5 / 5
Cone Washer	φ4φ9 / φ4φ14	10 / 5
Double Groove Needle Clamp	φ4*φ14(2.0-2.5)	5
Post With Threaded Post	φ415(1 Hole)M4 / φ425(2 Hole)M4	8 / 8
Connection Plate	φ420 (2 Hole) to φ450 (5 Hole)	4 each
Fixator(Hinge)	M4*20mm	4
Bolts	M312 / M410 / M4*14	17 / 10 / 10
Hex Nut	M3 / M4	90 / 90
1/3 Ring / U Ring	10 Hole / 21 Hole	1 / 1
Bone Screws	1.0150 / 1.2150 / 1.5*150	20 / 20 / 8

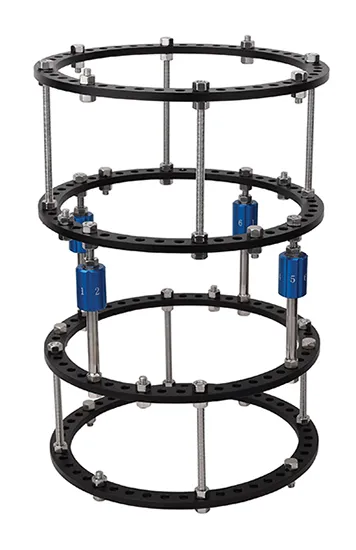

Lower Limbs Lengthening External Fixator

Used For Tibia Femur

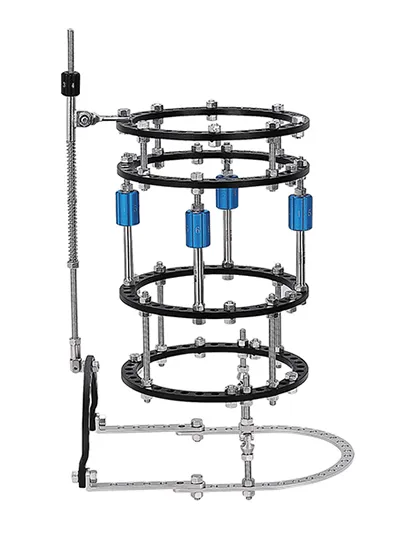

Orthopedic External Fixator

Used For Humeral & Tibial Lateral Epicondyle

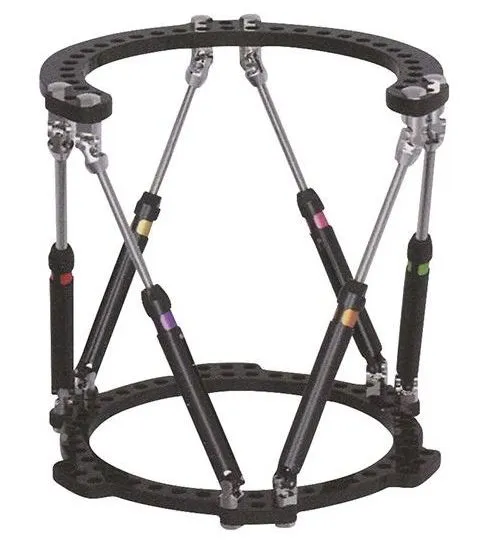

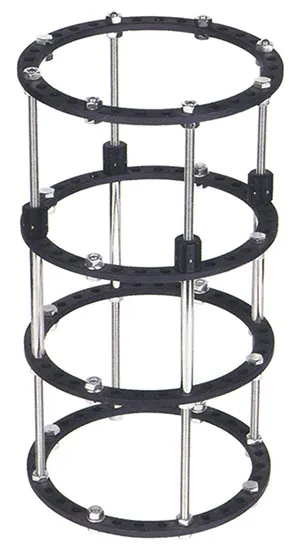

Ring Fixator (Tibia Femur)

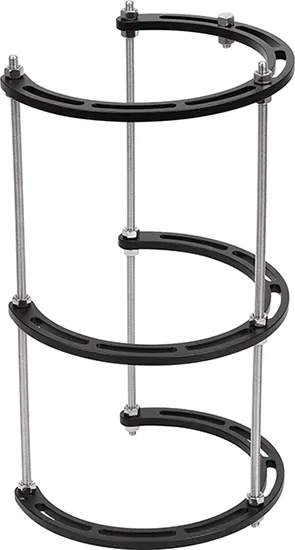

2/3 Ring Fixator (Tibia Femur)

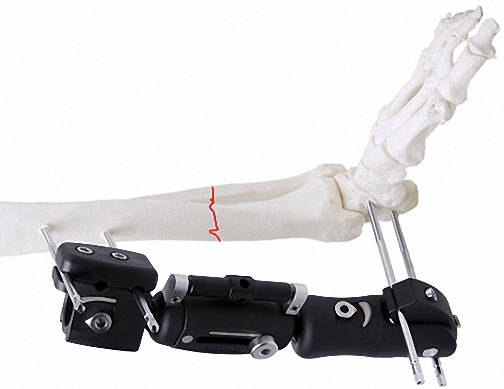

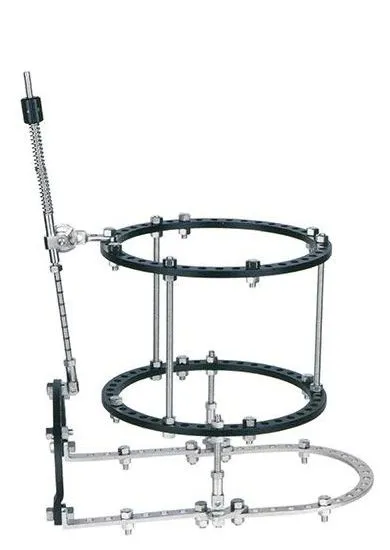

Ankle Joint Fixator (Equinus)

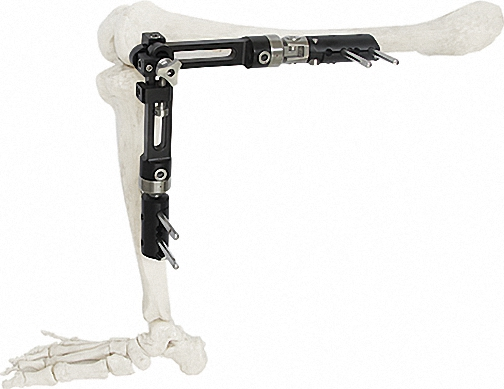

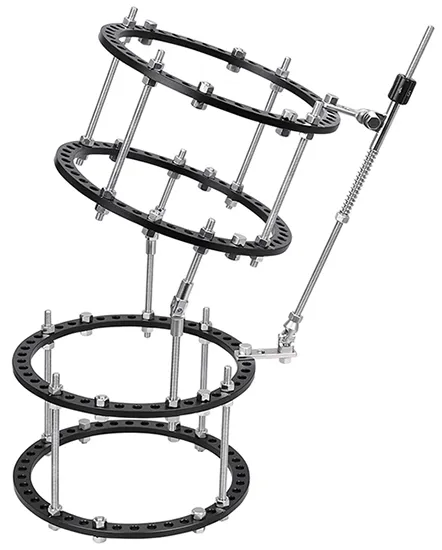

Knee Joint Fixator

Modular Ring System

Frequently Asked Questions

❓ What materials are used in this external fixator?

The system is constructed from high-grade Titanium Alloy and Stainless Steel, with specific components using medical-grade aluminum and carbon fiber for better X-ray visualization.

❓ Is the external fixation system reusable?

Yes, the system is designed to be reusable after proper sterilization and inspection, meeting CE and ISO13485 standards.

❓ What types of fractures can this system manage?

It is ideal for complex fractures, including proximal and distal management, limb lengthening, and cases involving significant soft tissue loss.

❓ What is the advantage of the snap-fit design?

The snap-fit design allows for rapid assembly during surgery, significantly reducing the duration of the procedure and improving surgical workflow.

❓ Does the system allow for post-operative adjustments?

Yes, the modular design and independent coupling allow for high flexibility in screw arrangement and adjustment to cater to specific clinical recovery needs.

❓ What certifications does the product hold?

The external fixator is fully certified with CE and ISO13485, ensuring it meets international medical device safety and quality standards.
