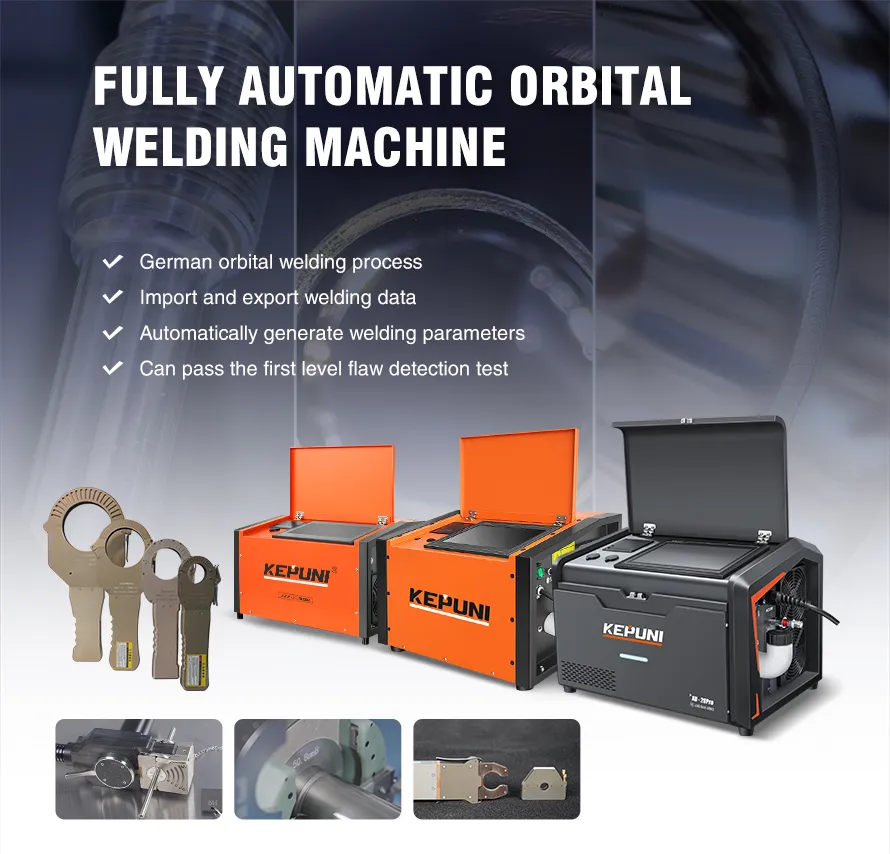

Automatic Orbital Welding Machine

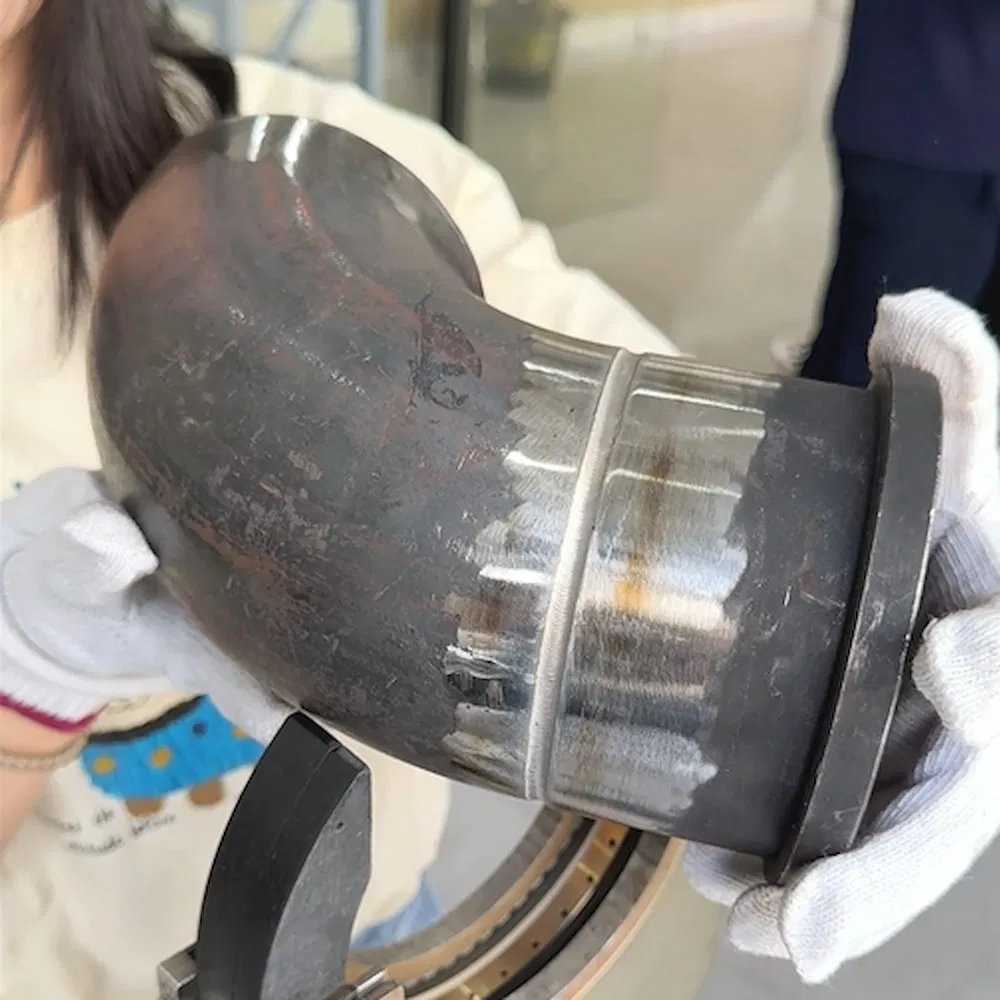

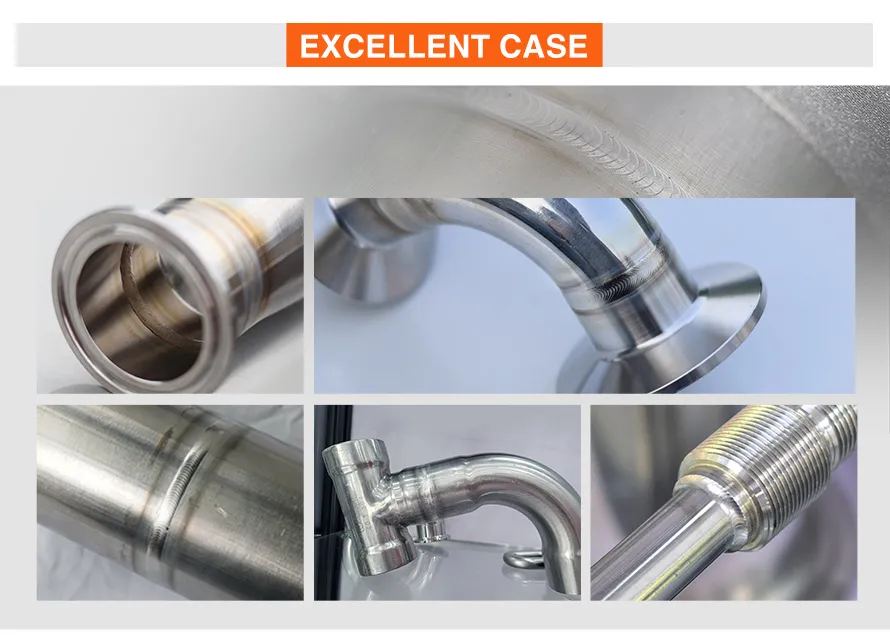

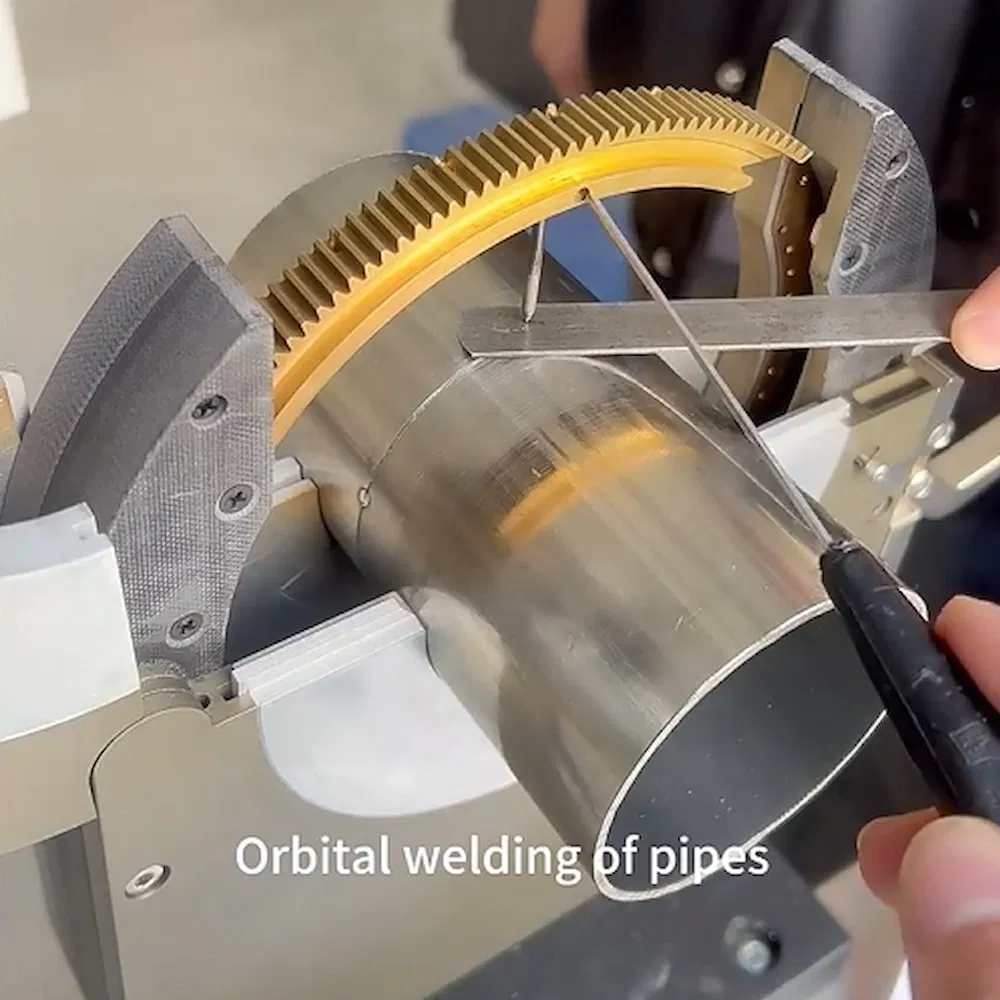

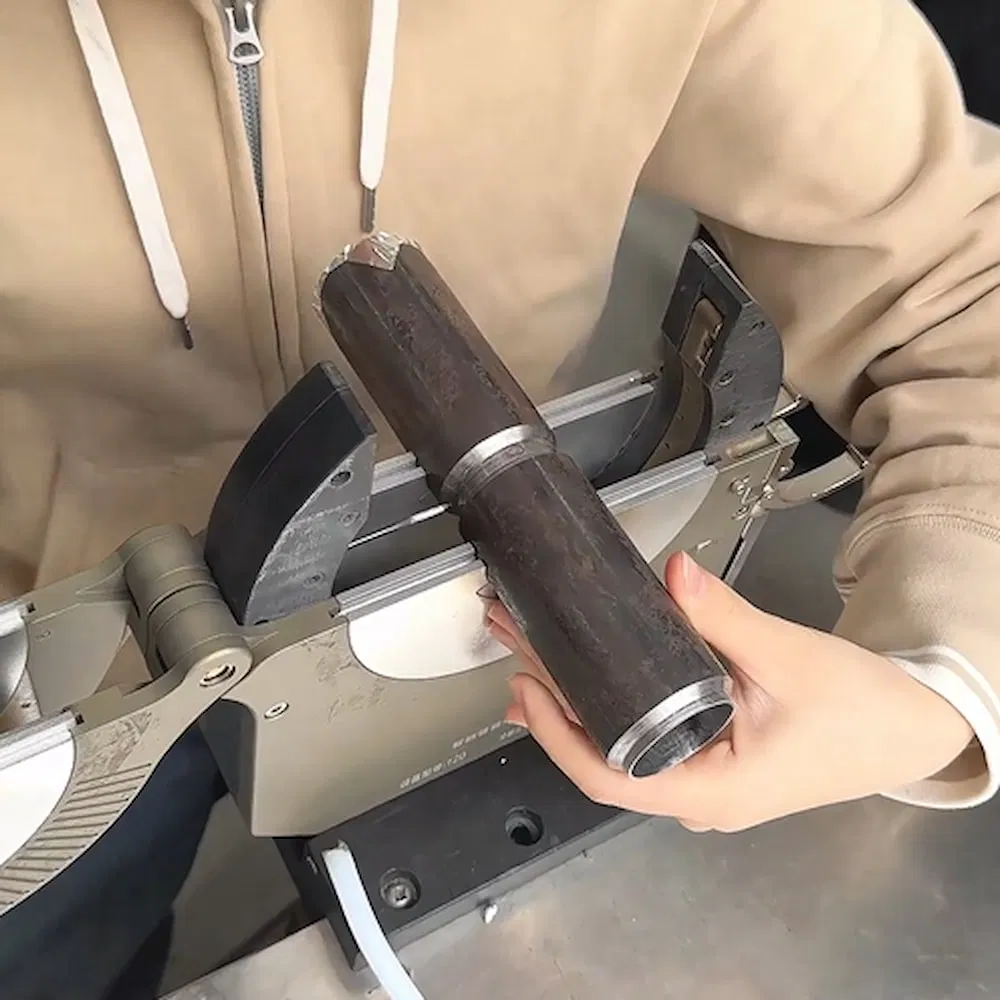

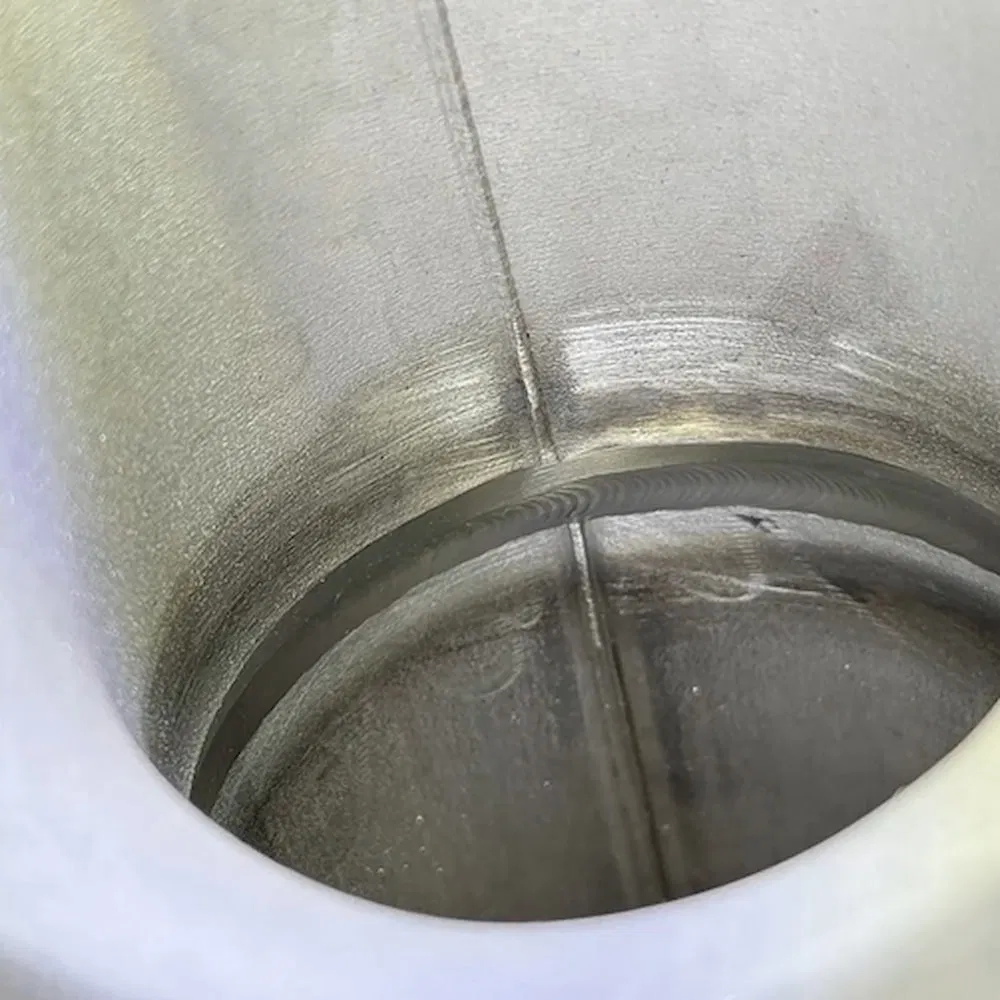

The fully automatic orbital welding machine is specially used for welding the interfaces of pipe fittings and accessories. It adopts German orbital welding technology and has a high welding qualification rate. It is suitable for many industries such as food and medicine, semiconductors, laboratories, water treatment, heat exchangers, petrochemicals, etc.
Key Upgrades vs. XD-20W

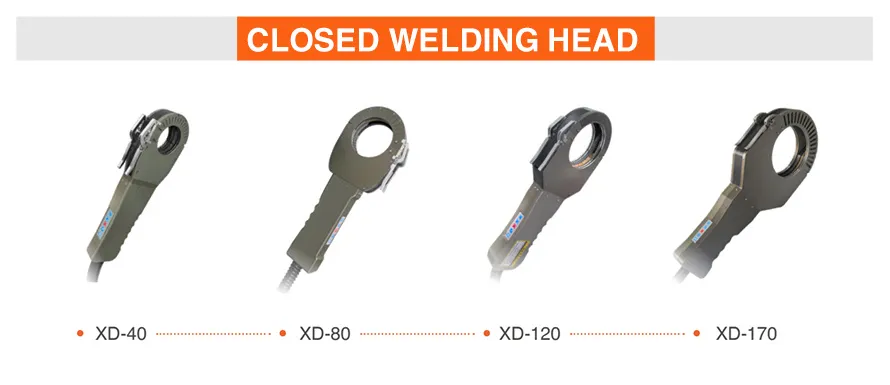

| Model | XD-40 | XD-80 | XD-120 | XD-170 |
|---|---|---|---|---|
| Weldable materials | Carbon steel / stainless steel / titanium alloy, etc. | |||
| Welding pipe diameter (mm) | 6.35-38.1 | 10-76.2 | 19-114.3 | 38.1-168 |
| Wall thickness range (mm) | 0.5-2.5 | 0.5-3 | 0.5-3 | 0.5-3 |
| Rotation speed (rpm) | 0.16-2.8 | 0.1-1.8 | 0.1-1.8 | 0.1-1.8 |
| Weight (kg) | 3.5 | 5 | 6.5 | 9.5 |

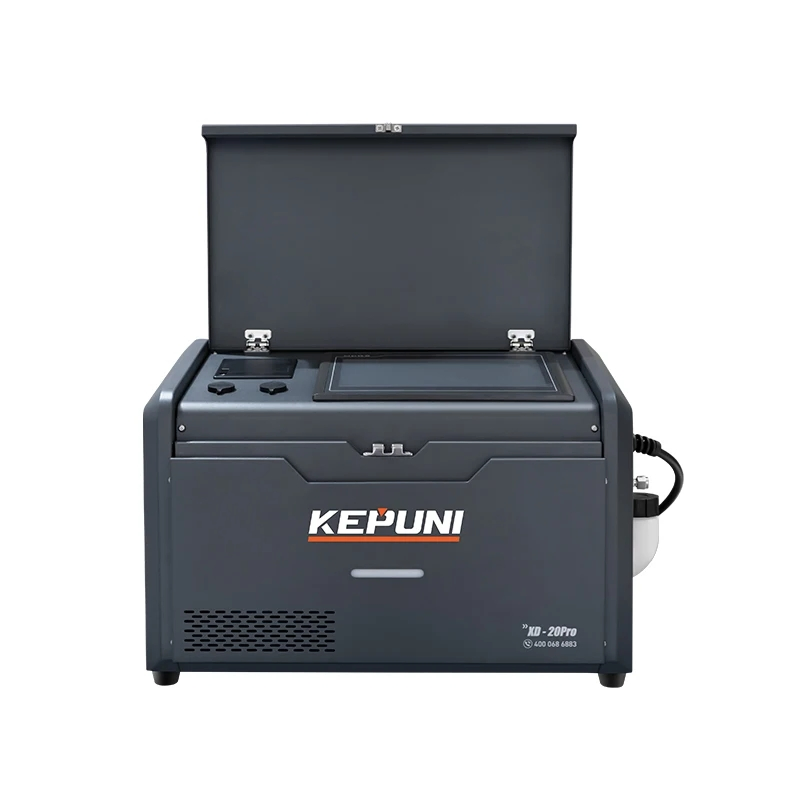

| Model | XD-20PRO | XD-20W | XD-PD200 |
|---|---|---|---|
| Duty cycle | 200A 60% / 155A 100% | ||
| Welding current | 5-200A | ||
| Programmable memory | 600 PIECE | 200 PIECE | 200 PIECE |
| Input voltage | AC220V ±10% or AC90-265V 50Hz/60Hz | ||
| Machine size | 550*360*360mm | 555*360*360mm | 475*355*300mm |

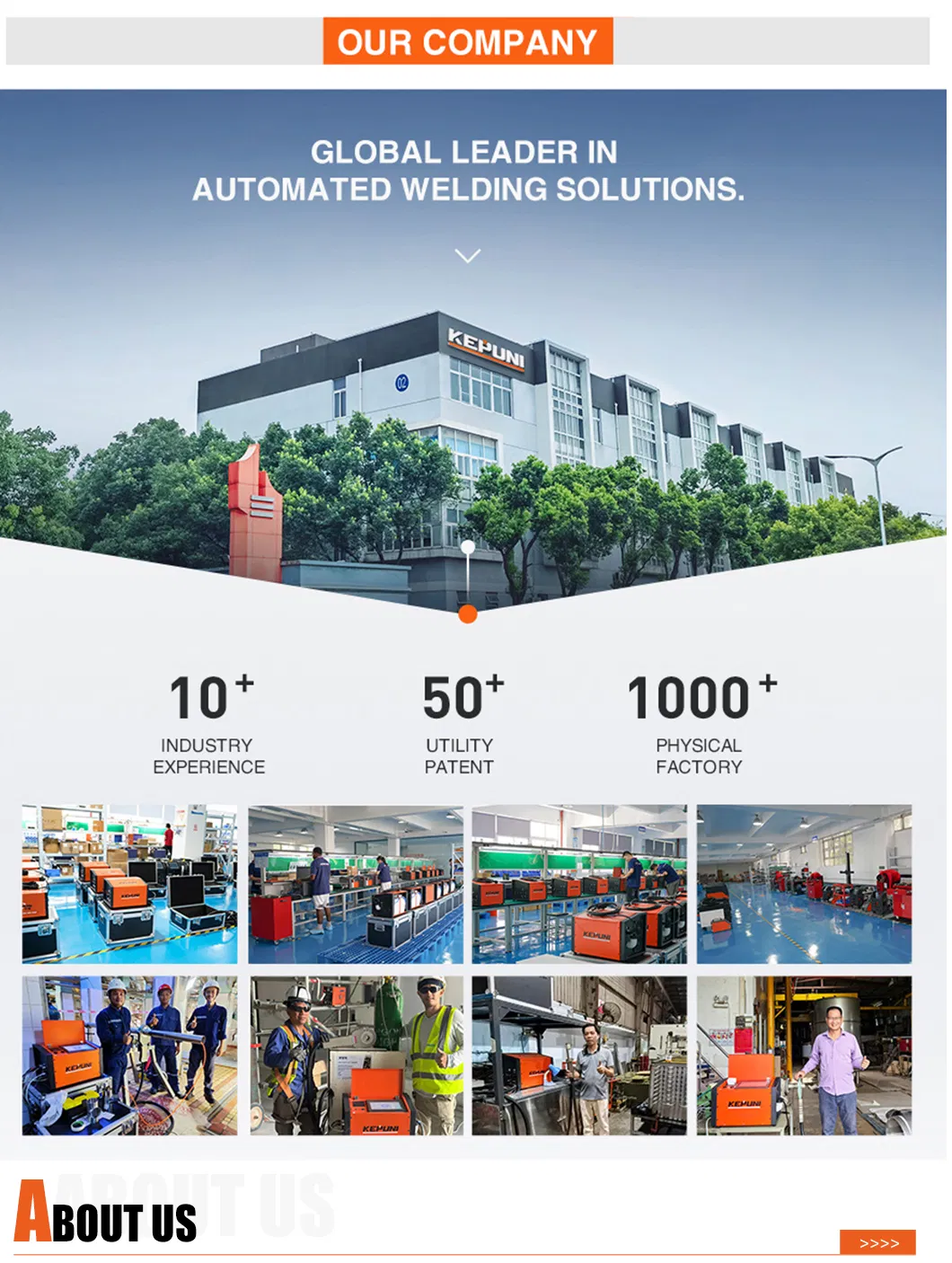

As a leading company in the automated welding field, we have been deeply engaged in the industry for over a decade. We have earned prestigious certifications such as "National High-tech Enterprise" for outstanding technological innovation.
Our integrated industrial ecosystem encompasses R&D innovation, intelligent manufacturing, and technical services. We specialize in all-position orbital welders, tube-to-sheet welders, automatic girth welders, and precision cold welders, providing comprehensive solutions for global industrial partners.
