Stainless Steel Humeral Shaft Fixation System

1 / 5

Stainless Steel Humeral Shaft Fixation System

Customization:	Available
Application:	Orthopedic, Neurosurgery, Microsurgery
Material:	Steel

Send Inquiry

Product Description

Basic Specifications

Model NO.

External Fixation

Feature

Reusable

Certification

CE, ISO13485

Color

White & Black

Usage

Bone Fixation

Material Type

Titanium Alloy & Stainless Steel

Name

External Fixator

Package

Box

Specification

50*50*50CM

Production

500,000 Pieces/Year

Product Overview

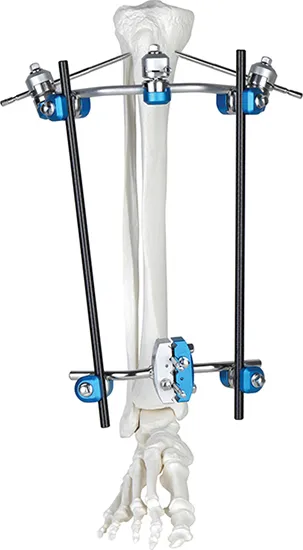

External Fixator - Modular Fixation External Fixation System

Key Features:

Advanced technology and user-friendly operation.

Independent arrangement of bone screws for proximal and distal fractures.

Snap-fit design for faster procedures and easier operation.

High-quality medical-grade aluminum and carbon fiber for enhanced visualization.

Optimal stability and flexibility in a compact frame design.

Efficiently addresses complex fractures and soft tissue loss.

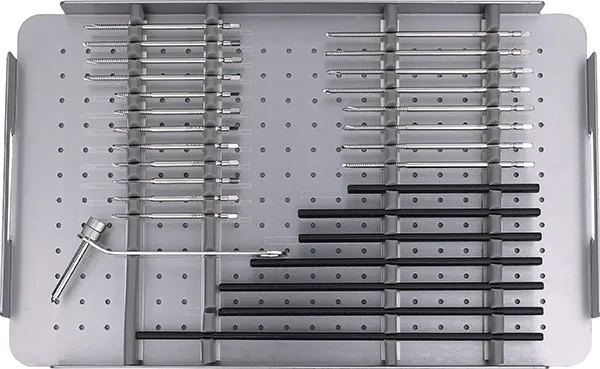

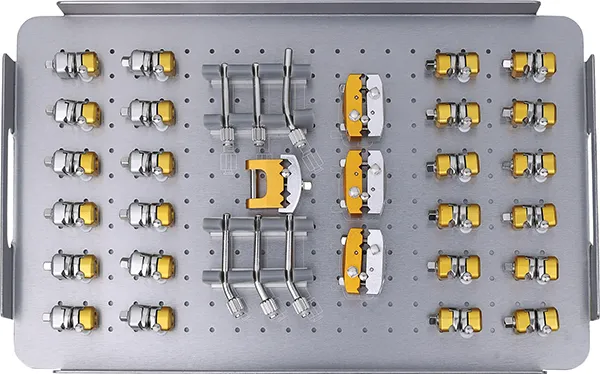

Product Components Display

Technical Specifications & Parts List

Description	Specification	Qty
Pin To Rod Coupling	φ5/4	12
Rod To Rod Coupling	φ5/5	12
4-Hole Pin Clamp	φ5/3-4	3
Peri-articular Pin Clamp	φ5/3-4	1
Straight Post	φ5	2
30° Post	φ5	4
Self Drilling/Self Tapping Bone Screws	φ4*130 / 120 / 100 / 80	4 each
Carbon Fibre Rod	φ5*250 / 200 / 180 / 150 / 120	Various

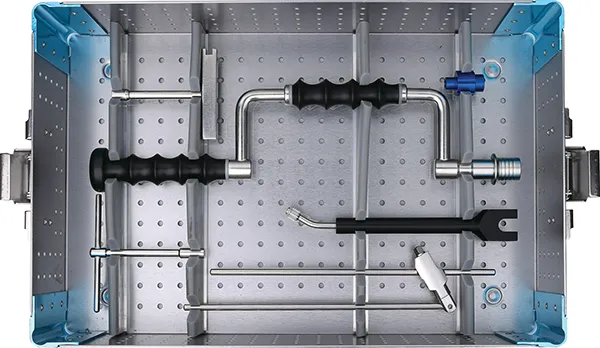

Instrument Set (Wrench, Drill, Driver)	Standard	1 Set

Modular Fixator Applications

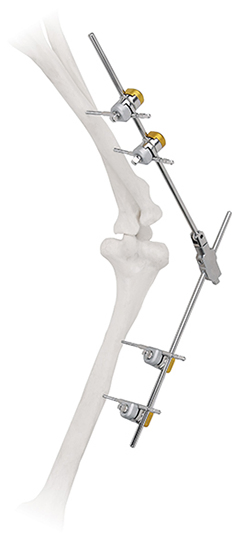

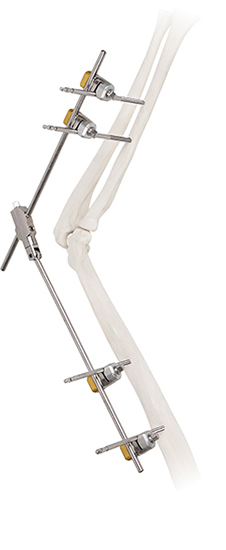

Elbow Joint Fixator

Elbow Joint Mobilizer φ5	1 Piece
Pin To Rod Coupling φ5/4	4 Pieces
Self Drilling Screws 4*120mm	4 Pieces
Application	Used For Elbow Joint Fracture

Ulna & Radius External Fixator

Rod To Rod Coupling φ5/5	4 Pieces
4-Hole Pin Clamp φ5/3-4	2 Pieces
Carbon Fibre Rod φ5*200	2 Pieces
Application	Used For Forearm Fractures

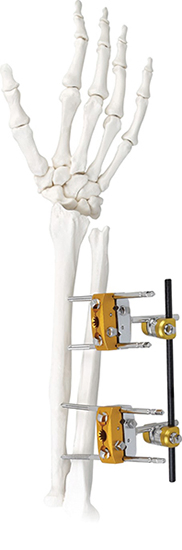

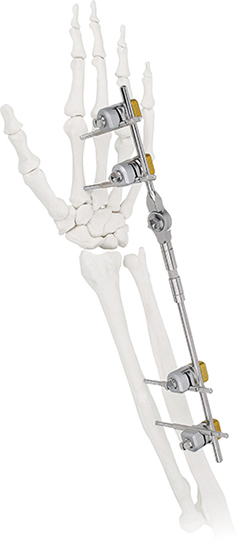

Wrist Joint Fixator

Wrist Joint Mobilizer φ5	1 Piece
Pin To Rod Coupling φ5/4	4 Pieces
Bone Screws 3*100mm	4 Pieces
Application	Used For Wrist Joint Fractures

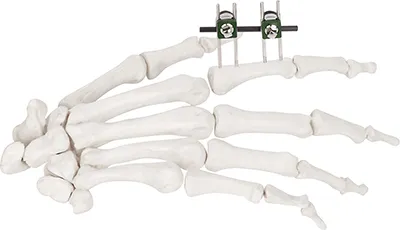

Mini-Fixator (Finger & Palm)

Pin To Rod Coupling φ3/2	2 Pieces
Carbon Fibre Rod 3*80	1 Piece
Bone Screws 3*80mm	4 Pieces
Application	Used For Finger and Palm Fractures

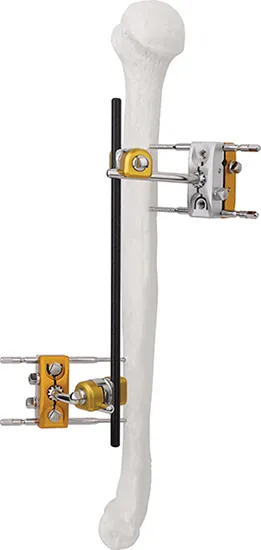

Humeral Shaft External Fixator

Rod To Rod Coupling φ5/5	2 Pieces
4-Hole Pin Clamp φ5/3-4	2 Pieces
30° Post φ5	2 Pieces
Application	Used For Humeral Shaft Fractures

Frequently Asked Questions

What materials are the external fixators made of?

The system utilizes high-quality Titanium Alloy and Stainless Steel for bone screws and connectors, while the rods are made from medical-grade Carbon Fiber for lightweight strength and better X-ray visualization.

Are the modular components reusable?

Yes, the external fixation system is designed to be reusable after proper sterilization, following standard medical protocols.

What certifications does this medical device hold?

Our external fixation systems are fully certified with CE and ISO13485 standards, ensuring compliance with international medical safety requirements.

Can this system handle complex multi-segment fractures?

Absolutely. The modular design and independent bone screw arrangement allow for high flexibility, making it ideal for complex fractures and cases involving significant soft tissue loss.

Is the snap-fit design stable enough for long-term fixation?

Yes, the snap-fit design is specifically engineered to combine ease of operation with high mechanical stability, ensuring reliable fixation throughout the healing process.
